DV15 D2848 Engine Parts Piston 65.02501-0708 65.02501-0702

Basic Information

Model:	DV15 D2848 DV15T
Diameter	128.0 mm
Brand:	AEENGINEPARTS
Certification:	ISO9001/TS16949
Place of Origin:	GuangDong, China
MOQ:	10 Sets
Price:	20-25 USD/PCS
Packaging Details:	Carton/Wooden Box/As Customer Requirements
Delivery Time:	3-5 days for stocks, 30-45 days for production
Payment Terms:	T/T; Western Union, Paypal
Supply Ability:	5000PCS/Month
Warranty:	10,000 Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:	Provided

Contact Now

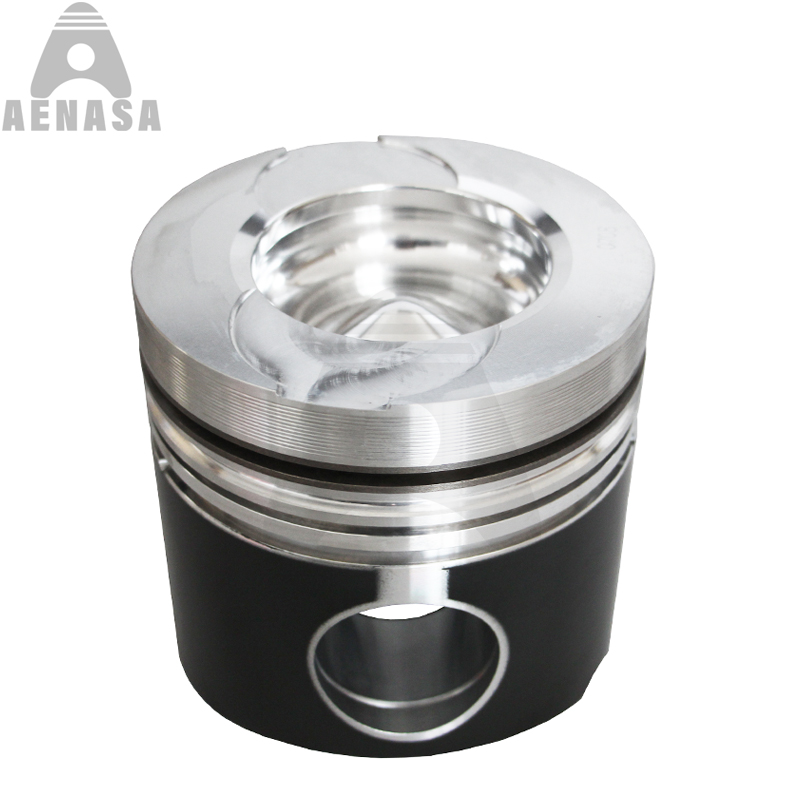

Doosan DV15 D2848 DV15T Diesel Engine Spare Parts Piston Kit Set

Engine Model:	DV15 D2848 DV15T
Engine Type:	Diesel Engine
Bore Diamter:	128.0 mm
Material:	AL108/109
Surface Treatment:	Sn
Alfin:	Yes
Oil Gallery:	Yes/No
Steel Pieces：	Yes
Oem Part Number:	65.02501-0708 65.02501-0702
Unit Weight(kg):	1.80 kg

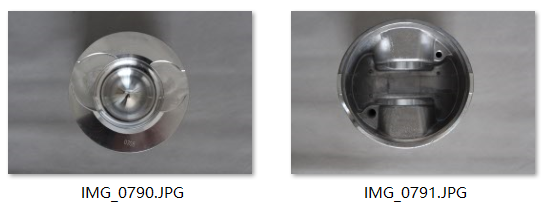

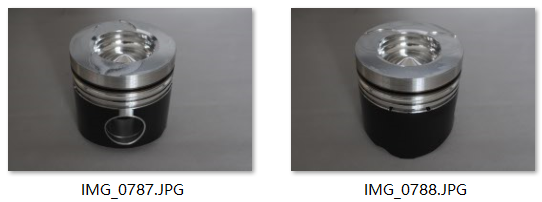

DV15 D2848 DV15T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS

DV15 D2848 DV15T LINER KIT :

CYLINDER LINER: 65.01201-0049A

PISTON KIT: 65.02501-0708 65.02501-0702

PISTON RING SET: 65.02503-8255

Rod Bushing: 65.02405-1008

Liner O-RING: Non

AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

DV15 D2848 DV15T DIESEL ENGINE SPARE PARTS LIST

D2848 Cylinder Block

D2848 Cylinder Head

D2848 Cylinder Liner

D2848 Crankshaft & Gear

D2848 Camshaft & Gear

D2848 Connecting Rod

D2848 Connecting Rod Bushing

D2848 Crankshaft Metal /Main Bearing

D2848 Con Rod Metal/ Con Rod Bearing

D2848 Piston & Pin & Lock Ring

D2848 Piston Ring Set

D2848 Overhaul Full Complete Gasket Kit Set

D2848 Head / Upper Gasket Kit

D2848 Block / Lower / Bottom Gasket kit

D2848 Cylinder Head gasket

D2848 Rod / Pin Bushing

D2848 Camshaft Bushing / Bearing

D2848 Thrust Wahser / Bearing

D2848 Water Pump

D2848 Oil Pump

D2848 Valve inlet / exhaust

D2848 Valve Seat in / ex

D2848 Valve Guide

D2848 Valve Tapped , Push Rod, Valve Lock

D2848 Valve Spring, Seat

D2848 Alternator

D2848 Stater

D2848 Turbocharger

D2848 Oil Cooler Core, Cover

D2848 Injector Sleeve

D2848 Piston Cooling Nollze

D2848 Rocker Arm

D2848 Manifold In & Ex

D2848 Flywheel

D2848 Con rod Bolt. Head Bolt

PART No.
65.01101-6819C 65.01101-6806C
65.03101-6045 assy 65.03101-1039 only
65.02101-7397A 65.02115-0066 Gear
65.04401-0487 Only 65.04401-6190 Assy
65.02401-6019 ASSY 65.02401-0012 ONLY
65.09100-7087 65.09100-7088
65.06500-6251B
65.05100-6188
65.05604-0017
65.05601-7135

65.05605-0025A
65.01110-6522 std 65.01110-6523 0.25 65.01110-6524 0.5
65.02410-0100 U 65.02410-0200 L std 65.02410-0101 U 65.02410-0201 L 0.25 65.02410-0102 U 65.02410-0202 L 0.5
65.01111-6539
65.01201-0049A
65.96501-0059 16Pc 65.96501-0082 8Pc 65.96501-0082 8Pc 65.96501-0078 8Pc
65.02501-0771C(RING 65.02503-8255 Oil=4)
65.02501-0678(ring 65.02503-8251 O=5.2 )
65.02501-0770 (ring 65.02503-8252 O=5 )
65.02501-0708 65.02501-0702 65.02501-0774
65.02502-0081
65.02503-0672 TOP 65.02503-0108 2ND 65.02503-0109 OIL
65.99601-DV15T 无号
65.99605-DV15T 无号
65.03901-0015
65.04101-0375B
65.04101-0367B
65.03203-0242
65.03203-0184
65.03201-1040
65.03201-1040
65.04102-0084A
65.04102-0083A
65.04301-0079
51.04104-0023
65.04302-0026
65.04201-1003
65.02405-1008
65.04410-0018 1Pc 65.04410-0078 4Pc
65.26201-7058A

Doosan Daewoo Diesel Engine Piston Kit

The following popular Doosan Daewoo engine replacement parts also can be provided too.

1: DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2: DL06 DL08 DV11 DV15 D2848 8CYL D2848 10CYL

3: D18 D24 D34 DP086 DP126 DP158 DP180 DP222 P086TI P126TI P158 P180

FAQ

Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.

Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...

Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；

Accepted Payment Currency:USD,CNY;RUBLES

Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Spanish,Portuguese,Russian

Tag:

Bore Diameter:	128.0 mm
No. of Cyl:	V8 V10
Total Length:	128.2 mm
Comp Height:	STD mm
Chamber Dia:	68.2 mm
Ring Groove:	3.3HK+3+4 mm
Pin Size:	46*105 mm

Material:	AL108/AL109
Package:	6 PCS/CTN
Warranty:	1-3 years
Stock:	Yes
Shipping	Air/Sea/Land
Part No:	65.02501-0702
Oem No.	65.02501-0708
