D1146 Engine Spare Parts Piston 65.02501-0074 65.02501-0172 65.02501-0779

Basic Information
Model:D1146 D1146T
Diameter111.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:13-15 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:111.0 mm
No. of   Cyl: L6
Total Length:121.3 mm
Comp Height:72.8 mm
Chamber Dia:60.0 mm
Ring Groove:3.3DK+3.0+4.0 mm
Pin Size:42*95 mm


Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:65.02501-0074
Oem No.65.02501-0172

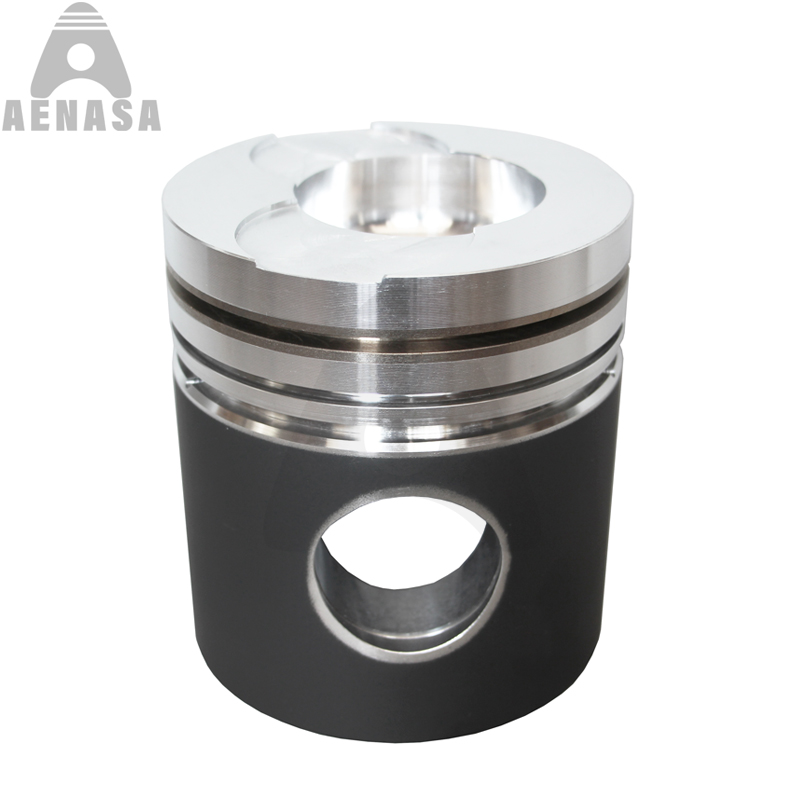

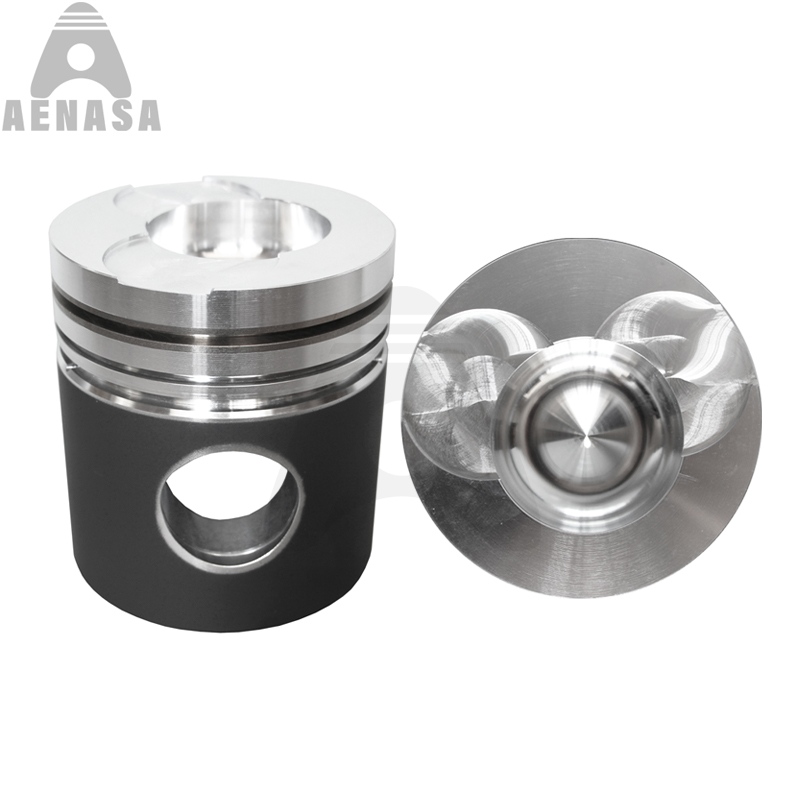

Doosan D1146 D1146T Diesel Engine Spare Parts Piston Kit Set


Engine   Model:D1146 D1146T
Engine Type:Diesel Engine
Bore Diamter:111.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

65.02501-0074 65.02501-0172 65.02501-0779

Unit Weight(kg): 1.80 kg

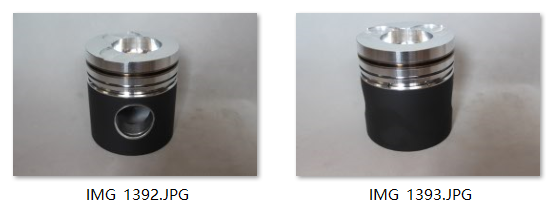

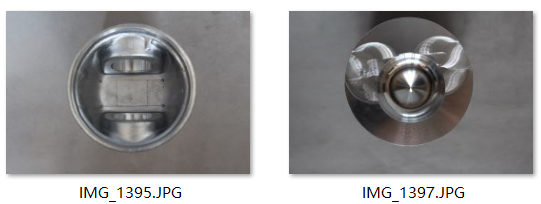

D1146 D1146T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS




D1146 D1146T LINER KIT :


CYLINDER LINER:  65.01201-0050  150117-00028 65.01201-0020  65.01201-0024 65.01201-7024

PISTON KIT: 65.02501-0074 65.02501-0172 65.02501-0779

PISTON RING SET: 65.02503-8146  401004-00101

Rod Bushing:   65.02405-0014 65.02405-0015B

Liner O-RING:  Non


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

D1146 D1146T DIESEL ENGINE SPARE PARTS LIST


D1146  Cylinder Block

D1146  Cylinder Head

D1146  Cylinder Liner

D1146  Crankshaft  &  Gear

D1146  Camshaft & Gear

D1146  Connecting Rod

D1146  Connecting Rod Bushing

D1146  Crankshaft Metal /Main Bearing

D1146  Con Rod Metal/ Con Rod Bearing

D1146  Piston & Pin & Lock Ring

D1146  Piston Ring Set

D1146  Overhaul Full Complete Gasket Kit Set

D1146  Head / Upper Gasket Kit

D1146  Block / Lower / Bottom Gasket kit

D1146  Cylinder Head gasket

D1146  Rod / Pin Bushing

D1146  Camshaft Bushing / Bearing

D1146  Thrust Wahser / Bearing

D1146  Water Pump

D1146  Oil Pump

D1146  Valve inlet / exhaust

D1146  Valve Seat in / ex

D1146  Valve Guide

D1146  Valve Tapped , Push Rod, Valve Lock

D1146  Valve Spring,  Seat

D1146  Alternator

D1146  Stater

D1146  Turbocharger

D1146  Oil Cooler Core, Cover

D1146  Injector Sleeve

D1146  Piston Cooling Nollze

D1146  Rocker Arm

D1146  Manifold In & Ex

D1146  Flywheel

D1146  Con rod Bolt. Head Bolt


65.01101-6040E   65.01101-6040F 65.01101-6040N

65.03101-6495J   65.03101-6495M 65.03101-6495N 65.03101-0295P 65.03101-0295R 65.03101-0295S

65.02101-7540   65.02101-0056  65.02115-0040K Gear

65.04401-0014   65.04401-0014C 65.04501-0057 Gear

65.02401-6101D   65.02401-6101E assy  65.02401-0030   only  65.90020-0009C /D Bolt

65.09100-7038

65.06500-6145A




65.05604-5030

65.05606-5020

65.05601-7138  65.05601-7138A

65.05605-6006   65.05605-0028 65.06301-0160 65.96601-0029 06.01913-3112

65.01110-6351   STD65.01110-6352 0.2565.01110-6353 0.5
65.02410-0010  STD65.02410-0011  0.2565.02410-0012 0.5
65.01150-0015   2PCS  (UPPER)  STD
    65.01150-0016A 2PCS (LOWER)    STD
    65.01150-0019 2PCS (0.25)
    65.01150-0023A 2PCS (0.25)
    65.01150-0020 2PCS (0.50)
    65.01150-0024A 2PCS (0.50)


65.01201-0050

NON

65.02501-0785   65.02501-0203A

65.02501-0074   65.02501-0172 65.02501-0779

65.02501-0214

65.02501-0779

65.02502-0010   42X20X95mm ; 06.29020-0126 42X1.75mm

65.02503-8146   Assy 65.02503-0054  TOP 3.5mm
65.02503-0120 2ND 3.5mm
65.02503-0115 OIL  4.0mm


65.99601-D1146

65.99605-D1146

65.03901-0058   65.03901-0058A

65.04101-0041

65.04101-0042

65.03203-1029G

65.03203-1028D

65.03201-1011

65.03201-1011

65.04102-0007

65.04102-6002   EX
65.04102-0004 EX INNER
65.04102-0003 EX OUTER


65.04103-0009

65.04103-0013

65.04902-0009   65.04902-0013

65.04301-0005

65.04104-0006

65.04302-5010

65.04200-6025A   65.04200-6025D 65.04201-5013D    65.04201-5013E  65.04203-5009   SHAFT

65.02405-0015C

65.04410-0017  4 Pcs


Doosan Daewoo Diesel Engine Piston Kit




The following popular Doosan Daewoo  engine replacement parts also can be provided too.


1:  DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2:  DL06 DL08  DV11 DV15 D2848 8CYL D2848 10CYL

3:  D18 D24 D34 DP086 DP126 DP158 DP180  DP222 P086TI P126TI P158 P180


FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
