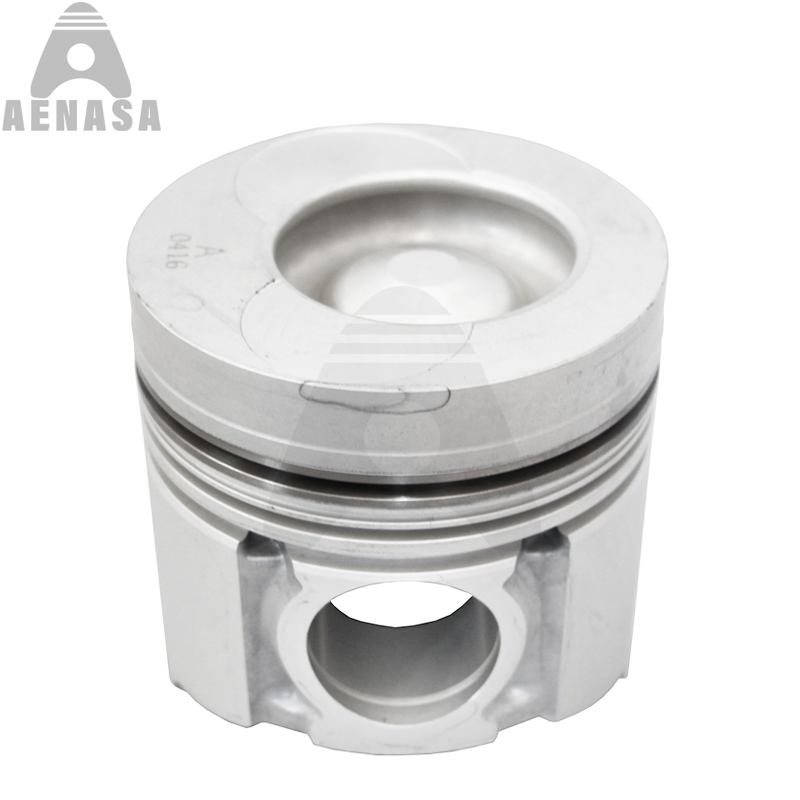

DB58 Engine Spare Parts Piston 65.02501-0416

Basic Information
Model:DB58 DB58T
Diameter102.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:10-12 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:102.0 mm
No. of   Cyl: L6
Total Length:98.0 mm
Comp Height:58.8 mm
Chamber Dia:56.0 mm
Ring Groove:3.0DK+2.5+4.0 mm
Pin Size:36*86.5 mm
Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:65.02501-0416
Oem No.65.02501-0440


Doosan DB58 DB58T Diesel Engine Spare Parts Piston Kit Set


Engine   Model:DB58 DB58T
Engine Type:Diesel Engine
Bore Diamter:102.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

65.02501-0280 65.02501-0561

Unit Weight(kg): 1.80 kg

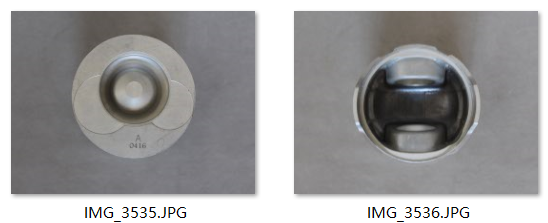

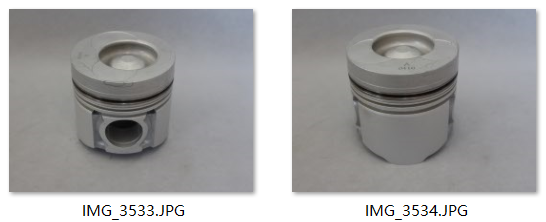

DB58 DB58T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS





DB58 DB58T LINER KIT :


CYLINDER LINER:  65.01201-0067 65.01201-0068 65.01201-0069 65.01201-0070 65.01201-0071

PISTON KIT:  65.02501-0416 65.02501-0417 65.02501-0418 65.02501-0440 65.02501-0443 65.02501-0444  65.02501-0445  130602-00636 130602-00636 130602-00635

PISTON RING SET: 65.02503-8058

Rod Bushing:   65.02405-0006

Liner O-RING:  Non


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

DB58 DB58T DIESEL ENGINE SPARE PARTS LIST


DB58  Cylinder Block

DB58  Cylinder Head

DB58  Cylinder Liner

DB58  Crankshaft  &  Gear

DB58  Camshaft & Gear

DB58  Connecting Rod

DB58  Connecting Rod Bushing

DB58  Crankshaft Metal /Main Bearing

DB58  Con Rod Metal/ Con Rod Bearing

DB58  Piston & Pin & Lock Ring

DB58  Piston Ring Set

DB58  Overhaul Full Complete Gasket Kit Set

DB58  Head / Upper Gasket Kit

DB58  Block / Lower / Bottom Gasket kit

DB58  Cylinder Head gasket

DB58  Rod / Pin Bushing

DB58  Camshaft Bushing / Bearing

DB58  Thrust Wahser / Bearing

DB58  Water Pump

DB58  Oil Pump

DB58  Valve inlet / exhaust

DB58  Valve Seat in / ex

DB58  Valve Guide

DB58  Valve Tapped , Push Rod, Valve Lock

DB58  Valve Spring,  Seat

DB58  Alternator

DB58  Stater

DB58  Turbocharger

DB58  Oil Cooler Core, Cover

DB58  Injector Sleeve

DB58  Piston Cooling Nollze

DB58  Rocker Arm

DB58  Manifold In & Ex

DB58  Flywheel

DB58  Con rod Bolt. Head Bolt

65.01101-6051L   65.01101-0030I

65.03101-6071B   65.03101-1043CBolt 65.90021-0002 18Pcs   65.90021-0003 6Pcs 65.90021-0004 2Pcs
65.02101-6018A   65.02115-0009 Gear

65.04401-0018B   65.04501-0004 Gear

150121-00270  150121-00270A 65.02401-6021 Assy   150121-00319 65.02401-0163D only 65.02411-0006A Bolt

65.09100-7040A

65.06500-6402B

65.05101-7025

65.05604-0013B

65.05606-5024

65.05601-7056B

65.05902A0005

65.01110-6090B  STD65.01110-6091B  0.25mm65.01110-6092B  0.5 mm
65.02410-6083B   STD 65.02410-6124B  0.125mm 65.02410-6125B  0.25mm
65.01150-6008

65.01201-0067   65.01201-0068 (1A) 65.01201-0069 (1B) 65.01201-0070 (2A) 65.01201-0071 (2B)

NON

65.02501-0450   65.02501-0453 65.02501-0454 65.02501-0455
65.02501-0561 65.02501-0562 65.02501-0563 65.02501-0280


65.02501-0416   65.02501-0417 65.02501-0418 65.02501-0440 65.02501-0443 65.02501-0444  65.02501-0445  130602-00636 130602-00636 130602-00635

65.02501-0152   65.02501-0153

65.02501-0195

65.02502-0082A   65.90815-0007 Lock Ring

65.02503-8058   Set
65.02503-0137 TOP
401004-00038 2ND
65.02503-0114 OIL


 65.99601-8053

65.99605-8033

65.03901-0055

65.04101-0047

65.04101-0025A

65.03203-1053

65.03203-1054

65.03201-1013A

65.03201-1013A

65.04102-0005

65.04102-0005

65.04103-0002

65.04103-0001B

65.04902-0015

65.04301-0009

65.04104-0001

65.04302-5006

65.04200-6019D   ROCER ASSY 65.04201-5002C ARM ASSY 65.04203-5008C SHAFT

65.02405-0006

65.04410-0006C  5 Pcs

65.26201-7076

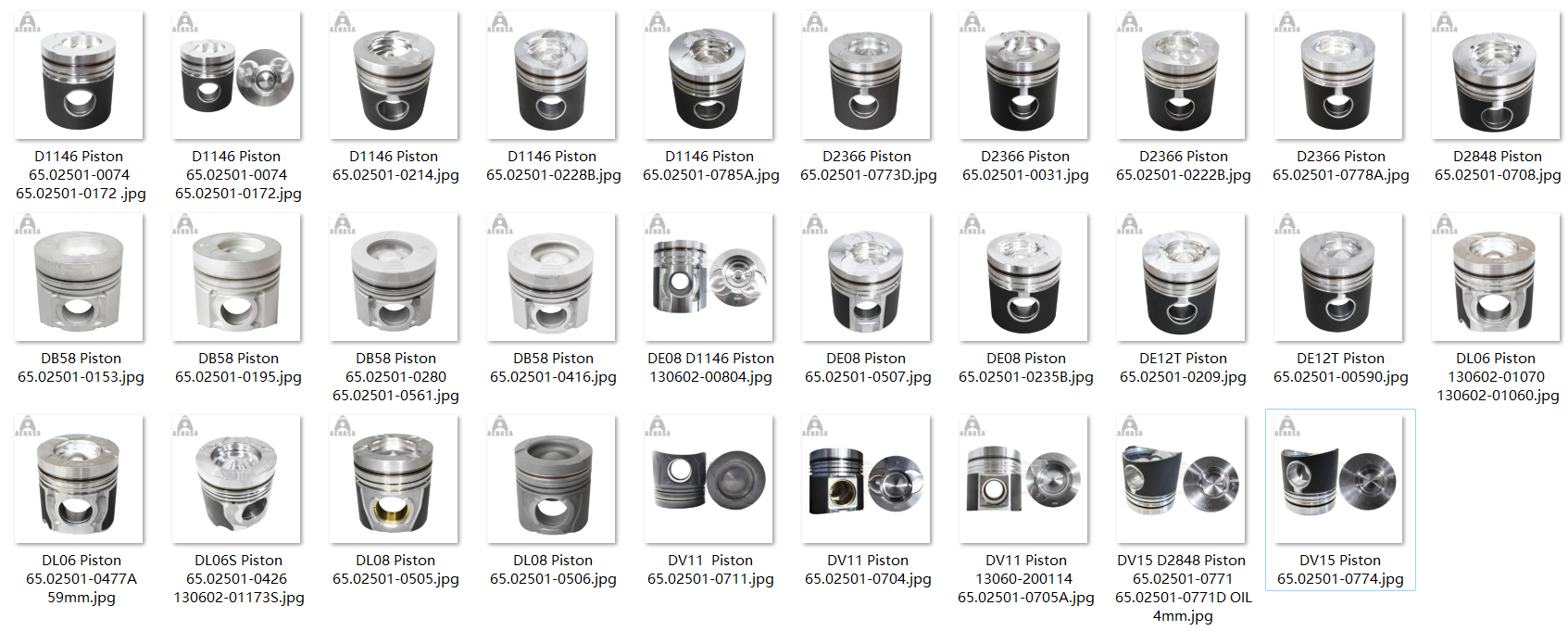

Doosan Daewoo Diesel Engine Piston Kit




The following popular Doosan Daewoo  engine replacement parts also can be provided too.


1:  DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2:  DL06 DL08  DV11 DV15 D2848 8CYL D2848 10CYL

3:  D18 D24 D34 DP086 DP126 DP158 DP180  DP222 P086TI P126TI P158 P180
