DV11 Engine Piston 65.02501-0711 65.02501-0710

Basic Information

Model:	DV11
Diameter	128.0 mm
Brand:	AEENGINEPARTS
Certification:	ISO9001/TS16949
Place of Origin:	GuangDong, China
MOQ:	10 Sets
Price:	20-25 USD/PCS
Packaging Details:	Carton/Wooden Box/As Customer Requirements
Delivery Time:	3-5 days for stocks, 30-45 days for production
Payment Terms:	T/T; Western Union, Paypal
Supply Ability:	5000PCS/Month
Warranty:	10,000 Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:	Provided

Contact Now

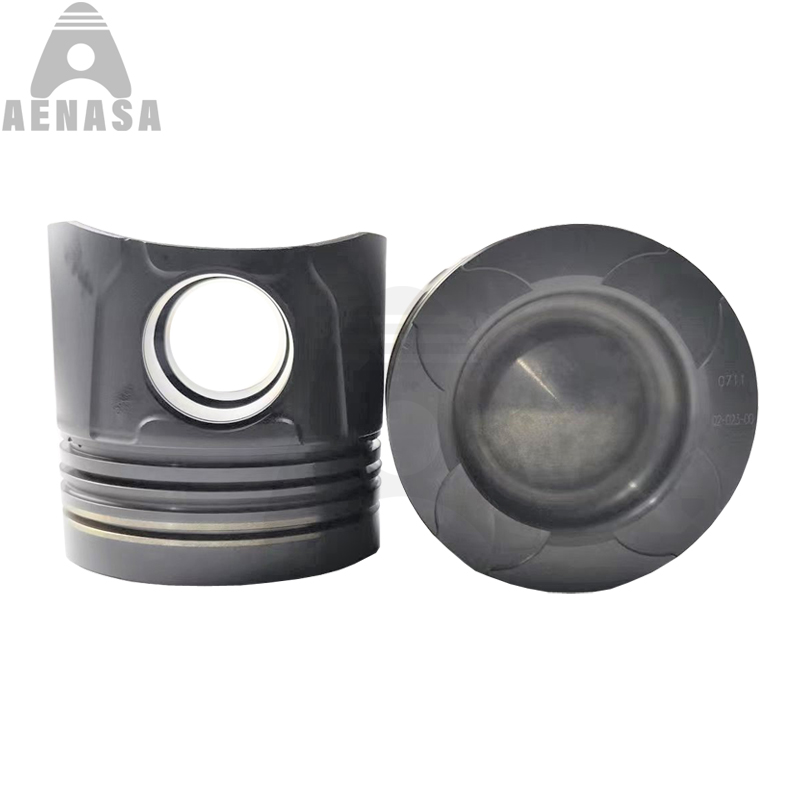

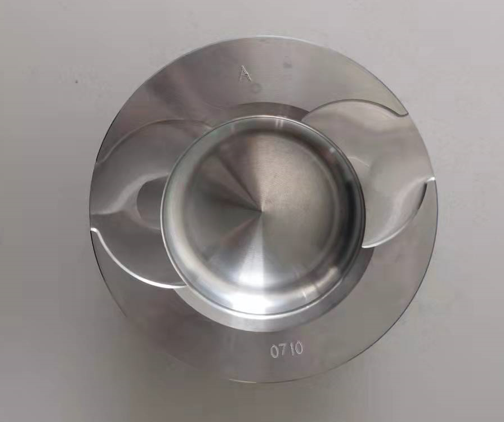

Doosan DV11 Diesel Engine Spare Parts Piston Kit Set

Engine Model:	DV11
Engine Type:	Diesel Engine
Bore Diamter:	128.0 mm
Material:	AL108/109
Surface Treatment:	Sn
Alfin:	Yes
Oil Gallery:	Yes/No
Steel Pieces：	Yes
Oem Part Number:	65.02501-0711 65.02501-0710
Unit Weight(kg):	1.80 kg

DV11 DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS

DV11 LINER KIT :

CYLINDER LINER: 65.01201-0073B

PISTON KIT: 65.02501-0711

PISTON RING SET: 401004-00022 65.02503-8051

Rod Bushing: 65.02405-0033

Liner O-RING: Non

AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

DV11 DIESEL ENGINE SPARE PARTS LIST

DV11 Cylinder Block

DV11 Cylinder Head

DV11 Cylinder Liner

DV11 Crankshaft & Gear

DV11 Camshaft & Gear

DV11 Connecting Rod

DV11 Connecting Rod Bushing

DV11 Crankshaft Metal /Main Bearing

DV11 Con Rod Metal/ Con Rod Bearing

DV11 Piston & Pin & Lock Ring

DV11 Piston Ring Set

DV11 Overhaul Full Complete Gasket Kit Set

DV11 Head / Upper Gasket Kit

DV11 Block / Lower / Bottom Gasket kit

DV11 Cylinder Head gasket

DV11 Rod / Pin Bushing

DV11 Camshaft Bushing / Bearing

DV11 Thrust Wahser / Bearing

DV11 Water Pump

DV11 Oil Pump

DV11 Valve inlet / exhaust

DV11 Valve Seat in / ex

DV11 Valve Guide

DV11 Valve Tapped , Push Rod, Valve Lock

DV11 Valve Spring, Seat

DV11 Alternator

DV11 Stater

DV11 Turbocharger

DV11 Oil Cooler Core, Cover

DV11 Injector Sleeve

DV11 Piston Cooling Nollze

DV11 Rocker Arm

DV11 Manifold In & Ex

DV11 Flywheel

DV11 Con rod Bolt. Head Bolt

65.01101-6128D 65.01101-6128F 65.01101-6128H 150102-00411A 150102-00412A 65.01101-6111D 65.01101-6111F 65.01101-6111H 150102-00798 150102-00799 150102-00008 150102-00009
65.03101-6074D 65.03101-6074F 65.03101-6074G 150113-00520 150113-00521 65.03101-1054B 65.03101-1054C
65.02101-7065B
65.04401-6004D 65.04401-6014 65.04401-0036A 65.04401-0044
65.02401-6027B 65.02401-0015B 65.02411-0008 Bolt

65.06500-6173A 65.06500-6173D 65.06500-6173E 400921-00033A 400921-00033C
400915-00273A 400915-00273 65.05100-6188D 65.05100-6188E 65.05100-6188F
65.05604-5031
65.05601-0048
65.05601-7077
65.05901B0016 400621-00026
65.01110-6529 std 7pair	65.01110-6531 0.25	65.01110-6532 0.5
65.02410-0110B 65.02410-0110C STD 65.02410-0120B 65.02410-0120C STD	65.02410-0111B 65.02410-0111C 0.25 65.02410-0121B 65.02410-0121C 0.25	65.02410-0112B 65.02410-0112C 0.50 65.02410-0122B 65.02410-0122C 0.50
65.01111-6539 65.01111-6541 65.01111-6542 140110-00041 140110-00042
65.01201-0073B
65.96501-0059 401002-00785 6 Pcs 51.96501-0412 65.96501-0082 6 Pcs 65.96501-0082 401002-00786 6 Pcs 65.96501-0078 401002-00786 6 Pcs
65.02501-0705 65.02501-0705A 65.02501-0712 130602-00114
65.02501-0711
65.02501-0715
65.02502-0081 65.90815-0022A Lock Ring
401004-00022 assy 65.02503-0158 top 65.02503-0159 2nd 65.02503-0678 oil
65.99601-8084
65.99605-8087
65.03901-0067
65.04101-0061C
65.04101-0062C
65.03203-1057A
65.03203-1058A
65.03201-1014A 65.03201-1015B 65.03201-1015C
65.03201-1014A 65.03201-1015B 65.03201-1015C
65.04102-6012A 65.04102-0053
65.04102-0022A 65.04102-0049
65.04301-5002B 65.04301-5004
65.04104-0008
65.04902-0014 65.04902-0020
65.04302-5013A 65.04302-5013B
65.04201-5028 65.04201-5029 65.04200-6032D 65.04200-6032E 65.04200-6032F 65.04200-6032G
Non
65.04410-0018 (1) 65.04410-0078 (3)

Doosan Daewoo Diesel Engine Piston Kit

The following popular Doosan Daewoo engine replacement parts also can be provided too.

1: DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2: DL06 DL08 DV11 DV15 D2848 8CYL D2848 10CYL

3: D18 D24 D34 DP086 DP126 DP158 DP180 DP222 P086TI P126TI P158 P180

FAQ

Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.

Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...

Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；

Accepted Payment Currency:USD,CNY;RUBLES

Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Spanish,Portuguese,Russian

Tag:

Bore Diameter:	128.0 mm
No. of Cyl:	L6
Total Length:	STD mm
Comp Height:	STD mm
Chamber Dia:	80.0 mm
Ring Groove:	3.5DK+3.0+4.0
Pin Size:	Std mm

Material:	AL108/AL109
Package:	6 PCS/CTN
Warranty:	1-3 years
Stock:	Yes
Shipping	Air/Sea/Land
Part No:	65.02501-0710
Oem No.	65.02501-0711
