DL06 Engine Spare Parts Piston130602-01070 130602-01060

Basic Information

Model:	DL06
Diameter	100.0 mm
Brand:	AEENGINEPARTS
Certification:	ISO9001/TS16949
Place of Origin:	GuangDong, China
MOQ:	10 Sets
Price:	15-18 USD/PCS
Packaging Details:	Carton/Wooden Box/As Customer Requirements
Delivery Time:	3-5 days for stocks, 30-45 days for production
Payment Terms:	T/T; Western Union, Paypal
Supply Ability:	5000PCS/Month
Warranty:	10,000 Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:	Provided

Contact Now

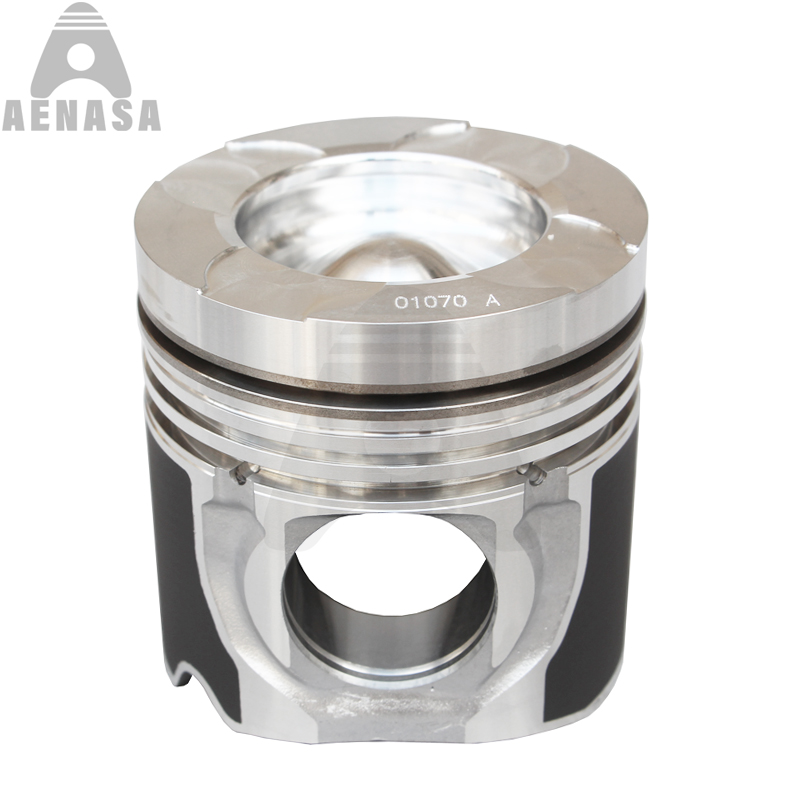

Doosan DL06 Diesel Engine Spare Parts Piston Kit Set

Engine Model:	DL06
Engine Type:	Diesel Engine
Bore Diamter:	100.0 mm
Material:	AL108/109
Surface Treatment:	Sn
Alfin:	Yes
Oil Gallery:	Yes/No
Steel Pieces：	Yes
Oem Part Number:	130602-01070 130602-01060
Unit Weight(kg):	1.20 kg

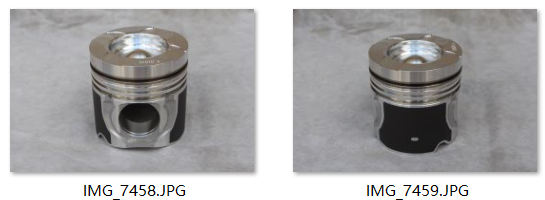

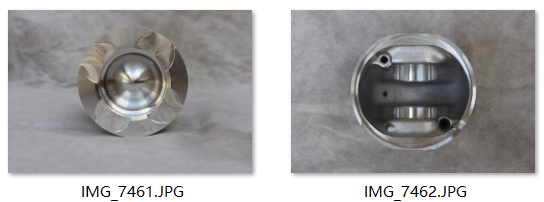

DL06 DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS

DL06 LINER KIT :

CYLINDER LINER: 65.01201-0075A 65.01201-0076A 65.01201-0077A 65.01201-0078A 65.01201-0079A

PISTON KIT: 130602-01070 130602-01060

PISTON RING SET: 65.02503-8047

Rod Bushing: Non

Liner O-RING: Non

AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

DL06 DIESEL ENGINE SPARE PARTS LIST

DL06 Cylinder Block

DL06 Cylinder Head

DL06 Cylinder Liner

DL06 Crankshaft & Gear

DL06 Camshaft & Gear

DL06 Connecting Rod

DL06 Connecting Rod Bushing

DL06 Crankshaft Metal /Main Bearing

DL06 Con Rod Metal/ Con Rod Bearing

DL06 Piston & Pin & Lock Ring

DL06 Piston Ring Set

DL06 Overhaul Full Complete Gasket Kit Set

DL06 Head / Upper Gasket Kit

DL06 Block / Lower / Bottom Gasket kit

DL06 Cylinder Head gasket

DL06 Rod / Pin Bushing

DL06 Camshaft Bushing / Bearing

DL06 Thrust Wahser / Bearing

DL06 Water Pump

DL06 Oil Pump

DL06 Valve inlet / exhaust

DL06 Valve Seat in / ex

DL06 Valve Guide

DL06 Valve Tapped , Push Rod, Valve Lock

DL06 Valve Spring, Seat

DL06 Alternator

DL06 Stater

DL06 Turbocharger

DL06 Oil Cooler Core, Cover

DL06 Injector Sleeve

DL06 Piston Cooling Nollze

DL06 Rocker Arm

DL06 Manifold In & Ex

DL06 Flywheel

DL06 Con rod Bolt. Head Bolt

150102-00037 150102-00037A 150102-00037C 150102-00037D 150102-00004D 65.01101-6085B 65.01101-6092A 150102-00373 150102-00373A 150102-00373B 65.01101-0054B 65.01101-0056A
65.03101-6090F 150113-00009 150113-00009A 65.03101-1068C 150113-00010 150113-00010A
65.02101-0069A 65.02115-0016 Gear
65.04401-0045A 150103-00073 65.04501-0017 Gear
65.02401-6032B 150121-00267 150121-00267A 65.02411-0009 BOLT
65.09100-7110 150105-00377
400921-00008 65.06500-6271 65.06500-6271A
65.05100-6063 65.05100-6063A
65.05604-0030A
65.05606-5032A
65.05601-7079B 400206-00474
65.05902-0023
65.01110-6140 65.01110-6140A STD
65.02410-0040 (STD) 65.02410-0050 (STD)	65.02410-0041 (0.25) 65.02410-0051 (0.25)	65.02410-0042 (0.50) 65.02410-0052 (0.50)
65.01150-6008
65.01201-0075A STD 65.01201-0076 1A 65.01201-0077 1B 65.01201-0078 2A 65.01201-0079 2B
NON
65.02501-0473 65.02501-0474 65.02501-0475 65.02501-0476 65.02501-0478 65.02501-0477
130602-01070
65.02501-0426 130602-01173S
65.02502-0017A 06.29020-0125 Lock
65.02503-8047 Set 65.02503-0132A TOP 65.02503-0133A 2ND 65.02503-0134 OIL
65.99601-8071
65.99605-8042
65.03901-0071 400603-00112
65.04101-0065B
65.04101-0066B
65.03203-1062
65.03203-1063
65.03201-1016B
65.03201-1016B
65.04102-0024
65.04102-0024
65.04301-5003C
65.04104-0009
65.04902-0016
65.04302-5015 150123-00143
65.04200-6038B 65.04200-6038C 65.04200-6038D 65.04201-5042B 65.04201-5042C 65.04201-5043A 65.04201-5043C 65.04203-5020A SHAFT

65.04410-0021A 6pcs 65.04410-0022 1pcs
65.26201-7075A 65.26201-7093 300516-00042 300516-00042A 300516-00042C

Doosan Daewoo Diesel Engine Piston Kit

The following popular Doosan Daewoo engine replacement parts also can be provided too.

1: DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2: DL06 DL08 DV11 DV15 D2848 8CYL D2848 10CYL

3: D18 D24 D34 DP086 DP126 DP158 DP180 DP222 P086TI P126TI P158 P180

FAQ

Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.

Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...

Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；

Accepted Payment Currency:USD,CNY;RUBLES

Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Spanish,Portuguese,Russian

Tag:

Bore Diameter:	100.0 mm
No. of Cyl:	L6
Total Length:	100.0 mm
Comp Height:	60.0 mm
Chamber Dia:	59.0 mm
Ring Groove:	2.6DK+2.5+4 mm
Pin Size:	40*80

Material:	AL108/AL109
Package:	6 PCS/CTN
Warranty:	1-3 years
Stock:	Yes
Shipping	Air/Sea/Land
Part No:	130602-01060
Oem No.	130602-01070
