DE12 DE12TI Engine Spare Parts Piston DE12T Piston 130602-00590 65.02501-0601B

Basic Information

Model:	DE12 DE12T DE12TIS
Diameter	123.0 mm
Brand:	AEENGINEPARTS
Certification:	ISO9001/TS16949
Place of Origin:	GuangDong, China
MOQ:	10 Sets
Price:	18-20 USD/PCS
Packaging Details:	Carton/Wooden Box/As Customer Requirements
Delivery Time:	3-5 days for stocks, 30-45 days for production
Payment Terms:	T/T; Western Union, Paypal
Supply Ability:	5000PCS/Month
Warranty:	10,000 Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:	Provided

Contact Now

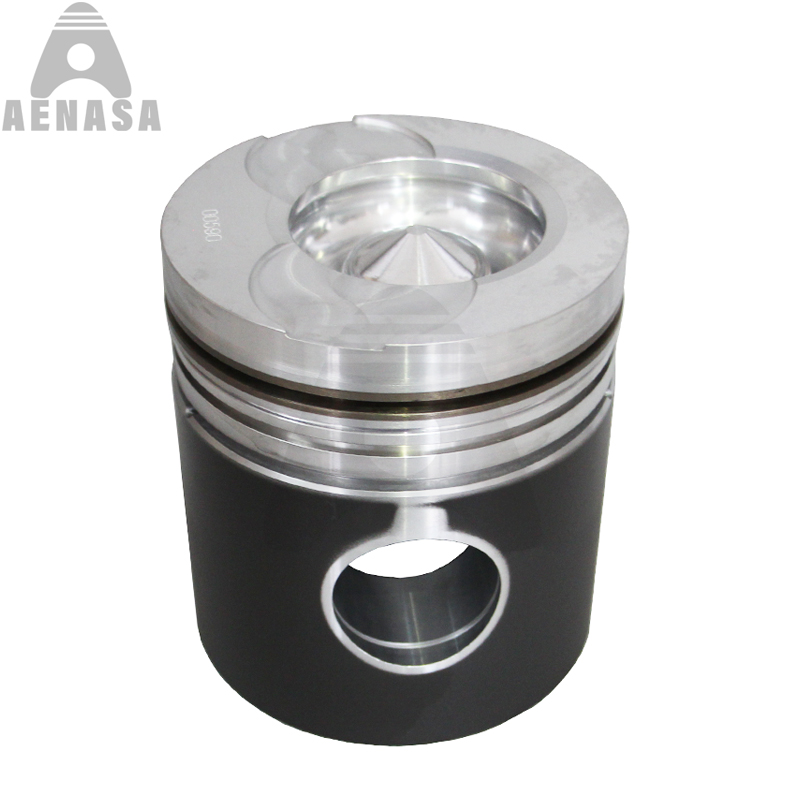

Doosan DE12 DE12T DE12TIS Diesel Engine Spare Parts Piston Kit Set

Engine Model:	DE12 DE12T DE12TIS
Engine Type:	Diesel Engine
Bore Diamter:	123.0 mm
Material:	AL108/109
Surface Treatment:	Sn
Alfin:	Yes
Oil Gallery:	Yes/No
Steel Pieces：	Yes
Oem Part Number:	130602-00590 65.02501-0601B
Unit Weight(kg):	1.80 kg

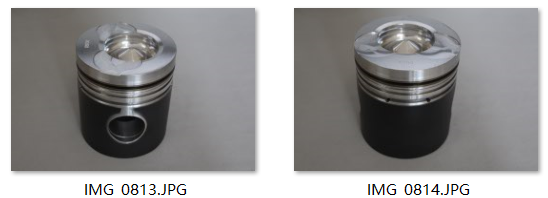

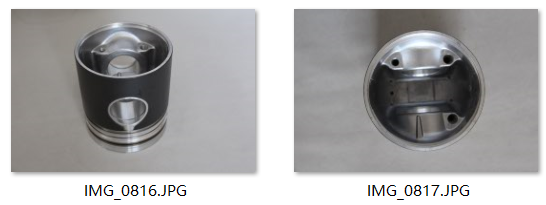

DE12 DE12T DE12TIS DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS

DE12 DE12T DE12TIS LINER KIT :

CYLINDER LINER: 65.01201-0051 65.01201-0311C

PISTON KIT: 130602-00590 65.02501-0601B

PISTON RING SET: 65.02503-8236

Rod Bushing: 65.02405-1006

Liner O-RING: Non

AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

DE12 DE12T DE12TIS DIESEL ENGINE SPARE PARTS LIST

DE12T Cylinder Block

DE12T Cylinder Head

DE12T Cylinder Liner

DE12T Crankshaft & Gear

DE12T Camshaft & Gear

DE12T Connecting Rod

DE12T Connecting Rod Bushing

DE12T Crankshaft Metal /Main Bearing

DE12T Con Rod Metal/ Con Rod Bearing

DE12T Piston & Pin & Lock Ring

DE12T Piston Ring Set

DE12T Overhaul Full Complete Gasket Kit Set

DE12T Head / Upper Gasket Kit

DE12T Block / Lower / Bottom Gasket kit

DE12T Cylinder Head gasket

DE12T Rod / Pin Bushing

DE12T Camshaft Bushing / Bearing

DE12T Thrust Wahser / Bearing

DE12T Water Pump

DE12T Oil Pump

DE12T Valve inlet / exhaust

DE12T Valve Seat in / ex

DE12T Valve Guide

DE12T Valve Tapped , Push Rod, Valve Lock

DE12T Valve Spring, Seat

DE12T Alternator

DE12T Stater

DE12T Turbocharger

DE12T Oil Cooler Core, Cover

DE12T Injector Sleeve

DE12T Piston Cooling Nollze

DE12T Rocker Arm

DE12T Manifold In & Ex

DE12T Flywheel

DE12T Con rod Bolt. Head Bolt

65.01101-6036 65.01101-6036A 65.01101-6036C 65.01101-6067 65.01101-0048
65.03101-6496 65.03101-6496V Assy front 65.03101-0296 65.03101-0296U front only	65.03101-6497 65.03101-6497V Rear Assy 65.03101-0297 65.03101-0297U Rear only	65.90020-0034 Head Bolt 28 Pcs
65.02101-7054 65.02101-7025 65.02115-0040 Gear
65.04401-0010 65.04501-0057 Gear
65.02401-6012 65.02401-0045 65.90020-0010 Bolt 65.90020-0010D Bolt
65.09100-7020 65.09100-7036
65.06500-6125 65.06500-6347
65.05100-6023
65.05902-0009
65.05606-5021
65.05500-6005
65.05605-0023
65.01110-6055 STD	65.11110-6255 0.25	65.01110-6256 0.50
65.02410-6106 STD
65.01150-0017A 65.01150-0018B STD	65.01150-0027 65.01150-0031 0.25	65.01150-0028 65.01150-0032 0.50
65.01201-0019 65.01201-0051
NON
65.02501-0032
65.02501-0773D
65.02501-0222B 130602-00313 130602-01010 65.02501-0165A 65.02501-0784
65.02501-0209
130602-00590 65.02501-0601B
65.02502-0050 06.29020-0127 Lock Ring
65.02503-0057 TOP 65.02503-0097 2ND 65.02503-0105 OIL
65.99601-8042 ( 65.03901-0063A 65.03901-0064A H/G) PISTON -0778A
65.99605-8028 PISTON -0778A
65.03901-0049 65.03901-0051 FR 65.03901-0050 65.03901-0052 RR
65.04101-0043	5311167
65.04101-0044	5111167
65.03203-1036	54468.5
65.03203-1031	51.541.59.8
65.03201-1008
65.03201-1008
65.04102-6004 6Pcs Assy 65.04102-0002 1Pcs INNER
65.04102-0066 1Pcs OUTER 65.04102-0066 6Pcs OUTER
65.04103-0014 12Pcs
65.04103-0011
65.04902-0010
65.04301-0006
65.04104-0007
65.04302-5011
65.04200-6017 ASS'Y 65.04201-5014 65.04201-0007
65.02405-1001
65.04410-0016 4pcs

Doosan Daewoo Diesel Engine Piston Kit

The following popular Doosan Daewoo engine replacement parts also can be provided too.

1: DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2: DL06 DL08 DV11 DV15 D2848 8CYL D2848 10CYL

3: D18 D24 D34 DP086 DP126 DP158 DP180 DP222 P086TI P126TI P158 P180

FAQ

Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.

Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...

Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；

Accepted Payment Currency:USD,CNY;RUBLES

Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Spanish,Portuguese,Russian

Tag:

Bore Diameter:	123.0 mm
No. of Cyl:	L6
Total Length:	137.0 mm
Comp Height:	81.5 mm
Chamber Dia:	66.4 mm
Ring Groove:	3.5DK+3.0+4.0 mm
Pin Size:	45*102

Material:	AL108/AL109
Package:	6 PCS/CTN
Warranty:	1-3 years
Stock:	Yes
Shipping	Air/Sea/Land
Part No:	65.02501-0601B
Oem No.	130602-00590
