DE12T DE12TIS Engine Spare Parts Piston DE12T Piston 65.02501-0209

Basic Information
Model:DE12 DE12T DE12TIS
Diameter123.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:18-20 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:123.0 mm
No. of   Cyl: L6
Total Length:137.0 mm
Comp Height:81.5 mm
Chamber Dia:66.4 mm
Ring Groove:3.5DK+3.0+4.0 mm
Pin Size:45*102


Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:65.02501-0209
Oem No.65.02501-0209

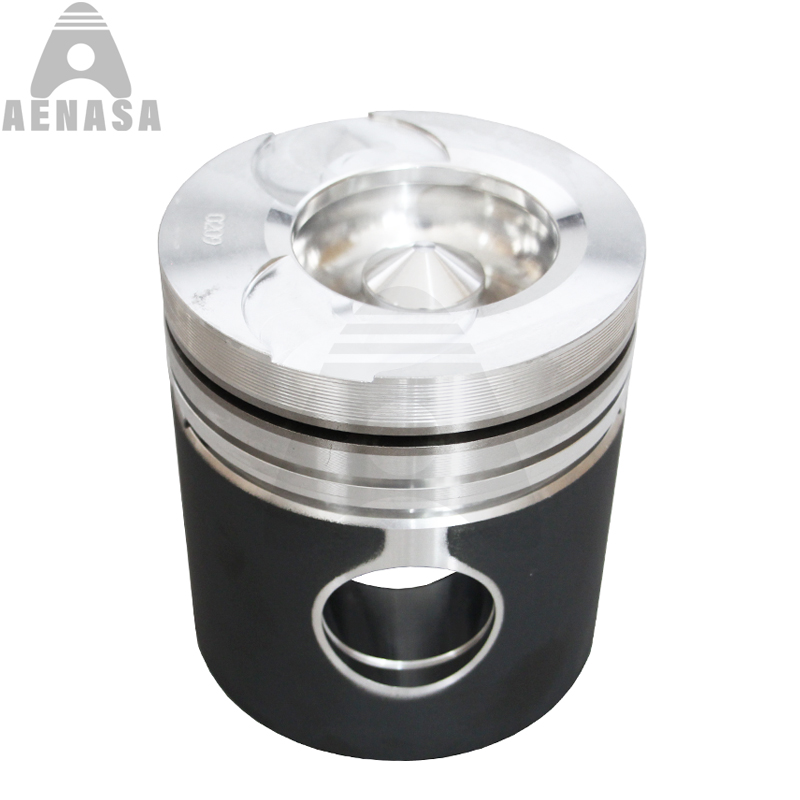

Doosan DE12 DE12T DE12TIS Diesel Engine Spare Parts Piston Kit Set


Engine   Model:DE12 DE12T DE12TIS
Engine Type:Diesel Engine
Bore Diamter:123.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

65.02501-0209

Unit Weight(kg): 1.80 kg

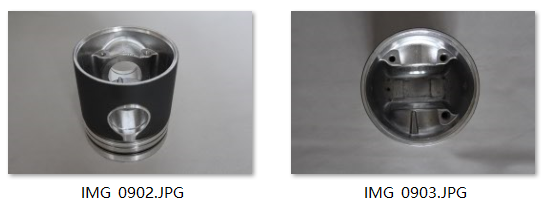

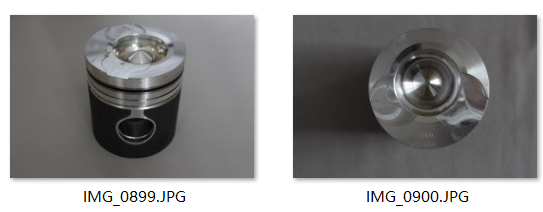

DE12 DE12T DE12TIS DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS





DE12 DE12T DE12TIS LINER KIT :


CYLINDER LINER:  65.01201-0051  65.01201-0311C

PISTON KIT: 65.02501-0209

PISTON RING SET: 65.02503-8236

Rod Bushing:   65.02405-1006

Liner O-RING:  Non


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

DE12 DE12T DE12TIS DIESEL ENGINE SPARE PARTS LIST


DE12TIS  Cylinder Block

DE12TIS  Cylinder Head

DE12TIS  Cylinder Liner

DE12TIS  Crankshaft  &  Gear

DE12TIS  Camshaft & Gear

DE12TIS  Connecting Rod

DE12TIS  Connecting Rod Bushing

DE12TIS  Crankshaft Metal /Main Bearing

DE12TIS  Con Rod Metal/ Con Rod Bearing

DE12TIS  Piston & Pin & Lock Ring

DE12TIS  Piston Ring Set

DE12TIS  Overhaul Full Complete Gasket Kit Set

DE12TIS  Head / Upper Gasket Kit

DE12TIS  Block / Lower / Bottom Gasket kit

DE12TIS  Cylinder Head gasket

DE12TIS  Rod / Pin Bushing

DE12TIS  Camshaft Bushing / Bearing

DE12TIS  Thrust Wahser / Bearing

DE12TIS  Water Pump

DE12TIS  Oil Pump

DE12TIS  Valve inlet / exhaust

DE12TIS  Valve Seat in / ex

DE12TIS  Valve Guide

DE12TIS  Valve Tapped , Push Rod, Valve Lock

DE12TIS  Valve Spring,  Seat

DE12TIS  Alternator

DE12TIS  Stater

DE12TIS  Turbocharger

DE12TIS  Oil Cooler Core, Cover

DE12TIS  Injector Sleeve

DE12TIS  Piston Cooling Nollze

DE12TIS  Rocker Arm

DE12TIS  Manifold In & Ex

DE12TIS  Flywheel

DE12TIS  Con rod Bolt. Head Bolt

65.01101-6036   65.01101-6036A 65.01101-6036C 65.01101-6067 65.01101-0048

65.03101-6496   65.03101-6496V Assy front 65.03101-0296 65.03101-0296U front only 65.03101-6497  65.03101-6497V   Rear Assy 65.03101-0297 65.03101-0297U Rear only65.90020-0034 Head Bolt 28 Pcs
65.02101-7054   65.02101-7025 65.02115-0040 Gear

65.04401-0010  65.04501-0057 Gear

65.02401-6012   65.02401-0045  65.90020-0010 Bolt   65.90020-0010D Bolt

65.09100-7020   65.09100-7036

65.06500-6125   65.06500-6347

65.05100-6023

65.05902-0009

65.05606-5021

65.05500-6005

65.05605-0023

65.01110-6055  STD65.11110-6255 0.2565.01110-6256 0.50
65.02410-6106  STD

65.01150-0017A  65.01150-0018B STD65.01150-0027  65.01150-0031 0.2565.01150-0028   65.01150-0032   0.50
65.01201-0019   65.01201-0051

NON

65.02501-0032

65.02501-0773D

65.02501-0222B   130602-00313 130602-01010 65.02501-0165A 65.02501-0784

65.02501-0209

130602-00590   65.02501-0601B

65.02502-0050   06.29020-0127 Lock Ring

65.02503-0057   TOP
    65.02503-0097 2ND
    65.02503-0105 OIL


65.99601-8042   ( 65.03901-0063A 65.03901-0064A H/G) PISTON -0778A

65.99605-8028   PISTON -0778A

65.03901-0049   65.03901-0051 FR  65.03901-0050  65.03901-0052 RR

65.04101-004353*11*167
65.04101-004451*11*167
65.03203-103654*46*8.5
65.03203-103151.5*41.5*9.8
65.03201-1008

65.03201-1008

65.04102-6004   6Pcs Assy
    65.04102-0002 1Pcs INNER


65.04102-0066   1Pcs OUTER 65.04102-0066 6Pcs OUTER

65.04103-0014   12Pcs

65.04103-0011

65.04902-0010

65.04301-0006

65.04104-0007

65.04302-5011

65.04200-6017   ASS'Y 65.04201-5014 65.04201-0007

65.02405-1001

65.04410-0016  4pcs



Doosan Daewoo Diesel Engine Piston Kit




The following popular Doosan Daewoo  engine replacement parts also can be provided too.


1:  DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2:  DL06 DL08  DV11 DV15 D2848 8CYL D2848 10CYL

3:  D18 D24 D34 DP086 DP126 DP158 DP180  DP222 P086TI P126TI P158 P180
