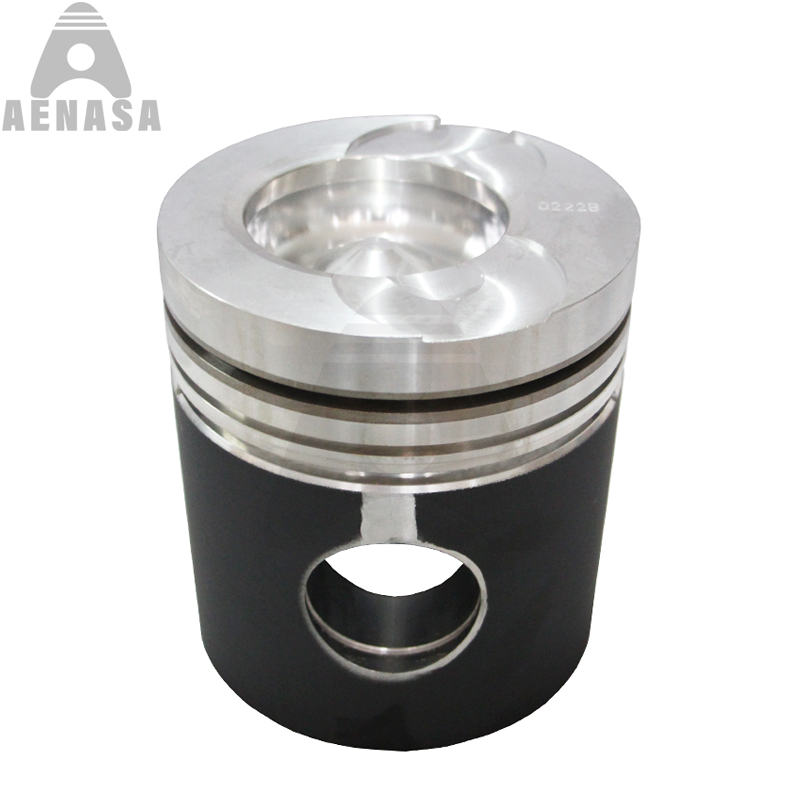

D2366T Engine Spare Parts Piston 65.02501-0222B

Basic Information
Model:D2366 D2366T
Diameter123.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:18-20 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:123.0 mm
No. of   Cyl: L6
Total Length:137.0 mm
Comp Height:81.5 mm
Chamber Dia:66.0 mm
Ring Groove:3.5DK+3.0+4.0 mm
Pin Size:45*104


Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:65.02501-0222B
Oem No.65.02501-0222B


Doosan D2366 D2366T Diesel Engine Spare Parts Piston Kit Set


Engine   Model:D2366 D2366T
Engine Type:Diesel Engine
Bore Diamter:123.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

65.02501-0222B 130602-00313 130602-01010 65.02501-0165A 65.02501-0784

Unit Weight(kg): 1.80 kg

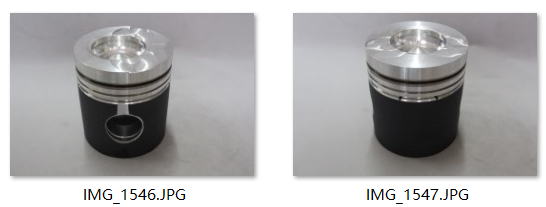

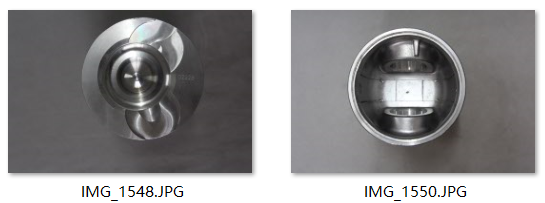

D2366 D2366T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS





D2366 D2366T LINER KIT :


CYLINDER LINER:  65.01201-0051  65.01201-0311C

PISTON KIT: 65.02501-0222B 130602-00313 130602-01010 65.02501-0165A 65.02501-0784

PISTON RING SET: 65.02503-8236

Rod Bushing:   65.02405-1006

Liner O-RING:  Non


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

D2366 D2366T DIESEL ENGINE SPARE PARTS LIST

D2366T  Cylinder Block

D2366T  Cylinder Head

D2366T  Cylinder Liner

D2366T  Crankshaft  &  Gear

D2366T  Camshaft & Gear

D2366T  Connecting Rod

D2366T  Connecting Rod Bushing

D2366T  Crankshaft Metal /Main Bearing

D2366T  Con Rod Metal/ Con Rod Bearing

D2366T  Piston & Pin & Lock Ring

D2366T  Piston Ring Set

D2366T  Overhaul Full Complete Gasket Kit Set

D2366T  Head / Upper Gasket Kit

D2366T  Block / Lower / Bottom Gasket kit

D2366T  Cylinder Head gasket

D2366T  Rod / Pin Bushing

D2366T  Camshaft Bushing / Bearing

D2366T  Thrust Wahser / Bearing

D2366T  Water Pump

D2366T  Oil Pump

D2366T  Valve inlet / exhaust

D2366T  Valve Seat in / ex

D2366T  Valve Guide

D2366T  Valve Tapped , Push Rod, Valve Lock

D2366T  Valve Spring,  Seat

D2366T  Alternator

D2366T  Stater

D2366T  Turbocharger

D2366T  Oil Cooler Core, Cover

D2366T  Injector Sleeve

D2366T  Piston Cooling Nollze

D2366T  Rocker Arm

D2366T  Manifold In & Ex

D2366T  Flywheel

D2366T  Con rod Bolt. Head Bolt


65.01101-6212  65.01101-6068A

65.03101-6053G   65.03101-6053D 65.03101-6053F (FR)
    65.03101-6054D 65.03101-6054F (RR)
    65.03101-0003D 65.03101-0003F 65.03101-0004D


65.02101-7541A   65.02101-7054A  65.02101-0054   65.02101-0057  65.02115-0008B Gear

65.04401-0010K  65.04501-0007A Gear

65.02401-6012C  65.02401-6012E 65.02401-0045E  65.90020-0010E Bolt




65.06500-6405B  65.06500-6157B 65.06500-6157C

65.05100-6042A   65.05100-6050

65.05604-0019B

65.05606-5027B

65.05601-7072C

65.01907-0008A

65.01110-6055A  STD 65.01110-6068A 0.25 65.01110-6069A 0.50
65.02410-6106

65.01150-0017A   65.01150-0018B STD65.01150-0048A   65.01150-0052B  0.2565.01150-0049A 65.01150-0053B   0.50
65.01201-0051

non

65.02501-0222   65.02501-0165A   65.02501-0784

65.02501-0778A

65.02501-0031

65.02502-0013   06.29020-0127 Lock

65.02503-8236   Set 65.02503-0057 TOP 65.02503-0097 2ND 65.02503-0105 OIL







65.03901-0053  65.03901-0063 (FF)
    65.03901-0054  65.03901-0064 (RR)


65.04101-004353*11*167
65.04101-004451*11*167
65.03203-104155*46*7.5
65.03203-104252.5*42.5*9.8
65.03201-1008E

65.03201-1008E

65.04102-6004   assy 65.04102-0002 in

65.04102-0066

65.04301-0006

 65.04103-0011 65.04103-0078

65.04103-0014

65.04902-0010

65.04104-0007

65.04302-5011

65.04200-6027A   65.04200-6027C 65.04201-5014E ASSY 65.04203-5010  SHAFT

65.02405-1006

65.04410-0016   4 pcs

65.26201-7058A



Doosan Daewoo Diesel Engine Piston Kit




The following popular Doosan Daewoo  engine replacement parts also can be provided too.


1:  DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2:  DL06 DL08  DV11 DV15 D2848 8CYL D2848 10CYL

3:  D18 D24 D34 DP086 DP126 DP158 DP180  DP222 P086TI P126TI P158 P180
