D2366 Engine Spare Parts Piston 65.02501-0773D

Basic Information

Model:	D2366 D2366T
Diameter	123.0 mm
Brand:	AEENGINEPARTS
Certification:	ISO9001/TS16949
Place of Origin:	GuangDong, China
MOQ:	10 Sets
Price:	18-20 USD/PCS
Packaging Details:	Carton/Wooden Box/As Customer Requirements
Delivery Time:	3-5 days for stocks, 30-45 days for production
Payment Terms:	T/T; Western Union, Paypal
Supply Ability:	5000PCS/Month
Warranty:	10,000 Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:	Provided

Contact Now

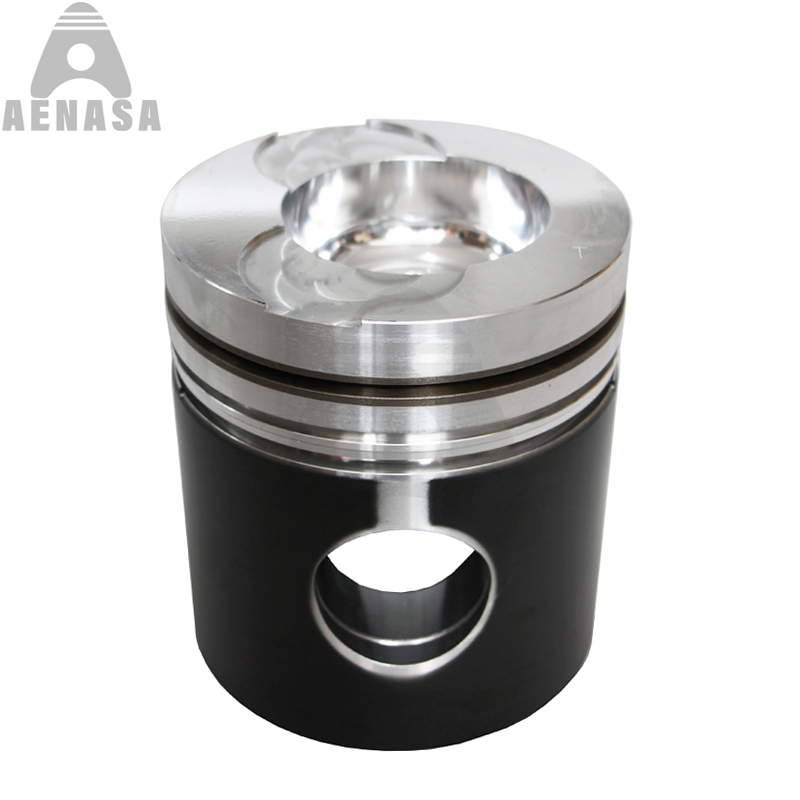

Doosan D2366 D2366T Diesel Engine Spare Parts Piston Kit Set

Engine Model:	D2366 D2366T
Engine Type:	Diesel Engine
Bore Diamter:	123.0 mm
Material:	AL108/109
Surface Treatment:	Sn
Alfin:	Yes
Oil Gallery:	Yes/No
Steel Pieces：	Yes
Oem Part Number:	65.02501-0031
Unit Weight(kg):	1.80 kg

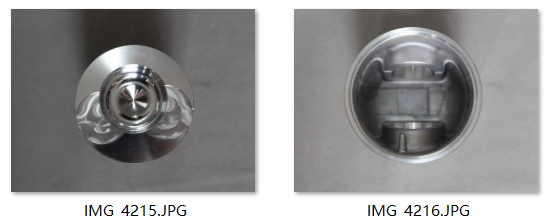

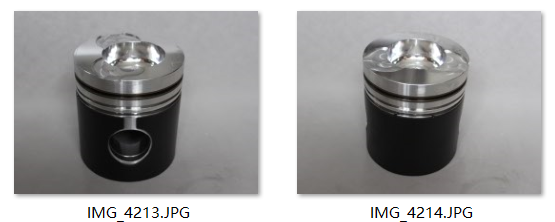

D2366 D2366T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS

D2366 D2366T LINER KIT :

CYLINDER LINER: 65.01201-0051 65.01201-0311C

PISTON KIT: 65.02501-0031

PISTON RING SET: 65.02503-8236

Rod Bushing: 65.02405-1006

Liner O-RING: Non

AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

D2366 D2366T DIESEL ENGINE SPARE PARTS LIST

D2366 Cylinder Block

D2366 Cylinder Head

D2366 Cylinder Liner

D2366 Crankshaft & Gear

D2366 Camshaft & Gear

D2366 Connecting Rod

D2366 Connecting Rod Bushing

D2366 Crankshaft Metal /Main Bearing

D2366 Con Rod Metal/ Con Rod Bearing

D2366 Piston & Pin & Lock Ring

D2366 Piston Ring Set

D2366 Overhaul Full Complete Gasket Kit Set

D2366 Head / Upper Gasket Kit

D2366 Block / Lower / Bottom Gasket kit

D2366 Cylinder Head gasket

D2366 Rod / Pin Bushing

D2366 Camshaft Bushing / Bearing

D2366 Thrust Wahser / Bearing

D2366 Water Pump

D2366 Oil Pump

D2366 Valve inlet / exhaust

D2366 Valve Seat in / ex

D2366 Valve Guide

D2366 Valve Tapped , Push Rod, Valve Lock

D2366 Valve Spring, Seat

D2366 Alternator

D2366 Stater

D2366 Turbocharger

D2366 Oil Cooler Core, Cover

D2366 Injector Sleeve

D2366 Piston Cooling Nollze

D2366 Rocker Arm

D2366 Manifold In & Ex

D2366 Flywheel

D2366 Con rod Bolt. Head Bolt

65.01101-6212 65.01101-6068A
65.03101-6053G 65.03101-6053D 65.03101-6053F (FR) 65.03101-6054D 65.03101-6054F (RR) 65.03101-0003D 65.03101-0003F 65.03101-0004D
65.02101-7541A 65.02101-7054A 65.02101-0054 65.02101-0057 65.02115-0008B Gear
65.04401-0010K 65.04501-0007A Gear
65.02401-6012C 65.02401-6012E 65.02401-0045E 65.90020-0010E Bolt

65.06500-6405B 65.06500-6157B 65.06500-6157C
65.05100-6042A 65.05100-6050
65.05604-0019B
65.05606-5027B
65.05601-7072C
65.01907-0008A
65.01110-6055A STD	65.01110-6068A 0.25	65.01110-6069A 0.50
65.02410-6106
65.01150-0017A 65.01150-0018B STD	65.01150-0048A 65.01150-0052B 0.25	65.01150-0049A 65.01150-0053B 0.50
65.01201-0051
non
65.02501-0222 65.02501-0165A 65.02501-0784
65.02501-0778A
65.02501-0031
65.02502-0013 06.29020-0127 Lock
65.02503-8236 Set 65.02503-0057 TOP 65.02503-0097 2ND 65.02503-0105 OIL


65.03901-0053 65.03901-0063 (FF) 65.03901-0054 65.03901-0064 (RR)
65.04101-0043	5311167
65.04101-0044	5111167
65.03203-1041	55467.5
65.03203-1042	52.542.59.8
65.03201-1008E
65.03201-1008E
65.04102-6004 assy 65.04102-0002 in
65.04102-0066
65.04301-0006
65.04103-0011 65.04103-0078
65.04103-0014
65.04902-0010
65.04104-0007
65.04302-5011
65.04200-6027A 65.04200-6027C 65.04201-5014E ASSY 65.04203-5010 SHAFT
65.02405-1006
65.04410-0016 4 pcs
65.26201-7058A

Doosan Daewoo Diesel Engine Piston Kit

The following popular Doosan Daewoo engine replacement parts also can be provided too.

1: DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2: DL06 DL08 DV11 DV15 D2848 8CYL D2848 10CYL

3: D18 D24 D34 DP086 DP126 DP158 DP180 DP222 P086TI P126TI P158 P180

FAQ

Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.

Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...

Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；

Accepted Payment Currency:USD,CNY;RUBLES

Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Spanish,Portuguese,Russian

Tag:

Bore Diameter:	123.0 mm
No. of Cyl:	L6
Total Length:	137.0 mm
Comp Height:	81.5 mm
Chamber Dia:	70.0 mm
Ring Groove:	3.5DK+3.0+4.0 mm
Pin Size:	45*102

Material:	AL108/AL109
Package:	6 PCS/CTN
Warranty:	1-3 years
Stock:	Yes
Shipping	Air/Sea/Land
Part No:	65.02501-0031
Oem No.	65.02501-0031
