D1146T Engine Spare Parts Piston 65.02501-0785A 65.02501-0203A

Basic Information

Model:	D1146 D1146T
Diameter	111.0 mm
Brand:	AEENGINEPARTS
Certification:	ISO9001/TS16949
Place of Origin:	GuangDong, China
MOQ:	10 Sets
Price:	13-15 USD/PCS
Packaging Details:	Carton/Wooden Box/As Customer Requirements
Delivery Time:	3-5 days for stocks, 30-45 days for production
Payment Terms:	T/T; Western Union, Paypal
Supply Ability:	5000PCS/Month
Warranty:	10,000 Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:	Provided

Contact Now

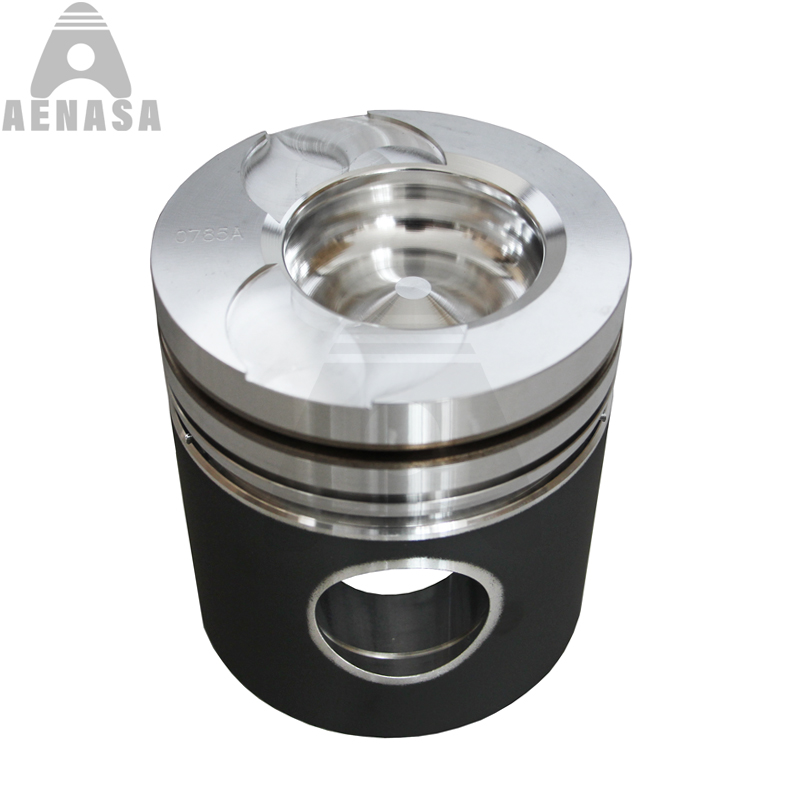

Doosan D1146 D1146T Diesel Engine Spare Parts Piston Kit Set

Engine Model:	D1146 D1146T
Engine Type:	Diesel Engine
Bore Diamter:	111.0 mm
Material:	AL108/109
Surface Treatment:	Sn
Alfin:	Yes
Oil Gallery:	Yes/No
Steel Pieces：	Yes
Oem Part Number:	65.02501-0785A 65.02501-0203A
Unit Weight(kg):	1.80 kg

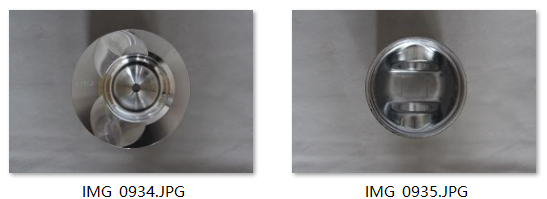

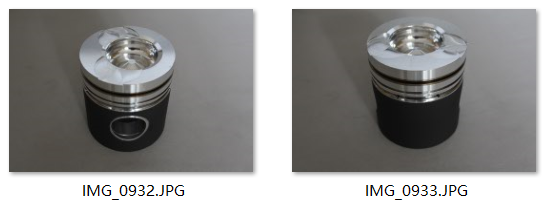

D1146 D1146T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS

D1146 D1146T LINER KIT :

CYLINDER LINER: 65.01201-0050 150117-00028 65.01201-0020 65.01201-0024 65.01201-7024

PISTON KIT: 65.02501-0785A 65.02501-0203A

PISTON RING SET: 65.02503-8146 401004-00101

Rod Bushing: 65.02405-0014 65.02405-0015B

Liner O-RING: Non

AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

D1146 D1146T DIESEL ENGINE SPARE PARTS LIST

D1146T Cylinder Block

D1146T Cylinder Head

D1146T Cylinder Liner

D1146T Crankshaft & Gear

D1146T Camshaft & Gear

D1146T Connecting Rod

D1146T Connecting Rod Bushing

D1146T Crankshaft Metal /Main Bearing

D1146T Con Rod Metal/ Con Rod Bearing

D1146T Piston & Pin & Lock Ring

D1146T Piston Ring Set

D1146T Overhaul Full Complete Gasket Kit Set

D1146T Head / Upper Gasket Kit

D1146T Block / Lower / Bottom Gasket kit

D1146T Cylinder Head gasket

D1146T Rod / Pin Bushing

D1146T Camshaft Bushing / Bearing

D1146T Thrust Wahser / Bearing

D1146T Water Pump

D1146T Oil Pump

D1146T Valve inlet / exhaust

D1146T Valve Seat in / ex

D1146T Valve Guide

D1146T Valve Tapped , Push Rod, Valve Lock

D1146T Valve Spring, Seat

D1146T Alternator

D1146T Stater

D1146T Turbocharger

D1146T Oil Cooler Core, Cover

D1146T Injector Sleeve

D1146T Piston Cooling Nollze

D1146T Rocker Arm

D1146T Manifold In & Ex

D1146T Flywheel

D1146T Con rod Bolt. Head Bolt

65.01101-6040E 65.01101-6040F 65.01101-6040N
65.03101-6495J 65.03101-6495M 65.03101-6495N 65.03101-0295P 65.03101-0295R 65.03101-0295S
65.02101-7540 65.02101-0056 65.02115-0040K Gear
65.04401-0014 65.04401-0014C 65.04501-0057 Gear
65.02401-6101D 65.02401-6101E assy 65.02401-0030 only 65.90020-0009C /D Bolt
65.09100-7038
65.06500-6145A

65.05604-5030
65.05606-5020
65.05601-7138 65.05601-7138A
65.05605-6006 65.05605-0028 65.06301-0160 65.96601-0029 06.01913-3112
65.01110-6351 STD	65.01110-6352 0.25	65.01110-6353 0.5
65.02410-0010 STD	65.02410-0011 0.25	65.02410-0012 0.5
65.01150-0015 2PCS (UPPER) STD 65.01150-0016A 2PCS (LOWER) STD 65.01150-0019 2PCS (0.25) 65.01150-0023A 2PCS (0.25) 65.01150-0020 2PCS (0.50) 65.01150-0024A 2PCS (0.50)
65.01201-0050
NON
65.02501-0785 65.02501-0203A
65.02501-0074 65.02501-0172 65.02501-0779
65.02501-0214
65.02501-0779
65.02502-0010 42X20X95mm ; 06.29020-0126 42X1.75mm
65.02503-8146 Assy 65.02503-0054 TOP 3.5mm 65.02503-0120 2ND 3.5mm 65.02503-0115 OIL 4.0mm
65.99601-D1146
65.99605-D1146
65.03901-0058 65.03901-0058A
65.04101-0041
65.04101-0042
65.03203-1029G
65.03203-1028D
65.03201-1011
65.03201-1011
65.04102-0007
65.04102-6002 EX 65.04102-0004 EX INNER 65.04102-0003 EX OUTER
65.04103-0009
65.04103-0013
65.04902-0009 65.04902-0013
65.04301-0005
65.04104-0006
65.04302-5010
65.04200-6025A 65.04200-6025D 65.04201-5013D 65.04201-5013E 65.04203-5009 SHAFT
65.02405-0015C
65.04410-0017 4 Pcs

Doosan Daewoo Diesel Engine Piston Kit

The following popular Doosan Daewoo engine replacement parts also can be provided too.

1: DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS

2: DL06 DL08 DV11 DV15 D2848 8CYL D2848 10CYL

3: D18 D24 D34 DP086 DP126 DP158 DP180 DP222 P086TI P126TI P158 P180

FAQ

Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.

Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...

Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；

Accepted Payment Currency:USD,CNY;RUBLES

Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

Language Spoken:English,Chinese,Spanish,Portuguese,Russian

Tag:

Bore Diameter:	111.0 mm
No. of Cyl:	L6
Total Length:	121.3 mm
Comp Height:	72.8 mm
Chamber Dia:	60.0 mm
Ring Groove:	3.3DK+3.0+4.0 mm
Pin Size:	42*95 mm

Material:	AL108/AL109
Package:	6 PCS/CTN
Warranty:	1-3 years
Stock:	Yes
Shipping	Air/Sea/Land
Part No:	65.02501-0203A
Oem No.	65.02501-0785A
