3406 3408 3412 Cylinder Liner Sleeve 2W6000 238-2700

Basic Information
Model:3406 3408 3412 3406E 3408E 3412E
Diameter137.16 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:20-26 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


3406 3408 3412 Engine Parts Cylinder Liner Sleeve O-Ring


Inside   Bore:137.16 mm
Bottom   Outside:153.75 mm
Total Length:274.35 mm
Top Outside:165.25 mm
Flange Depth:8.92 mm
Surface Treatment:High Frequency Quenching
FF/SF:FF
Material:Boron alloyed   cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:2W6000
Oem No.238-2700 2382700

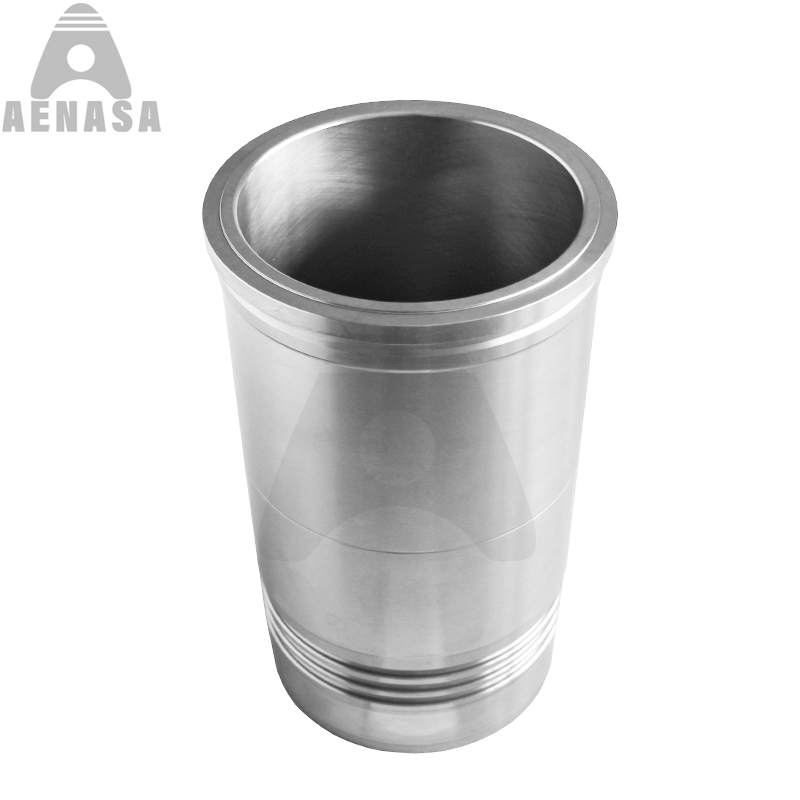

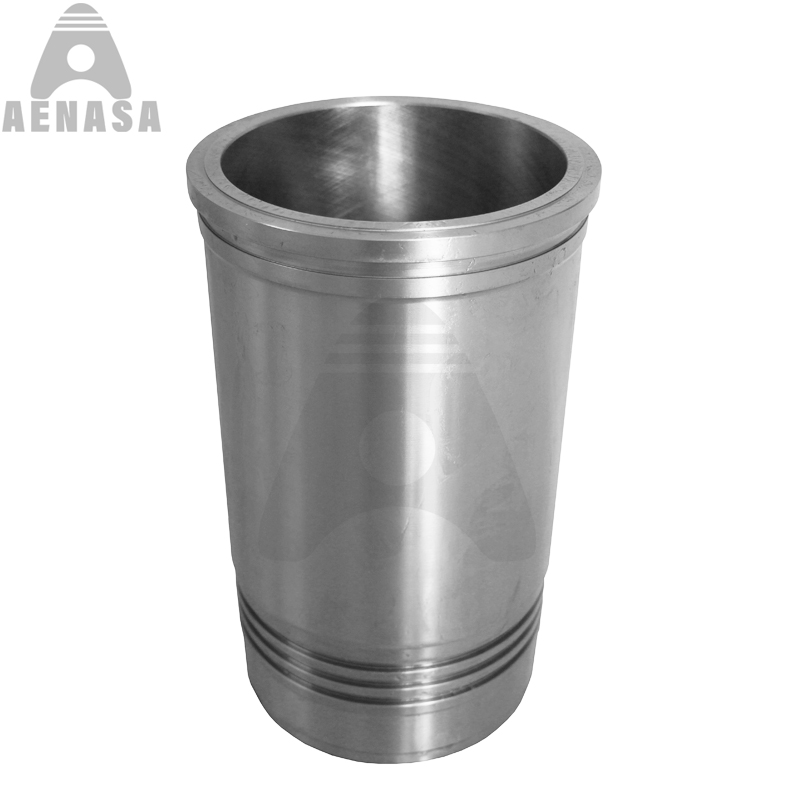

Caterpillar 3406 3408 3412 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:3406E 3408E 3412E
Bore Diamter:137.16 mm
Oem Part Number: 238-2700  2W6000
Unit Weight(kg): 7.6 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing

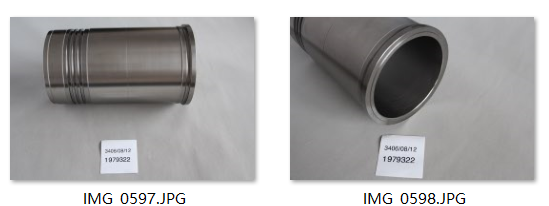

More Photos Of  3406 3408 3412 Sleeve



We also can provide the other engine repair overhaul  parts for 3406 3408 3412 Diesel Engine:


3406 3408 3412   Cylinder Block

3406 3408 3412   Cylinder Head

3406 3408 3412   Cylinder Liner

3406 3408 3412   Crankshaft  &  Gear

3406 3408 3412   Camshaft & Gear

3406 3408 3412   Connecting Rod

3406 3408 3412   Connecting Rod Bushing

3406 3408 3412   Crankshaft Metal /Main Bearing

3406 3408 3412   Con Rod Metal/ Con Rod Bearing

3406 3408 3412   Piston & Pin & Lock Ring

3406 3408 3412   Piston Ring Set

3406 3408 3412   Overhaul Full Complete Gasket Kit Set

3406 3408 3412   Head / Upper Gasket Kit

3406 3408 3412   Block / Lower / Bottom Gasket kit

3406 3408 3412   Cylinder Head gasket

3406 3408 3412   Rod / Pin Bushing

3406 3408 3412   Camshaft Bushing / Bearing

3406 3408 3412   Thrust Wahser / Bearing

3406 3408 3412   Water Pump

3406 3408 3412   Oil Pump

3406 3408 3412   Valve inlet / exhaust

3406 3408 3412   Valve Seat in / ex

3406 3408 3412   Valve Guide

3406 3408 3412   Valve Tapped , Push Rod, Valve Lock

3406 3408 3412   Valve Spring,  Seat

3406 3408 3412   Alternator

3406 3408 3412   Stater

3406 3408 3412   Turbocharger

3406 3408 3412   Oil Cooler Core, Cover

3406 3408 3412   Injector Sleeve

3406 3408 3412   Piston Cooling Nollze

3406 3408 3412   Rocker Arm

3406 3408 3412   Manifold In & Ex

3406 3408 3412   Flywheel

3406 3408 3412   Con rod Bolt. Head Bolt


3406E 3408E 3412E   Cylinder Block

3406E 3408E 3412E   Cylinder Head

3406E 3408E 3412E   Cylinder Liner

3406E 3408E 3412E   Crankshaft  &  Gear

3406E 3408E 3412E   Camshaft & Gear

3406E 3408E 3412E   Connecting Rod

3406E 3408E 3412E   Connecting Rod Bushing

3406E 3408E 3412E   Crankshaft Metal /Main Bearing

3406E 3408E 3412E   Con Rod Metal/ Con Rod Bearing

3406E 3408E 3412E   Piston & Pin & Lock Ring

3406E 3408E 3412E   Piston Ring Set

3406E 3408E 3412E   Overhaul Full Complete Gasket Kit Set

3406E 3408E 3412E   Head / Upper Gasket Kit

3406E 3408E 3412E   Block / Lower / Bottom Gasket kit

3406E 3408E 3412E   Cylinder Head gasket

3406E 3408E 3412E   Rod / Pin Bushing

3406E 3408E 3412E   Camshaft Bushing / Bearing

3406E 3408E 3412E   Thrust Wahser / Bearing

3406E 3408E 3412E   Water Pump

3406E 3408E 3412E   Oil Pump

3406E 3408E 3412E   Valve inlet / exhaust

3406E 3408E 3412E   Valve Seat in / ex

3406E 3408E 3412E   Valve Guide

3406E 3408E 3412E   Valve Tapped , Push Rod, Valve Lock

3406E 3408E 3412E   Valve Spring,  Seat

3406E 3408E 3412E   Alternator

3406E 3408E 3412E   Stater

3406E 3408E 3412E   Turbocharger

3406E 3408E 3412E   Oil Cooler Core, Cover

3406E 3408E 3412E   Injector Sleeve

3406E 3408E 3412E   Piston Cooling Nollze

3406E 3408E 3412E   Rocker Arm

3406E 3408E 3412E   Manifold In & Ex

3406E 3408E 3412E   Flywheel

3406E 3408E 3412E   Con rod Bolt. Head Bolt


The following popular Caterpillar  engine replacement parts also can be provided too.


D-Series:               D330  D333 D342 D343 D353

30-Series:              3013C  3014 3024 3024C 3044C 3044T 3046 3054 3054B 3054C 3054E 3056 3056B 3056E 3064 3066

31/32/33-Series:   3114 3116 3126 3176 3196  3204 3208 3304-DI 3304-PC 3306-DI 3306-PC

34/35-Series:        3406-O 3406E  3408 3408E  3412 3412E 3508 3512 3516

C-Series:               C1.1 C1.5 C1.7 C2.2 C3.3 C3.4 C3.4B C4.2 C4.4-EI C4.4-DI C6.4 C6.6-EI C6.6-DI C7.1-DI C7.1-EI C7.2 C9.3 C9.3B

C-Series:               C7 C9 C-9 C10 C11 C12 C13 C15 C16  C18 C27 C32
