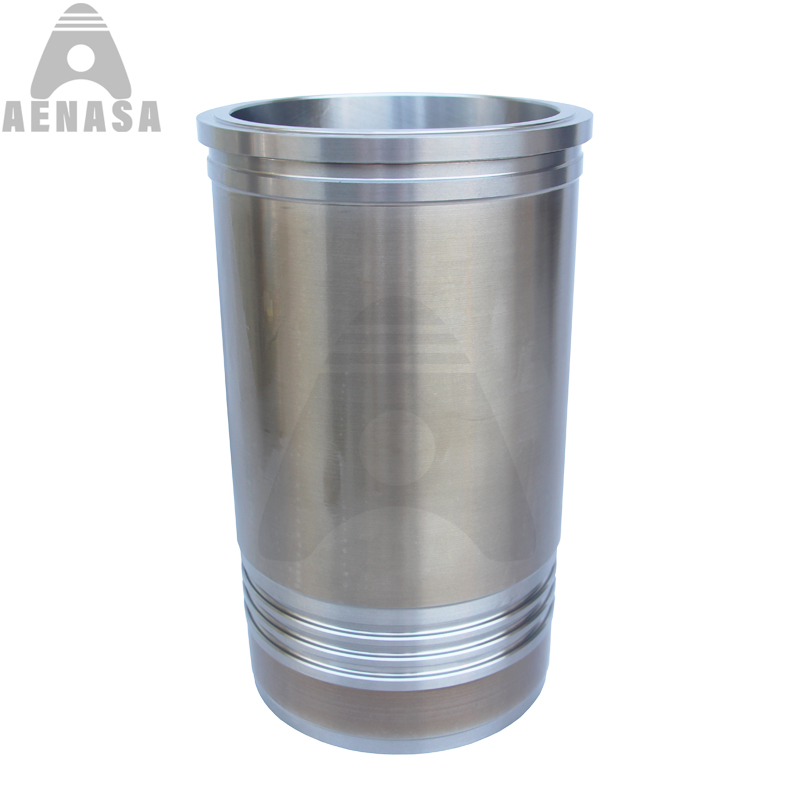

C15 Cylinder Liner Sleeve 197-9322 Caterpillar Engine Spare Parts

Basic Information
Model:C15
Diameter137.16 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Standard:GB/T1150-2010; JB/NQ   56.156.3-87
Place of   Origin:Henan Province, China
MOQ:10 Sets
Price:Negotiable
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Inside   Bore:137.16 mm
Material:AL108/AL109
Bottom   Outside:153.75 mm
Package:6 PCS/CTN
Total Length:274.35 mm
Warranty:1-3 years
Top Outside:165.25 mm
Stock:Yes
Flange Depth:8.92 mm
ShippingAir/Sea/Land
Surface   Treatment:P/White
Part No:197-9322
FinishedFF
Oem No.2W6000


Caterpillar C15 Diesel Engine Spare Parts Cylinder Sleeve Liner O-ring 197-9322 2W6000


Engine   Model:C15
Engine Type:Diesel Engine
Liner TypeWet
Bore Diamter:137.16 mm
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction Hardening
Oem Part Number: 197-9322 2W6000
Unit Weight(kg): 9.68 Kg

-------------------------------------------------------------------------------------------------------------------------

About the C15 Diesel Engine, the following spare parts also can be provided, if any intersest, please feel free to contact with us.


C15       Cylinder Block

C15       Cylinder Head

C15       Cylinder Liner

C15       Crankshaft  &  Gear

C15       Camshaft & Gear

C15       Connecting Rod

C15       Connecting Rod Bushing

C15       Crankshaft Metal /Main Bearing

C15       Con Rod Metal/ Con Rod Bearing

C15       Piston & Pin & Lock Ring

C15       Piston Ring Set

C15       Overhaul Full Complete Gasket Kit Set

C15       Head / Upper Gasket Kit

C15       Block / Lower / Bottom Gasket kit

C15       Cylinder Head gasket

C15       Rod / Pin Bushing

C15       Camshaft Bushing / Bearing

C15       Thrust Wahser / Bearing

C15       Water Pump

C15       Oil Pump

C15       Valve inlet / exhaust

C15       Valve Seat in / ex

C15       Valve Guide

C15       Valve Tapped , Push Rod, Valve Lock

C15       Valve Spring,  Seat

C15       Alternator

C15       Stater

C15       Turbocharger

C15       Oil Cooler Core, Cover

C15       Injector Sleeve

C15       Piston Cooling Nollze

C15       Rocker Arm

C15       Manifold In & Ex

C15       Flywheel

C15       Con rod Bolt. Head Bolt

--------------------------------------------------------------------------------------------------------------------

The following popular Caterpillar  engine replacement parts also can be provided too.


D-Series:    D330  D333 D342 D343 D353

30-Series:   3013C  3014 3024 3024C 3044C 3044T 3046 3054 3054B 3054C 3054E 3056 3056B 3056E 3064 3066

31/32/33-Series:   3114 3116 3126 3176 3196  3204 3208 3304-DI 3304-PC 3306-DI 3306-PC

34/35-Series:   3406-O 3406E  3408 3408E  3412 3412E 3508 3512 3516

C-Series:    C1.1 C1.5  C2.2 C3.3 C3.4 C3.4B C4.2 C4.4-EI C4.4-DI C6.4 C6.6-EI C6.6-DI C7.1-DI C7.1-EI C7.2 C9.3 C9.3B

C-Series:    C7 C9 C-9 C10 C11 C12 C13 C15 C16  C18 C27 C32

------------------------------------------------------------------------------------------------------------------------
