Model: | D4DA D4DB D4DC D4DD |
Diameter | 104.0 mm |
Brand: | AENASA |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 8-12 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |

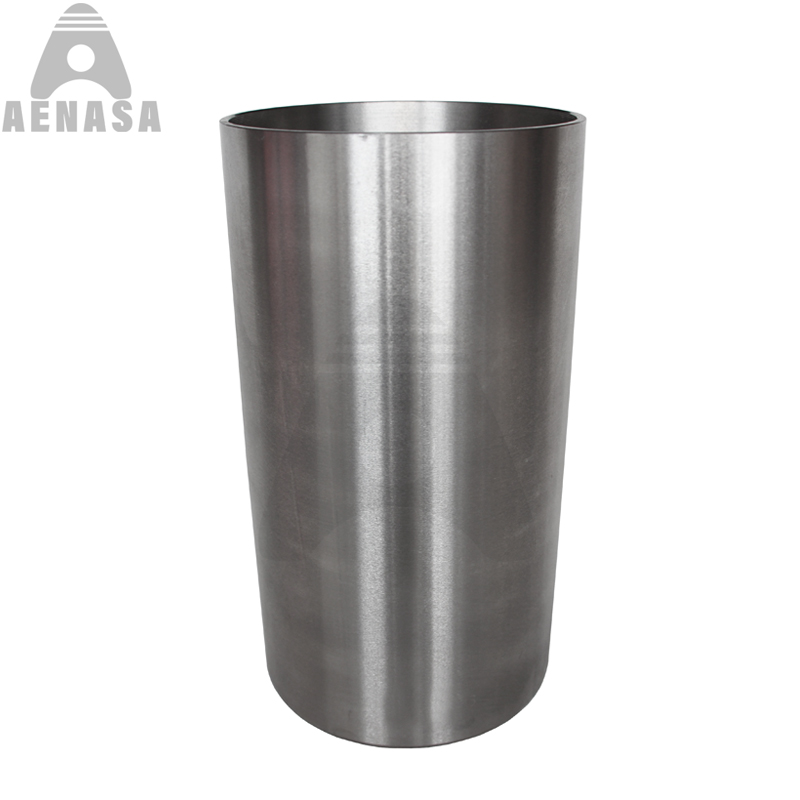

Hyundai D4DA D4DB D4DC D4DD Engine Parts Cylinder Liner Sleeve O-Ring
Inside Bore: | 104.0 mm |
Bottom Outside: | 108.0 mm |
Total Length: | 200.0 mm |
Top Outside: | 108.0 mm |
Flange Depth: | 0+0.0 mm |
Surface Treatment: | White |
FF/SF: | FF |
Material: | Boron alloyed cast iron |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 21131-45900 |
Oem No. | 21131-45000 |
Hyundai D4DA D4DB D4DC D4DD Diesel Engine Spare Parts Cylinder Liner Sleeve
Engine Model: | D4DA D4DB D4DC D4DD |
Bore Diamter: | 104.0 mm |
Oem Part Number: | 21131-45900 21131-45000 |
Unit Weight(kg): | 1.0 Kg |
Engine Type: | Diesel Engine |
Liner Type | Wet / Dry / Steel / Cast Iron |
Material: | Boron alloyed cast iron / Steel |
Finished: | F/F; S/F |
Surface Treatment: | Chrome/Phosphated/Nitrided/Induction Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma BSI composite CVD /thermal spraying |
Anilox Technology: | With platform honing anilox, (spiral) sliding honing anilox, laser honing anilox, brush honing, honing |
More photos:
We also can provide the other engine repair overhaul parts for D4DA D4DB D4DC D4DD Diesel Engine:
D4DC Cylinder Block
D4DC Cylinder Head
D4DC Cylinder Liner
D4DC Crankshaft & Gear
D4DC Camshaft & Gear
D4DC Connecting Rod
D4DC Connecting Rod Bushing
D4DC Crankshaft Metal /Main Bearing
D4DC Con Rod Metal/ Con Rod Bearing
D4DC Piston & Pin & Lock Ring
D4DC Piston Ring Set
D4DC Overhaul Full Complete Gasket Kit Set
D4DC Head / Upper Gasket Kit
D4DC Block / Lower / Bottom Gasket kit
D4DC Cylinder Head gasket
D4DC Rod / Pin Bushing
D4DC Camshaft Bushing / Bearing
D4DC Thrust Wahser / Bearing
D4DC Water Pump
D4DC Oil Pump
D4DC Valve inlet / exhaust
D4DC Valve Seat in / ex
D4DC Valve Guide
D4DC Valve Tapped , Push Rod, Valve Lock
D4DC Valve Spring, Seat
D4DC Alternator
D4DC Stater
D4DC Turbocharger
D4DC Oil Cooler Core, Cover
D4DC Injector D4DCeeve
D4DC Piston Cooling Nollze
D4DC Rocker Arm
D4DC Manifold In & Ex
D4DC Flywheel
D4DC Con rod Bolt. Head Bolt
The following popular Hyundai Liners engine replacement parts also can be provided too.
1: D3FA D3FA D3EA D4FA D4FC CRDi D4FC CRDi D4FB D4FD CRDi D4FB D4FB D4FD
2: D4EA D4EA TciD4EA D4HA D4HA D6EA TCi D4HB D4HB D4EB-F/D4EB-G
3: D4CB CRDi D4CB TCi (VGT) D4CB TCi D4BA D4BB D4BF D4BX D4BX New D4BH D4BH Tci D4BH
4: D4AE/D4AL D4AK D4GA D4GA D4AF D4DA D4AF-N D4DC11 D4DA D4DB D4DB D4DD
5: D4GA D6GA D6DA D6BR D6BT D6BJ D6HA TCi D6AB-TCi D6AC D6AU D6AV TCi D6CA D6CB D6CC
6: D8AB D8AX D8AY

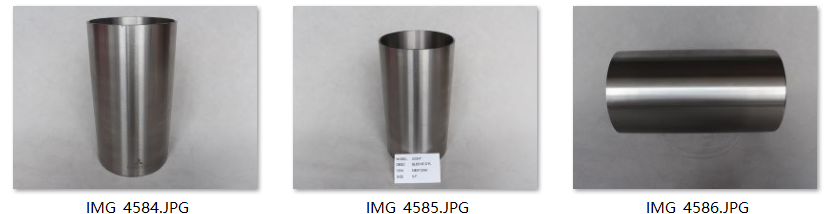

Hyundai YPR Diesel Engine Cylinder Liner Sleeve Photos:
