Model: | DL08 |
Diameter | 108.0 mm |
Brand: | AENASA |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 8-13 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |

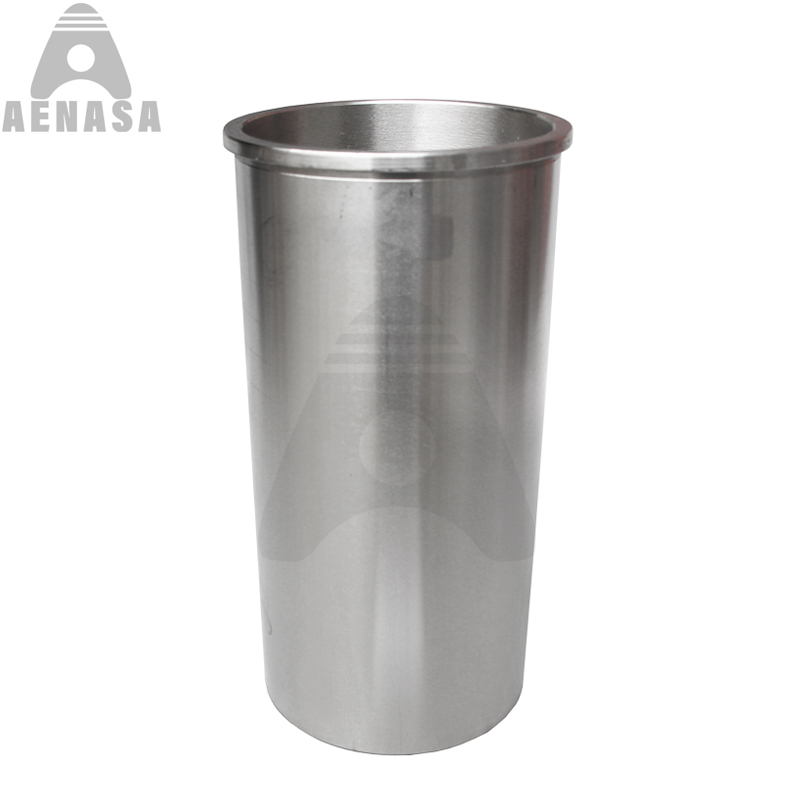

Doosan DL08 Engine Parts Cylinder Liner Sleeve O-Ring
Inside Bore: | 108.0 mm |
Bottom Outside: | 113.0 mm |
Total Length: | 232.0 mm |
Top Outside: | 120.0 mm |
Flange Depth: | 5.5+0.0 mm |
Surface Treatment: | White |
FF/SF: | FF |
Material: | Boron alloyed cast iron |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 65.01201-0074 |
Oem No. | 150117-00050 |
Daewoo DL08 Diesel Engine Spare Parts Cylinder Liner Sleeve
Engine Model: | DL08 |
Bore Diamter: | 108.0 mm |
Oem Part Number: | 65.01201-0074 150117-00050 |
Unit Weight(kg): | 1.0 Kg |
Engine Type: | Diesel Engine |
Liner Type | Wet / Dry / Steel / Cast Iron |
Material: | Boron alloyed cast iron / Steel |
Finished: | F/F; S/F |
Surface Treatment: | Chrome/Phosphated/Nitrided/Induction Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma BSI composite CVD /thermal spraying |
Anilox Technology: | With platform honing anilox, (spiral) sliding honing anilox, laser honing anilox, brush honing, honing |
More photos:
We also can provide the other engine repair overhaul parts for DL08 Diesel Engine:
DL08 Cylinder Block
DL08 Cylinder Head
DL08 Cylinder Liner
DL08 Crankshaft & Gear
DL08 Camshaft & Gear
DL08 Connecting Rod
DL08 Connecting Rod Bushing
DL08 Crankshaft Metal /Main Bearing
DL08 Con Rod Metal/ Con Rod Bearing
DL08 Piston & Pin & Lock Ring
DL08 Piston Ring Set
DL08 Overhaul Full Complete Gasket Kit Set
DL08 Head / Upper Gasket Kit
DL08 Block / Lower / Bottom Gasket kit
DL08 Cylinder Head gasket
DL08 Rod / Pin Bushing
DL08 Camshaft Bushing / Bearing
DL08 Thrust Wahser / Bearing
DL08 Water Pump
DL08 Oil Pump
DL08 Valve inlet / exhaust
DL08 Valve Seat in / ex
DL08 Valve Guide
DL08 Valve Tapped , Push Rod, Valve Lock
DL08 Valve Spring, Seat
DL08 Alternator
DL08 Stater
DL08 Turbocharger
DL08 Oil Cooler Core, Cover
DL08 Injector DL08eeve
DL08 Piston Cooling Nollze
DL08 Rocker Arm
DL08 Manifold In & Ex
DL08 Flywheel
DL08 Con rod Bolt. Head Bolt
The following popular Doosan Liners engine replacement parts also can be provided too.
1: DB33 DB58 DB58TIS DE08TS DE08TIS D1146 D1146T D2366 D2366T DE12T DE12TIS
2: DL06 DL08 DV11 DV15 D2848 8CYL D2848 10CYL
3: D18 D24 D34 DP086 DP126 DP158 DP180 DP222 P086TI P126TI P158 P180

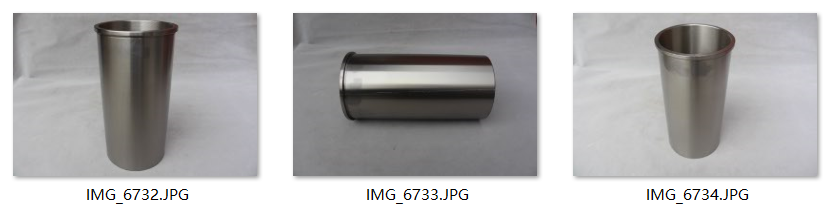

Doosan Daewoo YPR Diesel Engine Cylinder Liner Sleeve Photos:
FAQ
Q1: Who are we?
A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,
Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3. What can you buy from us?
A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.
Q4. Why should you buy from us not from other suppliers?
A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture
We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...
Q5. What services can we provide?
A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,CNY;RUBLES
Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
