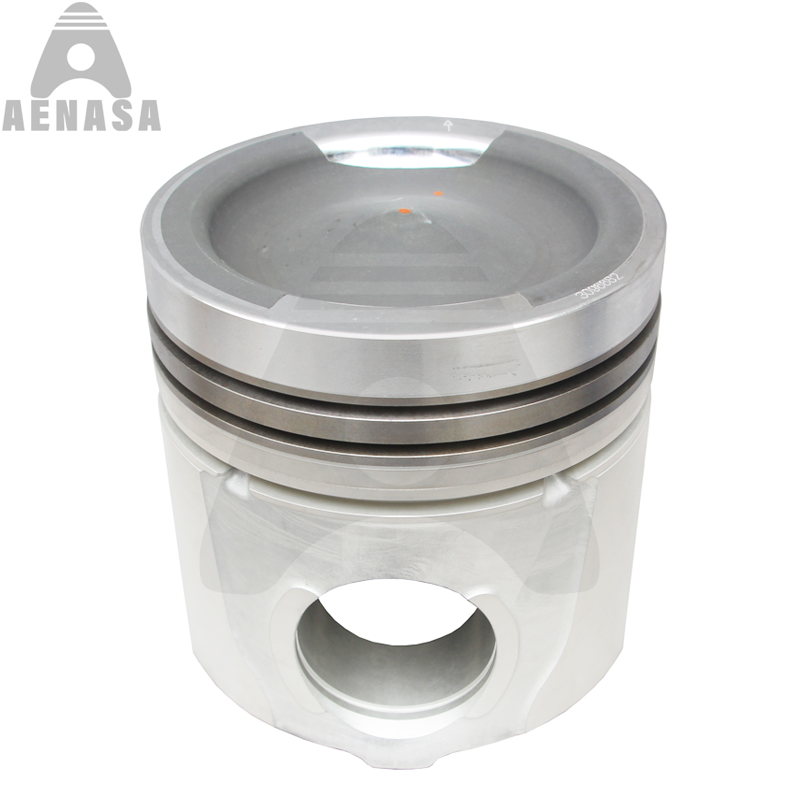

K19 Engine Parts Piston 3096682

Basic Information
Model:K19 KT19 KTA19
Diameter158.75 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:40-55 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:158.75 mm
No. of   Cyl: L6
Total Length:161.9 mm
Comp Height:111.68 mm
Chamber Dia:122.5 mm
Ring Groove:3.8DK+3.7DK+4.8
Pin Size:61*133 mm


Package:4/6/8PCS/CTN
Warranty:3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:3096682 3096683
Oem No.3096682 3096684



CUMMINS K19 KT19 KTA19 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:K19 KT19 KTA19
Engine Type:Diesel Engine
Bore Diamter:158.75 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 3096680 3096681 3096682 3096683 3096684
Unit Weight(kg): 3.6 kg

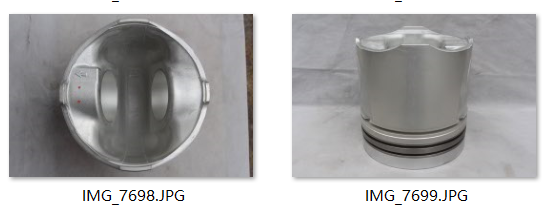

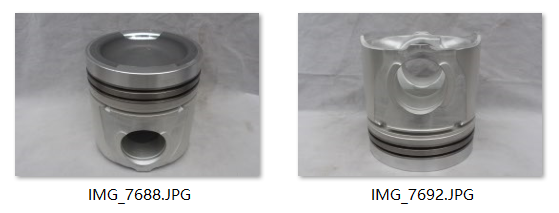

CUMMINS K19 KT19 KTA19  PISTON MORE PHOTOS





Cummins Engine Parts Piston




About the K19 Diesel Engine, the following spare parts also can be provided, if any intersest, please feel free to contact with us.


KT19 Cylinder Block

KT19 Cylinder Head

KT19 Cylinder Liner

KT19 Crankshaft  &  Gear

KT19 Camshaft & Gear

KT19 Connecting Rod

KT19 Connecting Rod Bushing

KT19 Crankshaft Metal /Main Bearing

KT19 Con Rod Metal/ Con Rod Bearing

KT19 Piston & Pin & Lock Ring

KT19 Piston Ring Set

KT19 Overhaul Full Complete Gasket Kit Set

KT19 Head / Upper Gasket Kit

KT19 Block / Lower / Bottom Gasket kit

KT19 Cylinder Head gasket

KT19 Rod / Pin Bushing

KT19 Camshaft Bushing / Bearing

KT19 Thrust Wahser / Bearing

KT19 Water Pump

KT19 Oil Pump

KT19 Valve inlet / exhaust

KT19 Valve Seat in / ex

KT19 Valve Guide

KT19 Valve Tapped , Push Rod, Valve Lock

KT19 Valve Spring,  Seat

KT19 Alternator

KT19 Stater

KT19 Turbocharger

KT19 Oil Cooler Core, Cover

KT19 Injector Sleeve

KT19 Piston Cooling Nollze

KT19 Rocker Arm

KT19 Manifold In & Ex

KT19 Flywheel

KT19 Con rod Bolt. Head Bolt


CUMMINS  K19  ENGINE PISTON WE CAN SUPPLY:


Cummins K19 Piston 3096680 3096681 3096682 3096683 3096684

Cummins K19 Piston 3096685

Cummins K19 Piston 3707704 3707705 3707706 3707707 3707708

Cummins K19 Piston 3081725

Cummins K19 Piston 8081890

Cummins K19 Piston 3630913

Cummins K19 Piston 4913795

Cummins KT50 Piston 3630916

Cummins K19 Piston 3629731


AE ENGINE PARTS PISTON STRUCTURES


AE PISTON STRUCTURE.jpg

CUMMINS ENGINE MODELS:


1:    A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:    B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:    4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:    ISBE 4ISBe 6ISBe QSC ISC8.3

5:    L375 T375 L375 ISL QSL ISLe

6:    L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14  QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QST30
