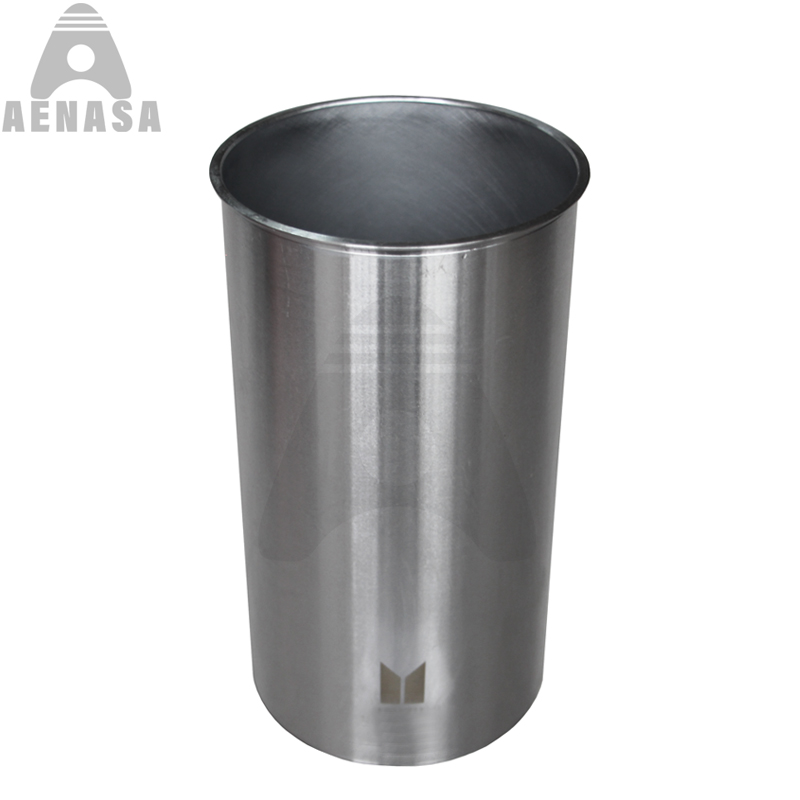

4JG1 4JG2 4JH1 Cylinder Liner Sleeve 8-97176-702-0 8-94456-791-0

Basic Information
Model:4JG1 4JG2 4JH1
Diameter95.4 mm
Brand:AENASA
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:9-12 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Isuzu 4JG1 4JG2 4JH1 Engine Parts Cylinder Liner Sleeve O-Ring


Inside Bore:95.4 mm
Bottom Outside:97.0 mm
Total Length:178.0 mm
Top Outside:102.42 mm
Flange Depth:1.15+0.0 mm
Surface Treatment:Chrome
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:8-97176-702-0 8-94456-791-0
Oem No.8-97176-699-0 8-97176-700-0


Isuzu 4JG1 4JG2 4JH1 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:4JG1 4JG2 4JH1
Bore Diamter:95.4 mm
Oem Part Number: 8-97176-701-0  8-97176-702-0  8-97176-703-0 8-97176-704-0 8-97176-705-0 8-97176-706-0
Unit Weight(kg): 0.7 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing

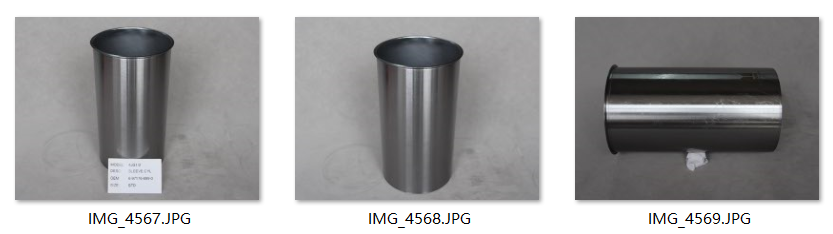

More photos:


We also can provide the other engine repair overhaul  parts for 4JG1 4JG2 4JH1 Diesel Engine:

4JG1 Cylinder Block

4JG1 Cylinder Head

4JG1 Cylinder Liner

4JG1 Crankshaft  &  Gear

4JG1 Camshaft & Gear

4JG1 Connecting Rod

4JG1 Connecting Rod Bushing

4JG1 Crankshaft Metal /Main Bearing

4JG1 Con Rod Metal/ Con Rod Bearing

4JG1 Piston & Pin & Lock Ring

4JG1 Piston Ring Set

4JG1 Overhaul Full Complete Gasket Kit Set

4JG1 Head / Upper Gasket Kit

4JG1 Block / Lower / Bottom Gasket kit

4JG1 Cylinder Head gasket

4JG1 Rod / Pin Bushing

4JG1 Camshaft Bushing / Bearing

4JG1 Thrust Wahser / Bearing

4JG1 Water Pump

4JG1 Oil Pump

4JG1 Valve inlet / exhaust

4JG1 Valve Seat in / ex

4JG1 Valve Guide

4JG1 Valve Tapped , Push Rod, Valve Lock

4JG1 Valve Spring,  Seat

4JG1 Alternator

4JG1 Stater

4JG1 Turbocharger

4JG1 Oil Cooler Core, Cover

4JG1 Injector Sleeve

4JG1 Piston Cooling Nollze

4JG1 Rocker Arm

4JG1 Manifold In & Ex

4JG1 Flywheel

4JG1 Con rod Bolt. Head Bolt

4JG2 Cylinder Block

4JG2 Cylinder Head

4JG2 Cylinder Liner

4JG2 Crankshaft  &  Gear

4JG2 Camshaft & Gear

4JG2 Connecting Rod

4JG2 Connecting Rod Bushing

4JG2 Crankshaft Metal /Main Bearing

4JG2 Con Rod Metal/ Con Rod Bearing

4JG2 Piston & Pin & Lock Ring

4JG2 Piston Ring Set

4JG2 Overhaul Full Complete Gasket Kit Set

4JG2 Head / Upper Gasket Kit

4JG2 Block / Lower / Bottom Gasket kit

4JG2 Cylinder Head gasket

4JG2 Rod / Pin Bushing

4JG2 Camshaft Bushing / Bearing

4JG2 Thrust Wahser / Bearing

4JG2 Water Pump

4JG2 Oil Pump

4JG2 Valve inlet / exhaust

4JG2 Valve Seat in / ex

4JG2 Valve Guide

4JG2 Valve Tapped , Push Rod, Valve Lock

4JG2 Valve Spring,  Seat

4JG2 Alternator

4JG2 Stater

4JG2 Turbocharger

4JG2 Oil Cooler Core, Cover

4JG2 Injector Sleeve

4JG2 Piston Cooling Nollze

4JG2 Rocker Arm

4JG2 Manifold In & Ex

4JG2 Flywheel

4JG2 Con rod Bolt. Head Bolt

4JH1 Cylinder Block

4JH1 Cylinder Head

4JH1 Cylinder Liner

4JH1 Crankshaft  &  Gear

4JH1 Camshaft & Gear

4JH1 Connecting Rod

4JH1 Connecting Rod Bushing

4JH1 Crankshaft Metal /Main Bearing

4JH1 Con Rod Metal/ Con Rod Bearing

4JH1 Piston & Pin & Lock Ring

4JH1 Piston Ring Set

4JH1 Overhaul Full Complete Gasket Kit Set

4JH1 Head / Upper Gasket Kit

4JH1 Block / Lower / Bottom Gasket kit

4JH1 Cylinder Head gasket

4JH1 Rod / Pin Bushing

4JH1 Camshaft Bushing / Bearing

4JH1 Thrust Wahser / Bearing

4JH1 Water Pump

4JH1 Oil Pump

4JH1 Valve inlet / exhaust

4JH1 Valve Seat in / ex

4JH1 Valve Guide

4JH1 Valve Tapped , Push Rod, Valve Lock

4JH1 Valve Spring,  Seat

4JH1 Alternator

4JH1 Stater

4JH1 Turbocharger

4JH1 Oil Cooler Core, Cover

4JH1 Injector Sleeve

4JH1 Piston Cooling Nollze

4JH1 Rocker Arm

4JH1 Manifold In & Ex

4JH1 Flywheel

4JH1 Con rod Bolt. Head Bolt

The following popular Isuzu  Liners engine replacement parts also can be provided too.


1: 3KB1 3KC1 3KR1 3KR2 3LA1 3LB1 3LD1 3LD2 4LB1 4LE1 4LE2-DI 4LE2-EI

2: 4EC1 4EE1 4EE1T 4EE2 4FA1 4FB1 4FC1 4FD1 4FG1

3: C190 C221 C223 C240 C330 DA120 DA220 DA640

4: 4JA1 4JA1T 4JB1 4JB1T 4JC1 4JE1 4JG1 4JG2 4JG2T 4JX1 4JH1-TC 4JJ1-TC 4JK1-TC

5: 4BA1 4BB1 4BC1 4BC2 4BD1 4BD1T 4BD2 4BD2T 4BE1 4BG1 4BG1T

6: 4HE1 4HE1-TC 4HF1 4HG1 4HG1T 4HK1-700P 4HK1-TC 4HJ1 4HL1

7: 6BB1 6BD1 6BD1T 6BG1 6BG1T 6BG1-TC(3R/4R) 6BF1

8: 6HE1 6HE1-TC 6HH1 6HK1T  6HK1-TC 6HL1 6HL1-TC

9: 6SA1 6SA1T 6SD1 6SD1T 6SD1-TC 6UZ1 6QA1

10: 6WA1 6WA1-TC 6WG1 6WG1T-DI 6WG1T-EI 6WF1

11: E120 E120T 6RA1 6RA1T 6RB1 6RB1T

12:  8PA1 10PA1 12PA1 8PB1 10PB1 12PB1 8PC1 8PC1T 10PC1 10PC1T 12PC1 12PC1T 8PD1 10PD1 12PD1 8PE1 10PE1 12PE1


ISUZU NPR TP Diesel Engine Cylinder Liner Sleeve Photos:

ISUZU CYLINDER LINER.jpg
