4HG1 Cylinder Liner Sleeve 8-97176-729-0 8-97351-558-0 8-98014-048-0

Basic Information
Model:4HG1
Diameter115.0 mm
Brand:AENASA
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:9-12 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided

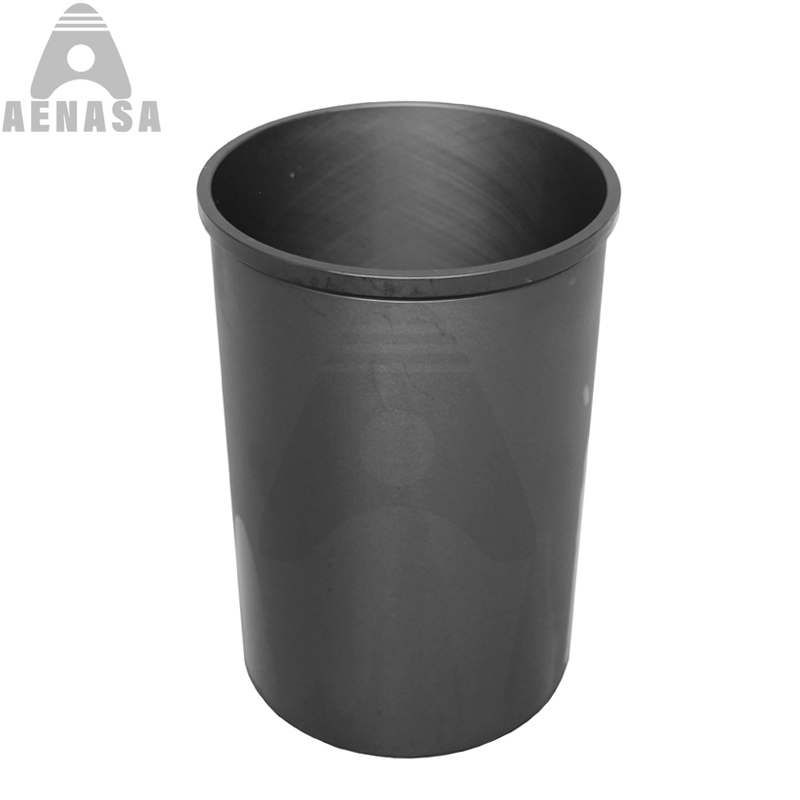

Isuzu 4HG1  Engine Parts Cylinder Liner Sleeve O-Ring


Inside Bore:115.0 mm
Bottom Outside:118.0 mm
Total Length:180.0 mm
Top Outside:123.7 mm
Flange Depth:6.0+0.0 mm
Surface Treatment:Phosphated
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:8-97176-729-0 8-97176-730-0
Oem No.8-97351-558-0 8-97351-559-0


Isuzu 4HG1 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:4HG1
Bore Diamter:115.0 mm
Oem Part Number: 8-98014-048-0 8-97144-178-0
Unit Weight(kg): 0.9 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing


More photos:


We also can provide the other engine repair overhaul  parts for 4HG1  Diesel Engine:

4HG1 Cylinder Block

4HG1 Cylinder Head

4HG1 Cylinder Liner

4HG1 Crankshaft  &  Gear

4HG1 Camshaft & Gear

4HG1 Connecting Rod

4HG1 Connecting Rod Bushing

4HG1 Crankshaft Metal /Main Bearing

4HG1 Con Rod Metal/ Con Rod Bearing

4HG1 Piston & Pin & Lock Ring

4HG1 Piston Ring Set

4HG1 Overhaul Full Complete Gasket Kit Set

4HG1 Head / Upper Gasket Kit

4HG1 Block / Lower / Bottom Gasket kit

4HG1 Cylinder Head gasket

4HG1 Rod / Pin Bushing

4HG1 Camshaft Bushing / Bearing

4HG1 Thrust Wahser / Bearing

4HG1 Water Pump

4HG1 Oil Pump

4HG1 Valve inlet / exhaust

4HG1 Valve Seat in / ex

4HG1 Valve Guide

4HG1 Valve Tapped , Push Rod, Valve Lock

4HG1 Valve Spring,  Seat

4HG1 Alternator

4HG1 Stater

4HG1 Turbocharger

4HG1 Oil Cooler Core, Cover

4HG1 Injector Sleeve

4HG1 Piston Cooling Nollze

4HG1 Rocker Arm

4HG1 Manifold In & Ex

4HG1 Flywheel

4HG1 Con rod Bolt. Head Bolt

The following popular Isuzu  Liners engine replacement parts also can be provided too.


1: 3KB1 3KC1 3KR1 3KR2 3LA1 3LB1 3LD1 3LD2 4LB1 4LE1 4LE2-DI 4LE2-EI

2: 4EC1 4EE1 4EE1T 4EE2 4FA1 4FB1 4FC1 4FD1 4FG1

3: C190 C221 C223 C240 C330 DA120 DA220 DA640

4: 4JA1 4JA1T 4JB1 4JB1T 4JC1 4JE1 4JG1 4JG2 4JG2T 4JX1 4JH1-TC 4JJ1-TC 4JK1-TC

5: 4BA1 4BB1 4BC1 4BC2 4BD1 4BD1T 4BD2 4BD2T 4BE1 4BG1 4BG1T

6: 4HE1 4HE1-TC 4HF1 4HG1 4HG1T 4HK1-700P 4HK1-TC 4HJ1 4HL1

7: 6BB1 6BD1 6BD1T 6BG1 6BG1T 6BG1-TC(3R/4R) 6BF1

8: 6HE1 6HE1-TC 6HH1 6HK1T  6HK1-TC 6HL1 6HL1-TC

9: 6SA1 6SA1T 6SD1 6SD1T 6SD1-TC 6UZ1 6QA1

10: 6WA1 6WA1-TC 6WG1 6WG1T-DI 6WG1T-EI 6WF1

11: E120 E120T 6RA1 6RA1T 6RB1 6RB1T

12:  8PA1 10PA1 12PA1 8PB1 10PB1 12PB1 8PC1 8PC1T 10PC1 10PC1T 12PC1 12PC1T 8PD1 10PD1 12PD1 8PE1 10PE1 12PE1

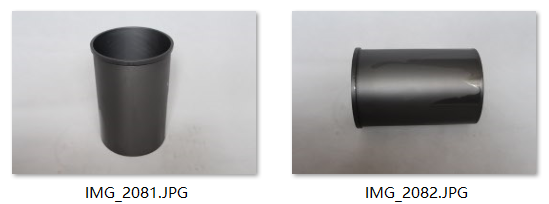

ISUZU NPR TP Diesel Engine Cylinder Liner Sleeve Photos:

ISUZU CYLINDER LINER.jpg


FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

       Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with              Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
