Model: | TD27 |
Diameter | 95.5 mm |
Brand: | AENASA |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 8-11 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |

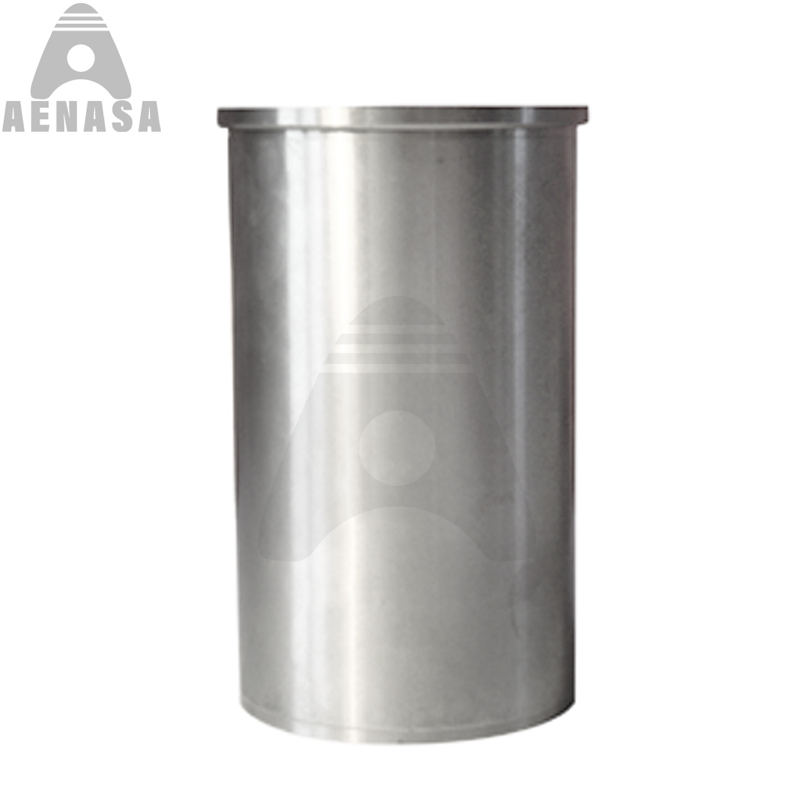

Nissan UD TD27 Engine Parts Cylinder Liner Sleeve O-Ring
Inside Bore: | 95.5 mm |
Bottom Outside: | 99.0 mm |
Total Length: | 160.0 mm |
Top Outside: | 105.0 mm |
Flange Depth: | 5.0+0.0 mm |
Surface Treatment: | Phosphated |
FF/SF: | FF |
Material: | Boron alloyed cast iron |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 11012-43G45 11012-43G00 |
Oem No. | 11012-43G05 11012-43G10 |
Nissan TD27 Diesel Engine Spare Parts Cylinder Liner Sleeve
Engine Model: | TD27 |
Bore Diamter: | 95.5 mm |
Oem Part Number: | 11012-2S040 11012-2S000 |
Unit Weight(kg): | 0.8 Kg |
Engine Type: | Diesel Engine |
Liner Type | Wet / Dry / Steel / Cast Iron |
Material: | Boron alloyed cast iron / Steel |
Finished: | F/F; S/F |
Surface Treatment: | Chrome/Phosphated/Nitrided/Induction Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma BSI composite CVD /thermal spraying |
Anilox Technology: | With platform honing anilox, (spiral) sliding honing anilox, laser honing anilox, brush honing, honing |
More photos:
We also can provide the other engine repair overhaul parts for TD27 Diesel Engine:
TD27 Cylinder Block
TD27 Cylinder Head
TD27 Cylinder Liner
TD27 Crankshaft & Gear
TD27 Camshaft & Gear
TD27 Connecting Rod
TD27 Connecting Rod Bushing
TD27 Crankshaft Metal /Main Bearing
TD27 Con Rod Metal/ Con Rod Bearing
TD27 Piston & Pin & Lock Ring
TD27 Piston Ring Set
TD27 Overhaul Full Complete Gasket Kit Set
TD27 Head / Upper Gasket Kit
TD27 Block / Lower / Bottom Gasket kit
TD27 Cylinder Head gasket
TD27 Rod / Pin Bushing
TD27 Camshaft Bushing / Bearing
TD27 Thrust Wahser / Bearing
TD27 Water Pump
TD27 Oil Pump
TD27 Valve inlet / exhaust
TD27 Valve Seat in / ex
TD27 Valve Guide
TD27 Valve Tapped , Push Rod, Valve Lock
TD27 Valve Spring, Seat
TD27 Alternator
TD27 Stater
TD27 Turbocharger
TD27 Oil Cooler Core, Cover
TD27 Injector Sleeve
TD27 Piston Cooling Nollze
TD27 Rocker Arm
TD27 Manifold In & Ex
TD27 Flywheel
TD27 Con rod Bolt. Head Bolt
The following popular Nissan UD Liners engine replacement parts also can be provided too.
1: K9K G9U M9R M9T G9T TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X
2: LD28 RD28 RD28T M1D CD20 CD20T LD20 LD20T YD22 LD23
3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T
4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32
5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R
6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T PE6 PE6T PF6T
7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
8: A15 H20 H20-II H25 K21 K25 P40 FORKLIFT
Nissan UD NPR TP Diesel Engine Cylinder Liner Sleeve Photos:
FAQ
Q1: Who are we?
A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,
Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3. What can you buy from us?
A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.
Q4. Why should you buy from us not from other suppliers?
A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture
We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...
Q5. What services can we provide?
A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,CNY;RUBLES
Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
