FE6 Cylinder Liner Sleeve 220mm 11012-Z5518 11012-Z5519

Basic Information
Model:FE6
Diameter108.0 mm
Brand:AENASA
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:8-11 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided

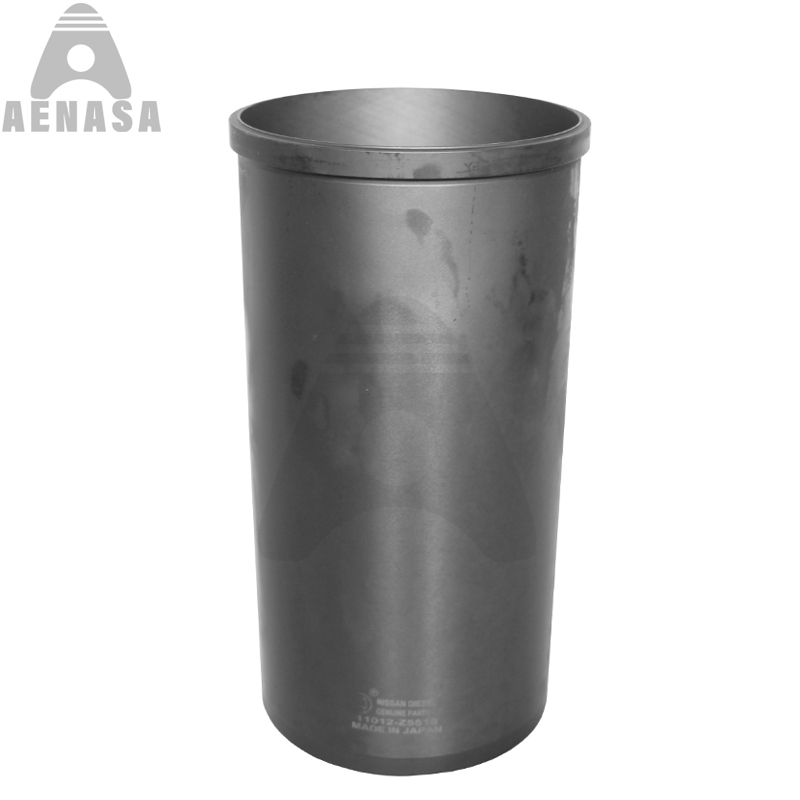

Nissan UD FE6 Engine Parts Cylinder Liner Sleeve O-Ring


Inside Bore:108.0 mm
Bottom Outside:111.0 mm
Total Length:220.0 mm
Top Outside:118.0 mm
Flange Depth:8.0+1.0 mm
Surface Treatment:Phosphated
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:11012-Z5518
Oem No.11012-Z5519


Nissan FE6 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:FE6
Bore Diamter:108.0 mm
Oem Part Number: 11012-Z5518 11012-Z5519
Unit Weight(kg): 1.1 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing

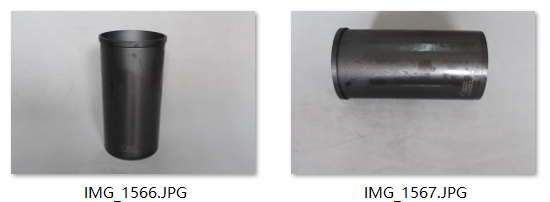

More photos:


We also can provide the other engine repair overhaul  parts for FE6  Diesel Engine:


FE6 Cylinder Block

FE6 Cylinder Head

FE6 Cylinder Liner

FE6 Crankshaft  &  Gear

FE6 Camshaft & Gear

FE6 Connecting Rod

FE6 Connecting Rod Bushing

FE6 Crankshaft Metal /Main Bearing

FE6 Con Rod Metal/ Con Rod Bearing

FE6 Piston & Pin & Lock Ring

FE6 Piston Ring Set

FE6 Overhaul Full Complete Gasket Kit Set

FE6 Head / Upper Gasket Kit

FE6 Block / Lower / Bottom Gasket kit

FE6 Cylinder Head gasket

FE6 Rod / Pin Bushing

FE6 Camshaft Bushing / Bearing

FE6 Thrust Wahser / Bearing

FE6 Water Pump

FE6 Oil Pump

FE6 Valve inlet / exhaust

FE6 Valve Seat in / ex

FE6 Valve Guide

FE6 Valve Tapped , Push Rod, Valve Lock

FE6 Valve Spring,  Seat

FE6 Alternator

FE6 Stater

FE6 Turbocharger

FE6 Oil Cooler Core, Cover

FE6 Injector Sleeve

FE6 Piston Cooling Nollze

FE6 Rocker Arm

FE6 Manifold In & Ex

FE6 Flywheel

FE6 Con rod Bolt. Head Bolt


The following popular Nissan UD Liners engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T

8: A15 H20 H20-II H25 K21 K25 P40 FORKLIFT


Nissan UD NPR TP Diesel Engine Cylinder Liner Sleeve Photos:

NISSAN LINER.jpg


FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

       Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with              Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
