PD6T PD6 Cylinder Liner Sleeve 11012-96000 11012-96001 11012-96009 11012-96010 11012-96011

Basic Information
Model:PD6T PD6
Diameter125.0 mm
Brand:AENASA
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:10-13 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided

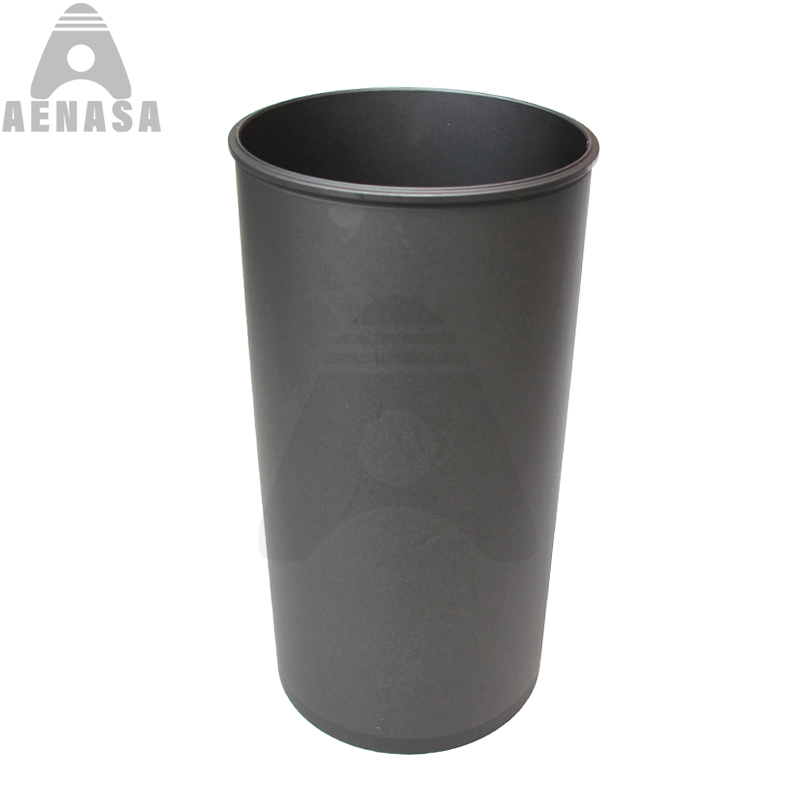

Nissan UD PD6T PD6 Engine Parts Cylinder Liner Sleeve O-Ring


Inside Bore:125.0 mm
Bottom Outside:130.0 mm
Total Length:259.0 mm
Top Outside:134.0 mm
Flange Depth:3.0+1.0 mm
Surface Treatment:Phosphated
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:11012-96000 11012-96001
Oem No.11012-96009 11012-96010


Nissan PD6T PD6 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:PD6T PD6
Bore Diamter:125.0 mm
Oem Part Number: 11012-96011
Unit Weight(kg): 1.1 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing


More phots:


We also can provide the other engine repair overhaul  parts for PD6T PD6 Diesel Engine:

PD6    Cylinder Block

PD6    Cylinder Head

PD6    Cylinder Liner

PD6    Crankshaft  &  Gear

PD6    Camshaft & Gear

PD6    Connecting Rod

PD6    Connecting Rod Bushing

PD6    Crankshaft Metal /Main Bearing

PD6    Con Rod Metal/ Con Rod Bearing

PD6    Piston & Pin & Lock Ring

PD6    Piston Ring Set

PD6    Overhaul Full Complete Gasket Kit Set

PD6    Head / Upper Gasket Kit

PD6    Block / Lower / Bottom Gasket kit

PD6    Cylinder Head gasket

PD6    Rod / Pin Bushing

PD6    Camshaft Bushing / Bearing

PD6    Thrust Wahser / Bearing

PD6    Water Pump

PD6    Oil Pump

PD6    Valve inlet / exhaust

PD6    Valve Seat in / ex

PD6    Valve Guide

PD6    Valve Tapped , Push Rod, Valve Lock

PD6    Valve Spring,  Seat

PD6    Alternator

PD6    Stater

PD6    Turbocharger

PD6    Oil Cooler Core, Cover

PD6    Injector Sleeve

PD6    Piston Cooling Nollze

PD6    Rocker Arm

PD6    Manifold In & Ex

PD6    Flywheel

PD6    Con rod Bolt. Head Bolt

The following popular Nissan UD Liners engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T

8: A15 H20 H20-II H25 K21 K25 P40 FORKLIFT

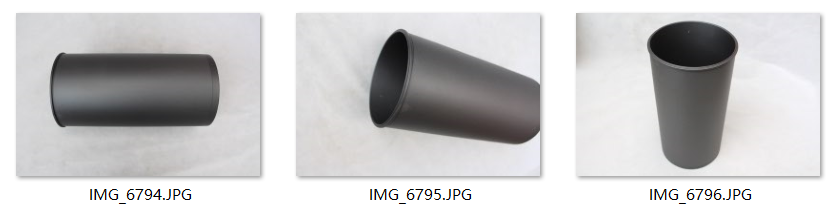

Nissan UD NPR TP Diesel Engine Cylinder Liner Sleeve Photos:

NISSAN LINER.jpg
