PE6T PE6 Cylinder Liner Sleeve 142mm 11012-96500 11012-96501 11012-96502 11012-96503 11012-96561 11012-96562

Basic Information
Model:PE6T PE6
Diameter133.0 mm
Brand:AENASA
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:12-18 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided

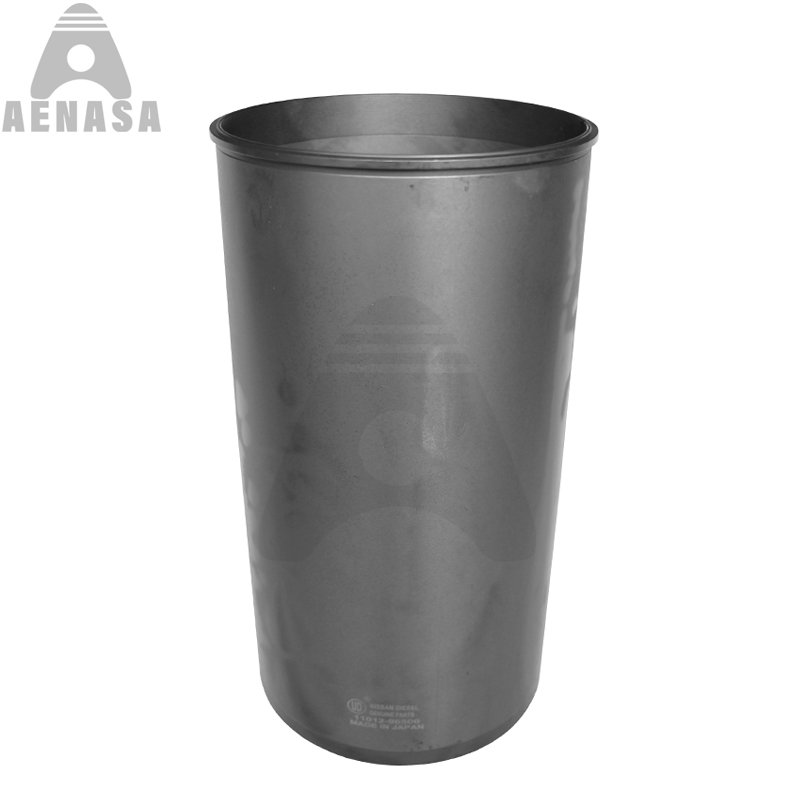

Nissan UD PE6T PE6 Engine Parts Cylinder Liner Sleeve O-Ring


Inside Bore:133.0 mm
Bottom Outside:138.0 mm
Total Length:259.0 mm
Top Outside:142.0 mm
Flange Depth:3.0+1.0 mm
Surface Treatment:Phosphated
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:11012-96500 11012-96501
Oem No.11012-96502 11012-96503


Nissan PE6T PE6 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:PE6T PE6
Bore Diamter:133.0 mm
Oem Part Number: 11012-96561 11012-96562
Unit Weight(kg): 1.3 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing


More phots:


We also can provide the other engine repair overhaul  parts for PE6T PE6 Diesel Engine:

PE6T     Cylinder Block

PE6T     Cylinder Head

PE6T     Cylinder Liner

PE6T     Crankshaft  &  Gear

PE6T     Camshaft & Gear

PE6T     Connecting Rod

PE6T     Connecting Rod Bushing

PE6T     Crankshaft Metal /Main Bearing

PE6T     Con Rod Metal/ Con Rod Bearing

PE6T     Piston & Pin & Lock Ring

PE6T     Piston Ring Set

PE6T     Overhaul Full Complete Gasket Kit Set

PE6T     Head / Upper Gasket Kit

PE6T     Block / Lower / Bottom Gasket kit

PE6T     Cylinder Head gasket

PE6T     Rod / Pin Bushing

PE6T     Camshaft Bushing / Bearing

PE6T     Thrust Wahser / Bearing

PE6T     Water Pump

PE6T     Oil Pump

PE6T     Valve inlet / exhaust

PE6T     Valve Seat in / ex

PE6T     Valve Guide

PE6T     Valve Tapped , Push Rod, Valve Lock

PE6T     Valve Spring,  Seat

PE6T     Alternator

PE6T     Stater

PE6T     Turbocharger

PE6T     Oil Cooler Core, Cover

PE6T     Injector Sleeve

PE6T     Piston Cooling Nollze

PE6T     Rocker Arm

PE6T     Manifold In & Ex

PE6T     Flywheel

PE6T     Con rod Bolt. Head Bolt

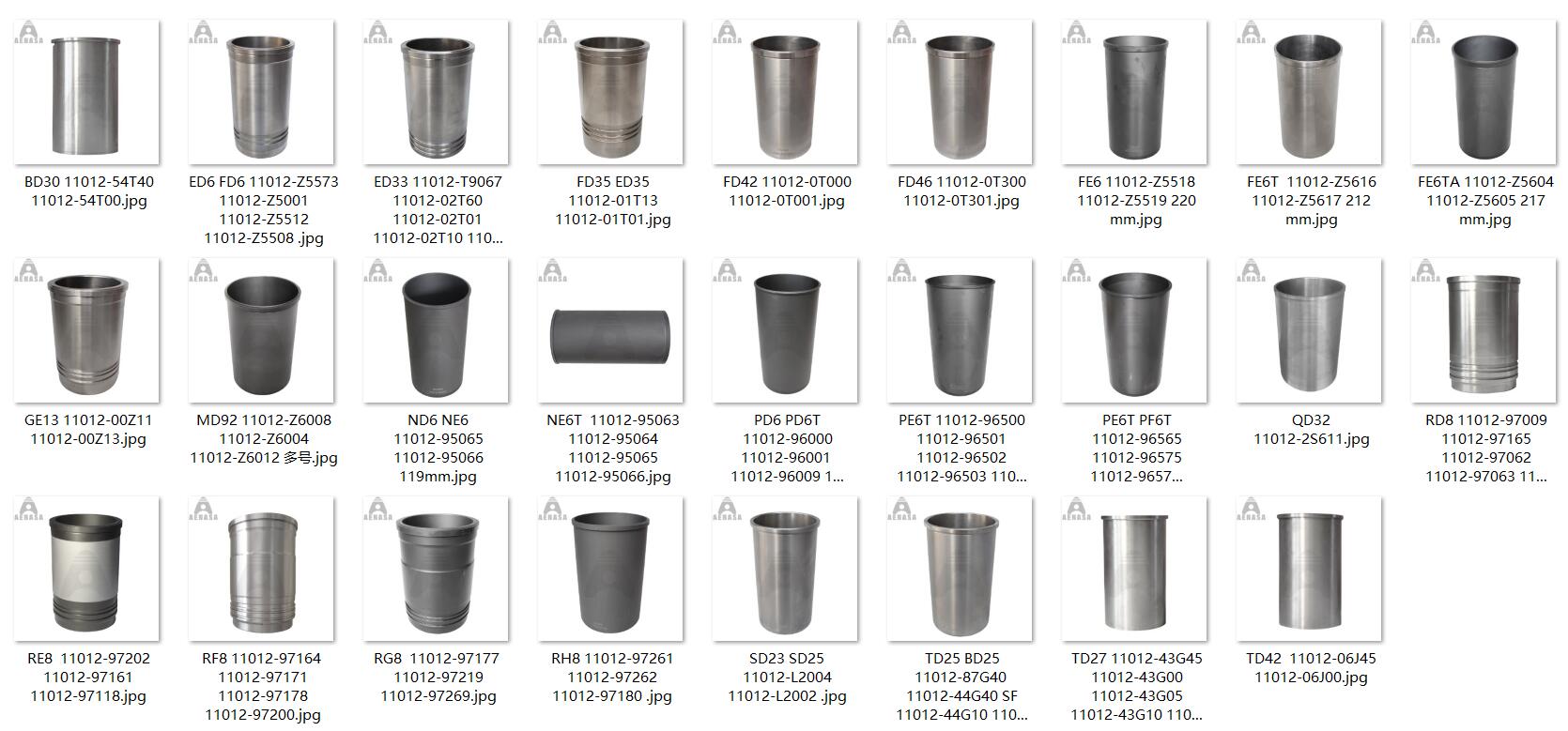

The following popular Nissan UD Liners engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T

8: A15 H20 H20-II H25 K21 K25 P40 FORKLIFT

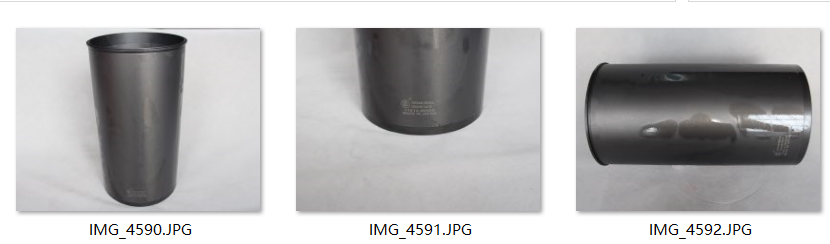

Nissan UD NPR TP Diesel Engine Cylinder Liner Sleeve Photos:

NISSAN LINER.jpg


FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

       Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with              Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
