C9.3 336E Engine Parts Piston 357-0447 3570447 437-7099 4377099 557-5686 5575686

Caterpillar C9.3 336E Diesel Engine Spare Parts Piston Kit Set

Essential details

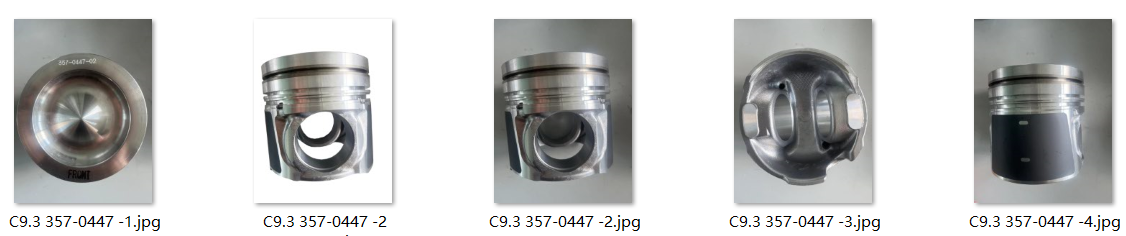

More Photos Of C9.3 336E Piston

C9.3 336E Engine Piston More Numbers:

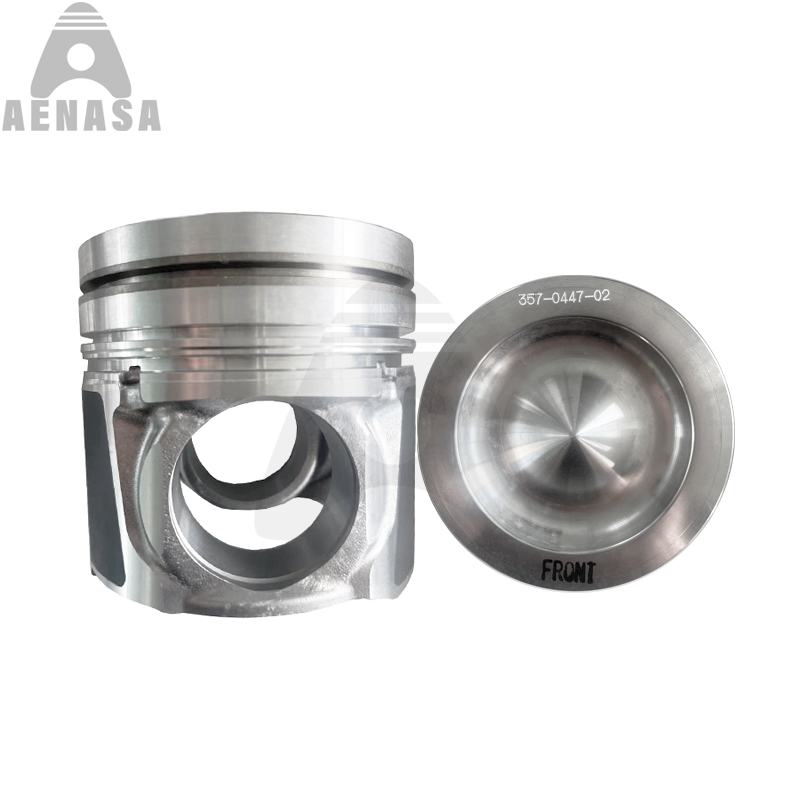

C9.3 PISTON 357-0447

PIN 524-5566

CON ROD: 256-9658

ROD BOLT: 160-8197

2ND RING: 471-0275

OIL RING: 262-2891

TOP RING: 300-1319

MAIN BEARING STD:151-2939

MAIN BEARING 0.25 282-1771

MAIN BEARING 0.50 282-1772

THRUST WASHER: 246-3150

ROD BEARING STD 269-7290

ROD BEARING 0.25 282-2478

ROD BEARING 0.50 282-2479

CRANKSHAFT: 282-7958

CRANKSHAFT GEAR: 282-7955 40T

CAMSHAFT: 347-7109

CAMSHAFT GEAR: 347-0425 80T

CAMSHAFT BUSHING: 216-5586 1PCS;203-5805 2 PCS; 203-6090 1 PCS

CYLINDER BLOCK: 524-2485

CYLINDER LINER: 469-5313

LINER O-RING: 167-0024

VALVE SEAT INLET: 255-8666

VALVE SEAT EXHAUST: 262-2959

VALVE GUIDE: 255-8665

VALVE EX: 490-1728

VALVE IN: 490-1729

VALVE SPRING INNER: 349-5303

VALVE SPRING OUTER: 349-5307

VALVE SEAL: 312-8619

VALVE REGAINER: 241-8384

VALVE SPRING SEAT: 255-8679

VALVE LOCK:1W-2715

INJECTOR SLEEVE: 325-6575

HEAD GASKET 262-1940

CYLINDER HEAD: 346-6388

FLYWHEEL ASSY: 236-2569

FLYWHEELGEAR: 256-9651 113T

PUSH RODl 261-0205

VALVE LIFTER: 453-5998

AENASA PISTON STRUCTURE:

------------------------------------------------------------------------

We also can provide the other engine repair overhaul  parts for C9.3 Diesel Engine:

The following popular Caterpillar  engine replacement parts also can be provided too.

D-Series:               D330  D333 D342 D343 D353

30-Series:              3013C  3014 3024 3024C 3044C 3044T 3046 3054 3054B 3054C 3054E 3056 3056B 3056E 3064 3066

31/32/33-Series:   3114 3116 3126 3176 3196  3204 3208 3304-DI 3304-PC 3306-DI 3306-PC

34/35-Series:        3406-O 3406E  3408 3408E  3412 3412E 3508 3512 3516

C-Series:               C1.1 C1.5  C2.2 C3.3 C3.4 C3.4B C4.2 C4.4-EI C4.4-DI C6.4 C6.6-EI C6.6-DI C7.1-DI C7.1-EI C7.2 C9.3 C9.3B

C-Series:               C7 C9 C-9 C10 C11 C12 C13 C15 C16  C18 C27 C32

Packaging & Shipping

FAQ

Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

       Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.

Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.

Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with              Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...

Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian

Parts We Can Supply:
