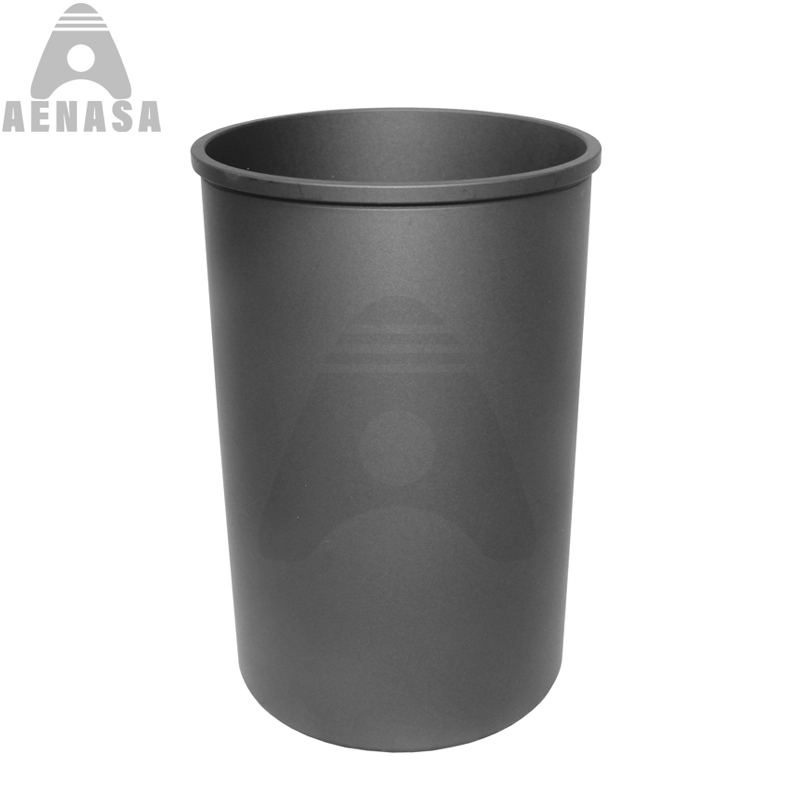

4M51 6M51 LINER Cylinder Liner Sleeve

Basic Information
Model:4M51 6M51
Diameter118.0 mm
Brand:AENASA
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:8-11 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Mitsubishi 4M51 6M51  Engine Parts Cylinder Liner Sleeve O-Ring


Inside Bore:118.0 mm
Bottom Outside:122.0 mm
Total Length:190.0 mm
Top Outside:127.0 mm
Flange Depth:5.0+0.0 mm
Surface Treatment:Phoshpated
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:
Oem No.


Mitsubishi 4M51 6M51 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:4M51 6M51
Bore Diamter:118.0 mm
Oem Part Number:
Unit Weight(kg): 0.9 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing

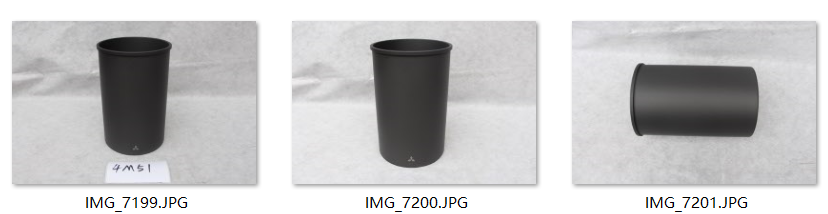

More Photos Of 4M51 6M51 Cylinder Liner Sleeve Kit


We also can provide the other engine repair overhaul  parts for 4M51 6M51 Diesel Engine:

4M51     Cylinder Block

4M51     Cylinder Head

4M51     Cylinder Liner

4M51     Crankshaft  &  Gear

4M51     Camshaft & Gear

4M51     Connecting Rod

4M51     Connecting Rod Bushing

4M51     Crankshaft Metal /Main Bearing

4M51     Con Rod Metal/ Con Rod Bearing

4M51     Piston & Pin & Lock Ring

4M51     Piston Ring Set

4M51     Overhaul Full Complete Gasket Kit Set

4M51     Head / Upper Gasket Kit

4M51     Block / Lower / Bottom Gasket kit

4M51     Cylinder Head gasket

4M51     Rod / Pin Bushing

4M51     Camshaft Bushing / Bearing

4M51     Thrust Wahser / Bearing

4M51     Water Pump

4M51     Oil Pump

4M51     Valve inlet / exhaust

4M51     Valve Seat in / ex

4M51     Valve Guide

4M51     Valve Tapped , Push Rod, Valve Lock

4M51     Valve Spring,  Seat

4M51     Alternator

4M51     Stater

4M51     Turbocharger

4M51     Oil Cooler Core, Cover

4M51     Injector Sleeve

4M51     Piston Cooling Nollze

4M51     Rocker Arm

4M51     Manifold In & Ex

4M51     Flywheel

4M51     Con rod Bolt. Head Bolt


6M51     Cylinder Block

6M51     Cylinder Head

6M51     Cylinder Liner

6M51     Crankshaft  &  Gear

6M51     Camshaft & Gear

6M51     Connecting Rod

6M51     Connecting Rod Bushing

6M51     Crankshaft Metal /Main Bearing

6M51     Con Rod Metal/ Con Rod Bearing

6M51     Piston & Pin & Lock Ring

6M51     Piston Ring Set

6M51     Overhaul Full Complete Gasket Kit Set

6M51     Head / Upper Gasket Kit

6M51     Block / Lower / Bottom Gasket kit

6M51     Cylinder Head gasket

6M51     Rod / Pin Bushing

6M51     Camshaft Bushing / Bearing

6M51     Thrust Wahser / Bearing

6M51     Water Pump

6M51     Oil Pump

6M51     Valve inlet / exhaust

6M51     Valve Seat in / ex

6M51     Valve Guide

6M51     Valve Tapped , Push Rod, Valve Lock

6M51     Valve Spring,  Seat

6M51     Alternator

6M51     Stater

6M51     Turbocharger

6M51     Oil Cooler Core, Cover

6M51     Injector Sleeve

6M51     Piston Cooling Nollze

6M51     Rocker Arm

6M51     Manifold In & Ex

6M51     Flywheel

6M51     Con rod Bolt. Head Bolt

The following popular Mitsubishi engine replacement parts also can be provided too.


1: L2E L3A L3C L3E K3D K4D K3E K4E K3F K4F K3M K4M K4N  K4Q

2: S2E S3E S4E S4E1 S4E2 S6E S6E2 S3F S4F S4K-O S4K-N S6K S6KT D04FR D06FR

3: S3L S3L2 S4L S3Q2 S4Q S4Q2 S4S-O S4S-N S6S S6S-D

4: 4DQ5 4DQ7 4D55 4D56T 4D56U-16V 4D65 4D68 4DR5 4DR51 6DR5 6DR51 4DR7

5: 6DS1 6DS3  6DS5 6DS7-1 6DS7  6DB

6: 4M40 4M40T 4M41 4M41T 4M42 4M50T 4M51 4M51T 6M60T 6M61 8M20 8M21 8M22

7: 4D30 4D31 4D31T 4D32 4D33 4D34 4D34T 4D35 4D35T 4D36 4D37

8: 6D31 6D31T 6D34 6D34T 6D10 6D11 6D14 6D14T 6D14-2AT/3AT 6D15 6D15T 6D15-3AT 6D16 6D16T 6D16-2AT 6D16-3AT          6D17-12V 6D17T-24V

9: 6D20 6D22 6D22T 6D24 6D24T 6D24T-3V 6D40 6D40T

10: 8DC2 8DC4 8DC6 8DC8 8DC81 8DC82 8DC9 8DC9T 8DC91 8DC91T 8DC10 8DC11

11: S6A S8A S12A S6A2 S6A3 S12A2 S12A3 S6B S6B2 S6B3 S6N S6R S12R S16R S6R2 S6R2F

12: NM75 NM90 4N13 4HK 4N14 4P10


Mitsubishi NPR TP Diesel Engine Cylinder Liner Sleeve Photos:



FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

       Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with              Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
