Model: | F20CE |
Diameter | 146.0 mm |
Brand: | AENASA |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 15-20 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |

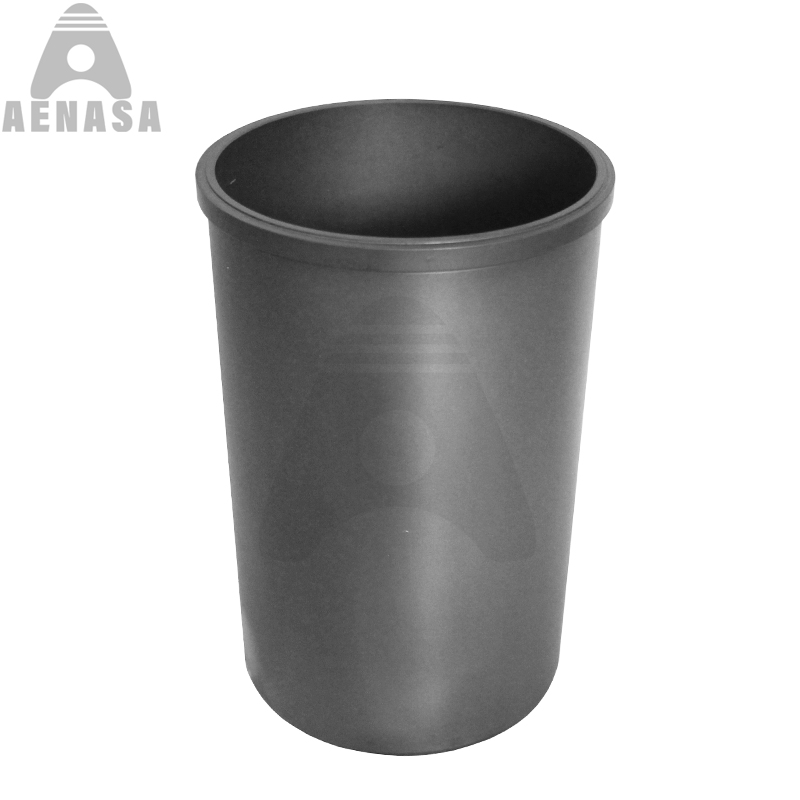

Hino F20CE Engine Parts Cylinder Liner Sleeve O-Ring
Inside Bore: | 146.0 mm |
Bottom Outside: | 154.0 mm |
Total Length: | 244.6 mm |
Top Outside: | 159.0 mm |
Flange Depth: | 8.0 +1.0 mm |
Surface Treatment: | Shinny/Chrome |
FF/SF: | FF |
Material: | Boron alloyed cast iron |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 11467-2680A |
Oem No. | 11467-2690A |
Hino F20CE Diesel Engine Spare Parts Cylinder Liner Sleeve
Engine Model: | F20CE |
Bore Diamter: | 146.0 mm |
Oem Part Number: | 11467-2700A |
Unit Weight(kg): | 1.4 Kg |
Engine Type: | Diesel Engine |
Liner Type | Wet / Dry / Steel / Cast Iron |
Material: | Boron alloyed cast iron / Steel |
Finished: | F/F; S/F |
Surface Treatment: | Chrome/Phosphated/Nitrided/Induction Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma BSI composite CVD /thermal spraying |
Anilox Technology: | With platform honing anilox, (spiral) sliding honing anilox, laser honing anilox, brush honing, honing |

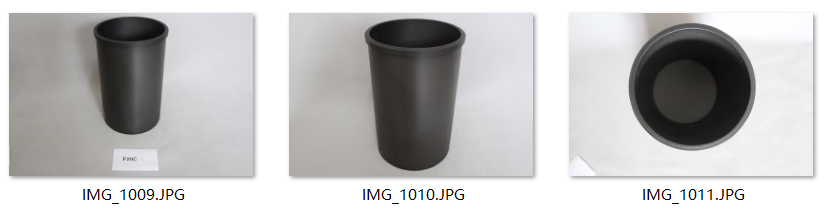

More Photos Of F20CE Cylinder Liner Sleeve Kit
We also can provide the other engine repair overhaul parts for F20CE Diesel Engine:
F20CE Cylinder Block
F20CE Cylinder Head
F20CE Cylinder Liner
F20CE Crankshaft & Gear
F20CE Camshaft & Gear
F20CE Connecting Rod
F20CE Connecting Rod Bushing
F20CE Crankshaft Metal /Main Bearing
F20CE Con Rod Metal/ Con Rod Bearing
F20CE Piston & Pin & Lock Ring
F20CE Piston Ring Set
F20CE Overhaul Full Complete Gasket Kit Set
F20CE Head / Upper Gasket Kit
F20CE Block / Lower / Bottom Gasket kit
F20CE Cylinder Head gasket
F20CE Rod / Pin Bushing
F20CE Camshaft Bushing / Bearing
F20CE Thrust Wahser / Bearing
F20CE Water Pump
F20CE Oil Pump
F20CE Valve inlet / exhaust
F20CE Valve Seat in / ex
F20CE Valve Guide
F20CE Valve Tapped , Push Rod, Valve Lock
F20CE Valve Spring, Seat
F20CE Alternator
F20CE Stater
F20CE Turbocharger
F20CE Oil Cooler Core, Cover
F20CE Injector Sleeve
F20CE Piston Cooling Nollze
F20CE Rocker Arm
F20CE Manifold In & Ex
F20CE Flywheel
F20CE Con rod Bolt. Head Bolt
The following popular Hino engine replacement parts also can be provided too.
1: W04CT W04D W04DT W06D W06DT W06E
2: DM100 EC100 EH100 EH300 EH500 EH700 EB100 ED100 EM100 EL100 EP100 EB100 EB300 EB400 EK100 EK200 EK130 ER200
3: N04CT S05CB J05C J05CT J07C J08C J08CT J05E J07E J08E A09C
4: H06BT H06C H06CT H07C H07CT H07D DS50 DS60 DS70 DS80
5: P09C P11C E13C M10C M10U K13C-12V K13C-24V OLD K13C-24V NEW K13D
6: EF500 L/R EF550 L/R EF750 L/R F17D L/R F17E L/R F17C L/R F20C L/R OLD F20C L/R NEW F21C L/R V22C V25C V26C
FAQ
Q1: Who are we?
A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,
Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3. What can you buy from us?
A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.
Q4. Why should you buy from us not from other suppliers?
A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture
We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...
Q5. What services can we provide?
A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,CNY;RUBLES
Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
