S6D170 Cylinder Liner Sleeve 6162-25-2210 6162-23-2210

Basic Information
Model:S6D170
Diameter170.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:50 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided

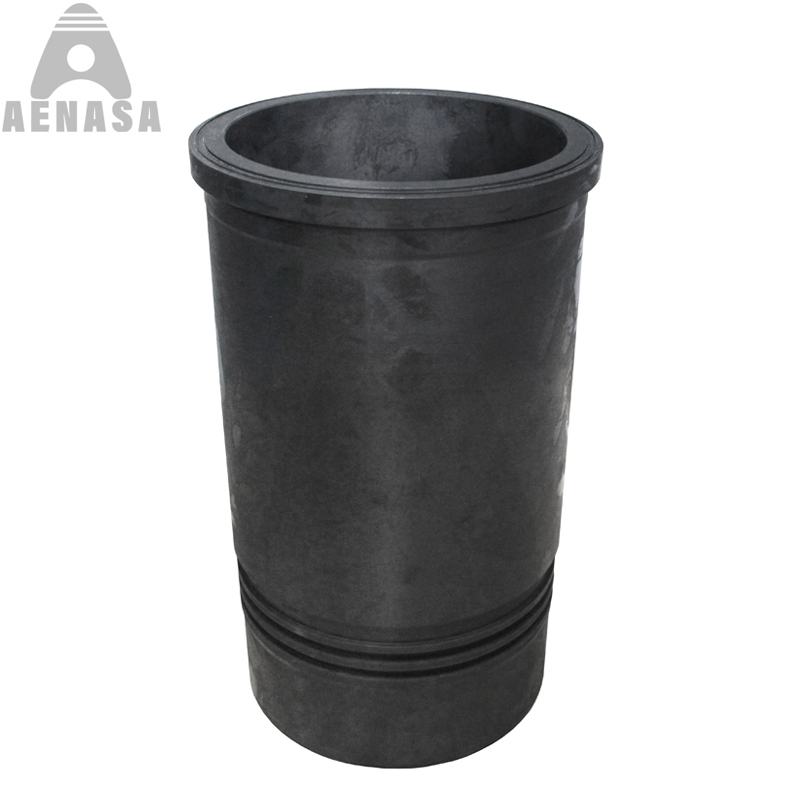

Komatsu S6D170 Engine Parts Cylinder Liner Sleeve O-Ring


Inside   Bore:170 mm
Bottom   Outside:190.3 mm
Total Length:342.0 mm
Top Outside:206.0 mm
Flange Depth:14.2+1.3 mm
Surface Treatment:Nitrided
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:6162-25-2210
Oem No.6162-23-2210


Komatsu S6D170 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:S6D170
Bore Diamter:170.0 mm
Oem Part Number: 6162-25-2210 6162-23-2210
Unit Weight(kg): 11.6 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing

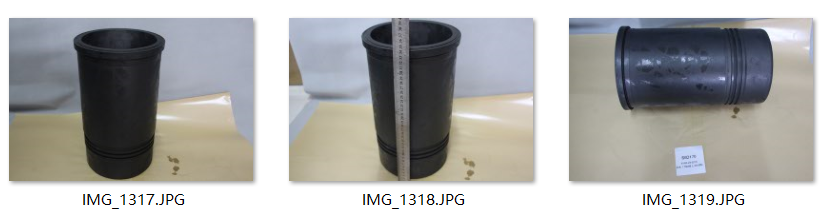

More Photos Of S6D170 Cylinder Liner Sleeve Kit



We also can provide the other engine repair overhaul  parts for S6D170 Diesel Engine:


S6D170    Cylinder Block

S6D170    Cylinder Head

S6D170    Cylinder Liner

S6D170    Crankshaft  &  Gear

S6D170    Camshaft & Gear

S6D170    Connecting Rod

S6D170    Connecting Rod Bushing

S6D170    Crankshaft Metal /Main Bearing

S6D170    Con Rod Metal/ Con Rod Bearing

S6D170    Piston & Pin & Lock Ring

S6D170    Piston Ring Set

S6D170    Overhaul Full Complete Gasket Kit Set

S6D170    Head / Upper Gasket Kit

S6D170    Block / Lower / Bottom Gasket kit

S6D170    Cylinder Head gasket

S6D170    Rod / Pin Bushing

S6D170    Camshaft Bushing / Bearing

S6D170    Thrust Wahser / Bearing

S6D170    Water Pump

S6D170    Oil Pump

S6D170    Valve inlet / exhaust

S6D170    Valve Seat in / ex

S6D170    Valve Guide

S6D170    Valve Tapped , Push Rod, Valve Lock

S6D170    Valve Spring,  Seat

S6D170    Alternator

S6D170    Stater

S6D170    Turbocharger

S6D170    Oil Cooler Core, Cover

S6D170    Injector Sleeve

S6D170    Piston Cooling Nollze

S6D170    Rocker Arm

S6D170    Manifold In & Ex

S6D170    Flywheel

S6D170    Con rod Bolt. Head Bolt


The following popular Komatsu engine replacement parts also can be provided too.


1: 2D92 4D92 2D94 3D94 4D94

2: 4D94E 4D94LE 4D95 S4D95LE 4D98 S4D102 S6D102 4D105-1 4D105-3 4D105-5  4D120 4D130

4: S6D95-5(PC200-5)  S6D95-6(PC200-6)  S6D105-1 S6D05-5 S6D107 S6D108-5 S6D108-6 S6D110 S6D114-2 PC300-7

    S6D114E-3 PC300-8

5: S6D125 OLD S6D125-1(PC400-5) SA6D125E-2 (PC400-6) SAA6D125E-3 (PC400-7) SAA6D125E-5 (PC400-8)

6: S6D140-1 OLD SA6D140E-2 SA6D140E-3 SAA6D140E-5 SA12V140-1

7: NH220  NT855 NH250 NTA855 S6D155-4  SA6D155-4

8: S6D170-1  S6D170E-2 SA6D170E-3 SAA6D170E-5 SA12V170
