6LT9.3 6L9.3 QSL9.3 ISL9.5 Liner Sleeve 5290937 116.5mm

Basic Information
Model:6LT9.3 6L9.3 QSL9.3 ISL9.5
Diameter116.5 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:15 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided

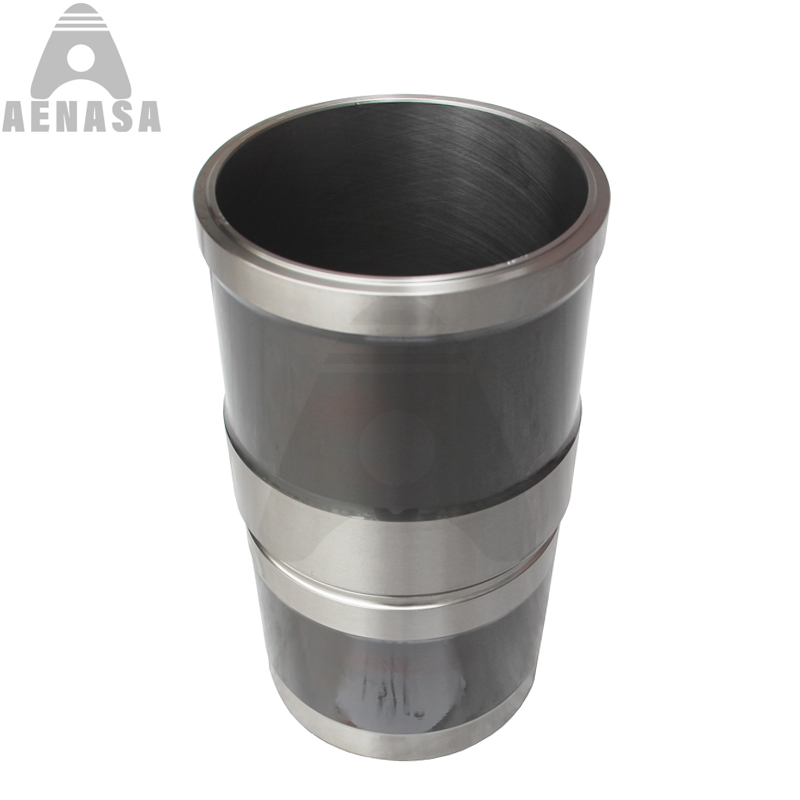

Cummins 6LT9.3 6L9.3 QSL9.3 ISL9.5  Engine Parts Cylinder Liner Sleeve O-Ring


Inside   Bore:116.5 mm
Bottom   Outside:123.5 mm
Total Length:237.0 mm
Top Outside:131.0 mm
Flange Depth:12.3+1.08 mm
Surface Treatment:Phosphated
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:5290937
Oem No.5290937


Cummins 6LT9.3 6L9.3 QSL9.3 ISL9.5 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:6LT9.3 6L9.3 QSL9.3 ISL9.5
Bore Diamter:116.5 mm
Oem Part Number:

5290937

Unit Weight(kg): 4.5 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing

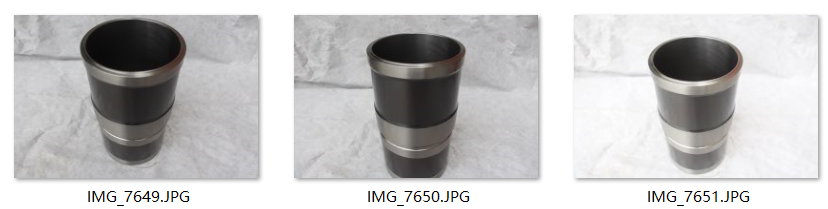

More Photos Of 6LT9.3 6L9.3 QSL9.3 ISL9.5 Cylinder Liner Sleeve Kit




We also can provide the other engine repair overhaul  parts for 6LT9.3 6L9.3 QSL9.3 ISL9.5  Diesel Engine:

6L9.3    Cylinder Block

6L9.3    Cylinder Head

6L9.3    Cylinder Liner

6L9.3    Crankshaft  &  Gear

6L9.3    Camshaft & Gear

6L9.3    Connecting Rod

6L9.3    Connecting Rod Bushing

6L9.3    Crankshaft Metal /Main Bearing

6L9.3    Con Rod Metal/ Con Rod Bearing

6L9.3    Piston & Pin & Lock Ring

6L9.3    Piston Ring Set

6L9.3    Overhaul Full Complete Gasket Kit Set

6L9.3    Head / Upper Gasket Kit

6L9.3    Block / Lower / Bottom Gasket kit

6L9.3    Cylinder Head gasket

6L9.3    Rod / Pin Bushing

6L9.3    Camshaft Bushing / Bearing

6L9.3    Thrust Wahser / Bearing

6L9.3    Water Pump

6L9.3    Oil Pump

6L9.3    Valve inlet / exhaust

6L9.3    Valve Seat in / ex

6L9.3    Valve Guide

6L9.3    Valve Tapped , Push Rod, Valve Lock

6L9.3    Valve Spring,  Seat

6L9.3    Alternator

6L9.3    Stater

6L9.3    Turbocharger

6L9.3    Oil Cooler Core, Cover

6L9.3    Injector Sleeve

6L9.3    Piston Cooling Nollze

6L9.3    Rocker Arm

6L9.3    Manifold In & Ex

6L9.3    Flywheel

6L9.3    Con rod Bolt. Head Bolt


QSL9.5    Cylinder Block

QSL9.5    Cylinder Head

QSL9.5    Cylinder Liner

QSL9.5    Crankshaft  &  Gear

QSL9.5    Camshaft & Gear

QSL9.5    Connecting Rod

QSL9.5    Connecting Rod Bushing

QSL9.5    Crankshaft Metal /Main Bearing

QSL9.5    Con Rod Metal/ Con Rod Bearing

QSL9.5    Piston & Pin & Lock Ring

QSL9.5    Piston Ring Set

QSL9.5    Overhaul Full Complete Gasket Kit Set

QSL9.5    Head / Upper Gasket Kit

QSL9.5    Block / Lower / Bottom Gasket kit

QSL9.5    Cylinder Head gasket

QSL9.5    Rod / Pin Bushing

QSL9.5    Camshaft Bushing / Bearing

QSL9.5    Thrust Wahser / Bearing

QSL9.5    Water Pump

QSL9.5    Oil Pump

QSL9.5    Valve inlet / exhaust

QSL9.5    Valve Seat in / ex

QSL9.5    Valve Guide

QSL9.5    Valve Tapped , Push Rod, Valve Lock

QSL9.5    Valve Spring,  Seat

QSL9.5    Alternator

QSL9.5    Stater

QSL9.5    Turbocharger

QSL9.5    Oil Cooler Core, Cover

QSL9.5    Injector Sleeve

QSL9.5    Piston Cooling Nollze

QSL9.5    Rocker Arm

QSL9.5    Manifold In & Ex

QSL9.5    Flywheel

QSL9.5    Con rod Bolt. Head Bolt

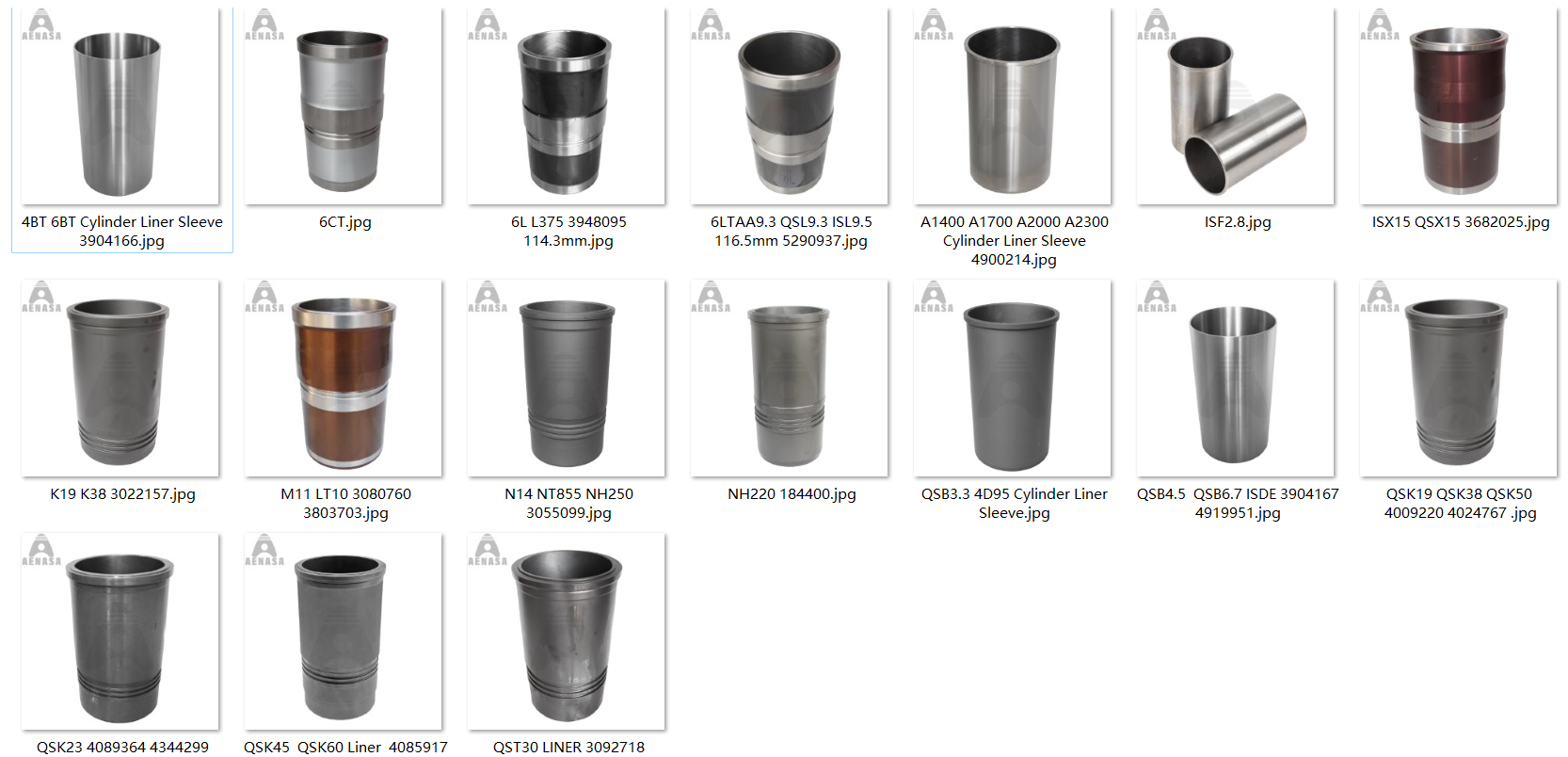

The following popular Cummins engine replacement parts also can be provided too.


1:   A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:   B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:   4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:   ISBE 4ISBe 6ISBe QSC ISC8.3

5:   L375 T375 L375 ISL QSL ISLe 6LTAA9.3 QSL9.3 ISL9.5

6:   L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14 QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QSK95 QST30
