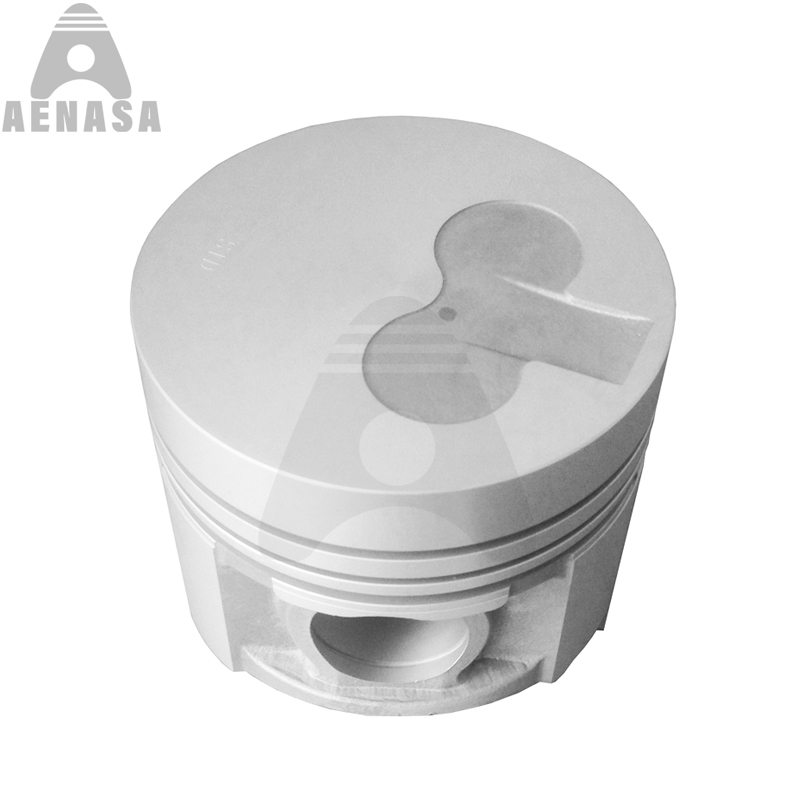

TD27 Engine Parts Piston 12010-6T005

Basic Information
Model: TD27
Diameter:96.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:10-12 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:96.0 mm
No. of   Cyl: L4
Total Length:86.0 mm
Comp Height:50.2 mm
Chamber Dia:Flower
Ring Groove:2.5+2+3 mm
Pin Size:30*74 mm


Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:12010-6T005
Oem No.12010-6T005


Nissan TD27 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:TD27
Engine Type:Diesel Engine
Bore Diamter:96.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

12010-6T005

Unit Weight(kg): 0.70 kg

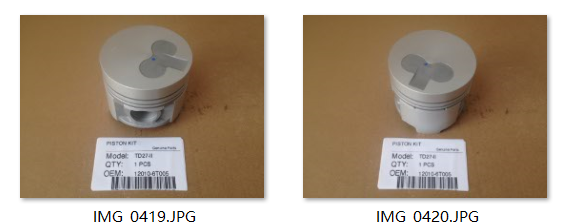

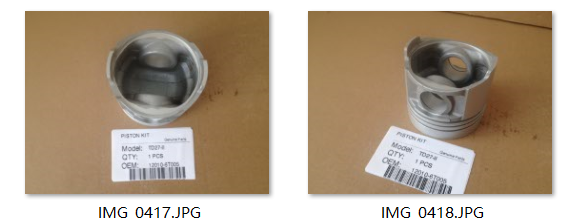

TD27 DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS





TD27 LINER KIT :


CYLINDER LINER:  11012-2S040 11012-2S000 11012-43G00 11012-43G10 (SF) 11012-2S000 FF

PISTON KIT: 12010-6T005

PISTON RING SET:  12033-6T010 12033-6T011

Rod Bushing:  12030-31N00 12030-G2400

Liner O-RING:


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

TD27 DIESEL ENGINE SPARE PARTS LIST


TD27   Cylinder Block

TD27   Cylinder Head

TD27   Cylinder Liner

TD27   Crankshaft  &  Gear

TD27   Camshaft & Gear

TD27   Connecting Rod

TD27   Connecting Rod Bushing

TD27   Crankshaft Metal /Main Bearing

TD27   Con Rod Metal/ Con Rod Bearing

TD27   Piston & Pin & Lock Ring

TD27   Piston Ring Set

TD27   Overhaul Full Complete Gasket Kit Set

TD27   Head / Upper Gasket Kit

TD27   Block / Lower / Bottom Gasket kit

TD27   Cylinder Head gasket

TD27   Rod / Pin Bushing

TD27   Camshaft Bushing / Bearing

TD27   Thrust Wahser / Bearing

TD27   Water Pump

TD27   Oil Pump

TD27   Valve inlet / exhaust

TD27   Valve Seat in / ex

TD27   Valve Guide

TD27   Valve Tapped , Push Rod, Valve Lock

TD27   Valve Spring,  Seat

TD27   Alternator

TD27   Stater

TD27   Turbocharger

TD27   Oil Cooler Core, Cover

TD27   Injector Sleeve

TD27   Piston Cooling Nollze

TD27   Rocker Arm

TD27   Manifold In & Ex

TD27   Flywheel

TD27   Con rod Bolt. Head Bolt



Nissan UD Diesel Engine Piston Kit





The following popular Nissan UD engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7:  RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
