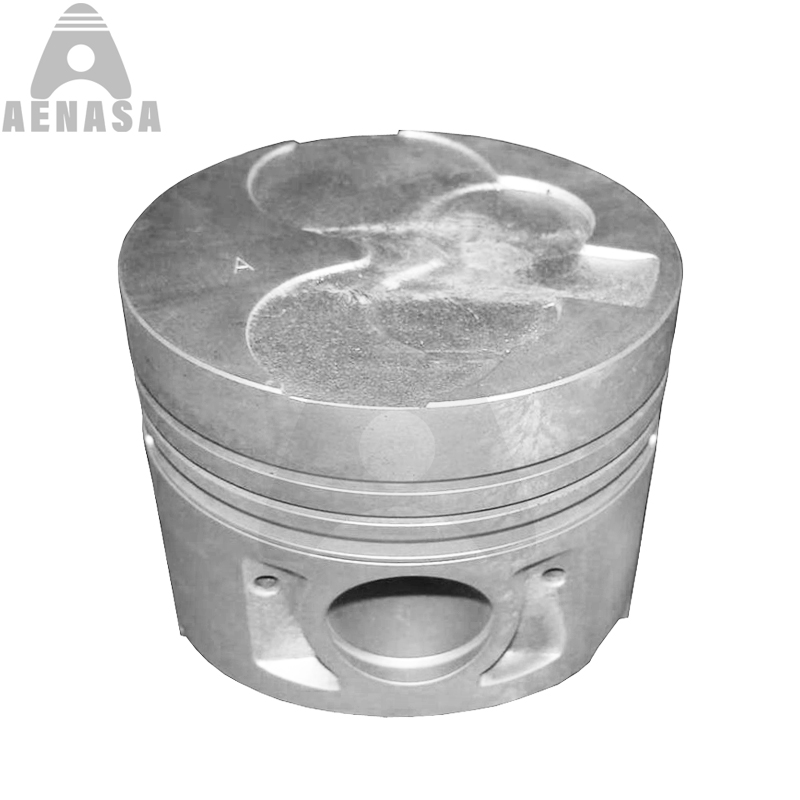

TD25 Engine Parts Piston 12010-44G02

Basic Information
Model: TD25
Diameter:92.9 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:10-12 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:92.9 mm
No. of   Cyl: L4
Total Length:87.1 mm
Comp Height:50.3 mm
Chamber Dia:Flower
Ring Groove:2.5+2+4 mm
Pin Size:28*80 mm

Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:12010-44G01
Oem No.12010-44G02


Nissan TD25 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:TD25
Engine Type:Diesel Engine
Bore Diamter:92.9 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

12010-44G11 12010-44G12

Unit Weight(kg): 0.70 kg


TD25 DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS


TD25 LINER KIT :


CYLINDER LINER: 11012-44G05 11012-44G10 11012-87G00

PISTON KIT:  12010-44G01 12010-44G02 12010-44G11 12010-44G12

PISTON RING SET: 12033-44G10 A2033-44G00

Rod Bushing: 12030-43G00

Liner O-RING:


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

TD25 DIESEL ENGINE SPARE PARTS LIST


TD25  Cylinder Block

TD25  Cylinder Head

TD25  Cylinder Liner

TD25  Crankshaft  &  Gear

TD25  Camshaft & Gear

TD25  Connecting Rod

TD25  Connecting Rod Bushing

TD25  Crankshaft Metal /Main Bearing

TD25  Con Rod Metal/ Con Rod Bearing

TD25  Piston & Pin & Lock Ring

TD25  Piston Ring Set

TD25  Overhaul Full Complete Gasket Kit Set

TD25  Head / Upper Gasket Kit

TD25  Block / Lower / Bottom Gasket kit

TD25  Cylinder Head gasket

TD25  Rod / Pin Bushing

TD25  Camshaft Bushing / Bearing

TD25  Thrust Wahser / Bearing

TD25  Water Pump

TD25  Oil Pump

TD25  Valve inlet / exhaust

TD25  Valve Seat in / ex

TD25  Valve Guide

TD25  Valve Tapped , Push Rod, Valve Lock

TD25  Valve Spring,  Seat

TD25  Alternator

TD25  Stater

TD25  Turbocharger

TD25  Oil Cooler Core, Cover

TD25  Injector Sleeve

TD25  Piston Cooling Nollze

TD25  Rocker Arm

TD25  Manifold In & Ex

TD25  Flywheel

TD25  Con rod Bolt. Head Bolt

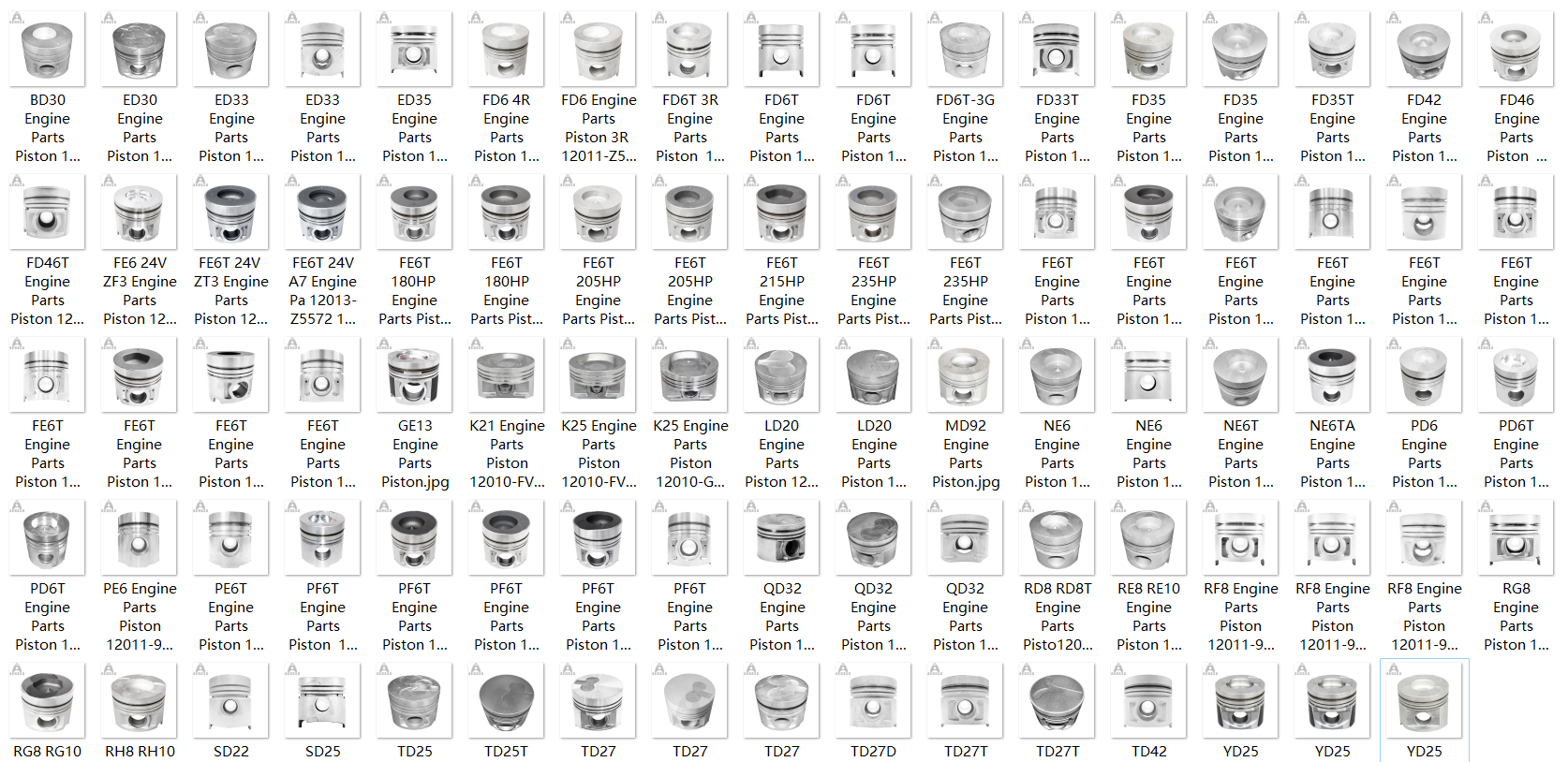

Nissan UD Diesel Engine Piston Kit





The following popular Nissan UD engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7:  RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
