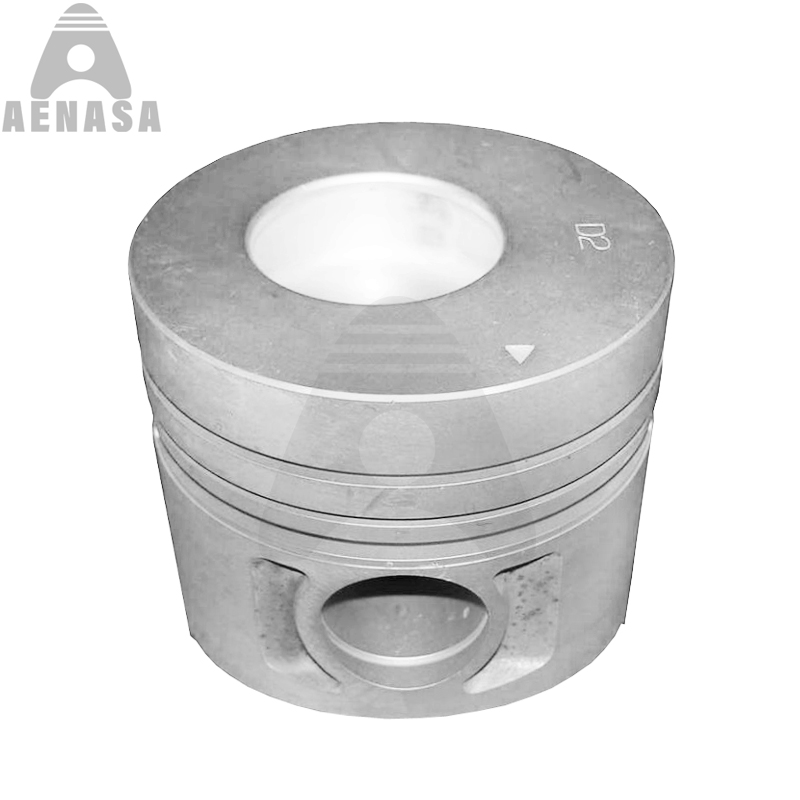

BD30 Engine Parts Piston 12010-54T00

Basic Information
Model: BD30
Diameter:96.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:11-13 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:96.0 mm
No. of   Cyl: L4
Total Length:89.6 mm
Comp Height:53.1 mm
Chamber Dia:44.0 mm
Ring Groove:2.5+2+4.0 mm
Pin Size:30*80 mm


Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:12010-54T10
Oem No.12010-54T00


Nissan BD30 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:BD30
Engine Type:Diesel Engine
Bore Diamter:96.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

12010-54T11 12010-54T60

Unit Weight(kg): 1.30 kg


BD30 DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS


BD30 LINER KIT :


CYLINDER LINER: 11012-54T00 (FF)  11012-54T40 (SF)

PISTON KIT:  12010-54T00 12010-54T01 12010-54T10 12010-54T11 12010-54T60 12010-54T61

PISTON RING SET: 12033-43G10 12033-43G11

Rod Bushing:  12030-31N00 12030-G2400

Liner O-RING:


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

BD30 DIESEL ENGINE SPARE PARTS LIST


BD30 Cylinder Block

BD30 Cylinder Head

BD30 Cylinder Liner

BD30 Crankshaft  &  Gear

BD30 Camshaft & Gear

BD30 Connecting Rod

BD30 Connecting Rod Bushing

BD30 Crankshaft Metal /Main Bearing

BD30 Con Rod Metal/ Con Rod Bearing

BD30 Piston & Pin & Lock Ring

BD30 Piston Ring Set

BD30 Overhaul Full Complete Gasket Kit Set

BD30 Head / Upper Gasket Kit

BD30 Block / Lower / Bottom Gasket kit

BD30 Cylinder Head gasket

BD30 Rod / Pin Bushing

BD30 Camshaft Bushing / Bearing

BD30 Thrust Wahser / Bearing

BD30 Water Pump

BD30 Oil Pump

BD30 Valve inlet / exhaust

BD30 Valve Seat in / ex

BD30 Valve Guide

BD30 Valve Tapped , Push Rod, Valve Lock

BD30 Valve Spring,  Seat

BD30 Alternator

BD30 Stater

BD30 Turbocharger

BD30 Oil Cooler Core, Cover

BD30 Injector Sleeve

BD30 Piston Cooling Nollze

BD30 Rocker Arm

BD30 Manifold In & Ex

BD30 Flywheel

BD30 Con rod Bolt. Head Bolt



Nissan UD Diesel Engine Piston Kit





The following popular Nissan UD engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7:  RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
