Model: | FD46 |
Diameter: | 108.0 mm |
Brand | AEENGINEPARTS |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 13-15 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |
Bore Diameter: | 108.0 mm |
No. of Cyl: | L4 |
Total Length: | 87.1 mm |
Comp Height: | 59.2 mm |
Chamber Dia: | 53.0 mm |
Ring Groove: | 3.0+2+4.0 mm |
Pin Size: | 36*93 mm |
Material: | AL108/AL109 |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 12010-0T312 |
Oem No. | 12010-0T016 |

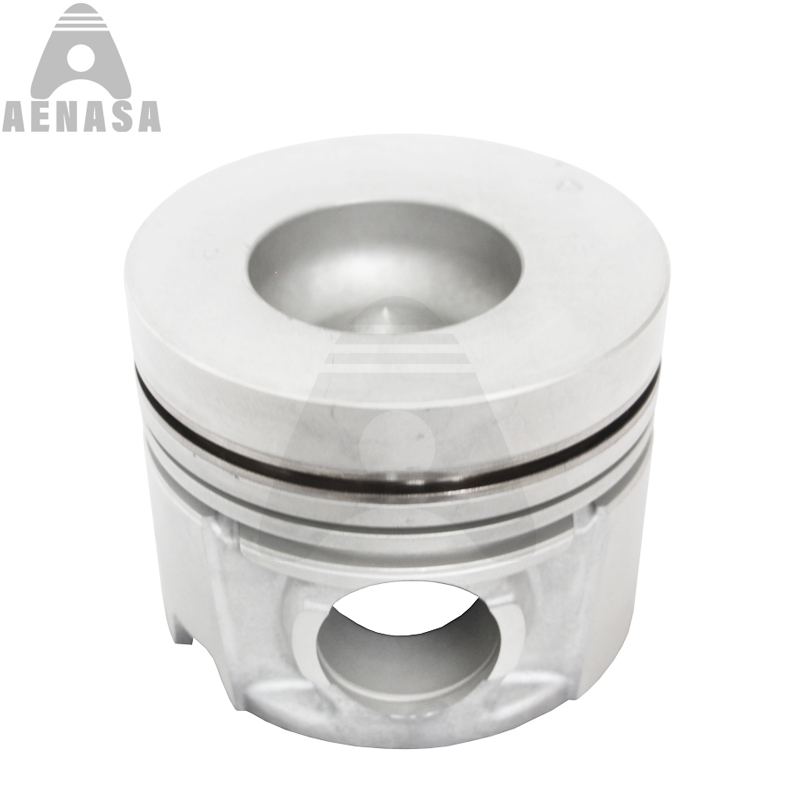

Nissan FD46 Diesel Engine Spare Parts Piston Kit Set
Engine Model: | FD46 |
Engine Type: | Diesel Engine |
Bore Diamter: | 108.0 mm |
Material: | AL108/109 |
Surface Treatment: | Sn |
Alfin: | Yes |
Oil Gallery: | Yes/No |
Steel Pieces: | Yes |
Oem Part Number: | 12010-0T312 12010-0T016 |
Unit Weight(kg): | 1.30 kg |

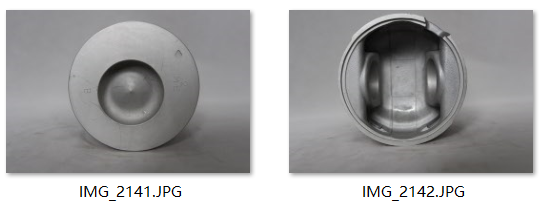

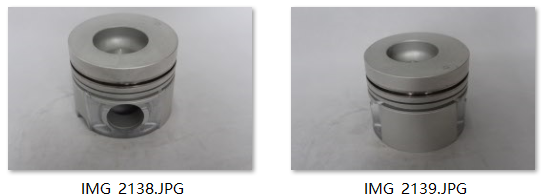

FD46 DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS
FD46 LINER KIT :
CYLINDER LINER: 11012-03T01 11012-0T300
PISTON KIT: 12010-0T312 12010-0T016
PISTON RING SET: 12033-0T010 12033-0T000
Rod Bushing: 12030-0T000 12030-0T001
Liner O-RING:
AE PISTON STRUCTURES:
FD46 DIESEL ENGINE SPARE PARTS LIST
FD46 Cylinder Block
FD46 Cylinder Head
FD46 Cylinder Liner
FD46 Crankshaft & Gear
FD46 Camshaft & Gear
FD46 Connecting Rod
FD46 Connecting Rod Bushing
FD46 Crankshaft Metal /Main Bearing
FD46 Con Rod Metal/ Con Rod Bearing
FD46 Piston & Pin & Lock Ring
FD46 Piston Ring Set
FD46 Overhaul Full Complete Gasket Kit Set
FD46 Head / Upper Gasket Kit
FD46 Block / Lower / Bottom Gasket kit
FD46 Cylinder Head gasket
FD46 Rod / Pin Bushing
FD46 Camshaft Bushing / Bearing
FD46 Thrust Wahser / Bearing
FD46 Water Pump
FD46 Oil Pump
FD46 Valve inlet / exhaust
FD46 Valve Seat in / ex
FD46 Valve Guide
FD46 Valve Tapped , Push Rod, Valve Lock
FD46 Valve Spring, Seat
FD46 Alternator
FD46 Stater
FD46 Turbocharger
FD46 Oil Cooler Core, Cover
FD46 Injector Sleeve
FD46 Piston Cooling Nollze
FD46 Rocker Arm
FD46 Manifold In & Ex
FD46 Flywheel
FD46 Con rod Bolt. Head Bolt
Nissan UD Diesel Engine Piston Kit
The following popular Nissan UD engine replacement parts also can be provided too.
1: K9K G9U M9R M9T G9T TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X
2: LD28 RD28 RD28T M1D CD20 CD20T LD20 LD20T YD22 LD23
3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25
4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32
5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R
6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T PE6 PE6T PF6T
7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
FAQ
Q1: Who are we?
A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,
,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3. What can you buy from us?
A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.
Q4. Why should you buy from us not from other suppliers?
A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture
We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...
Q5. What services can we provide?
A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,CNY;RUBLES
Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
