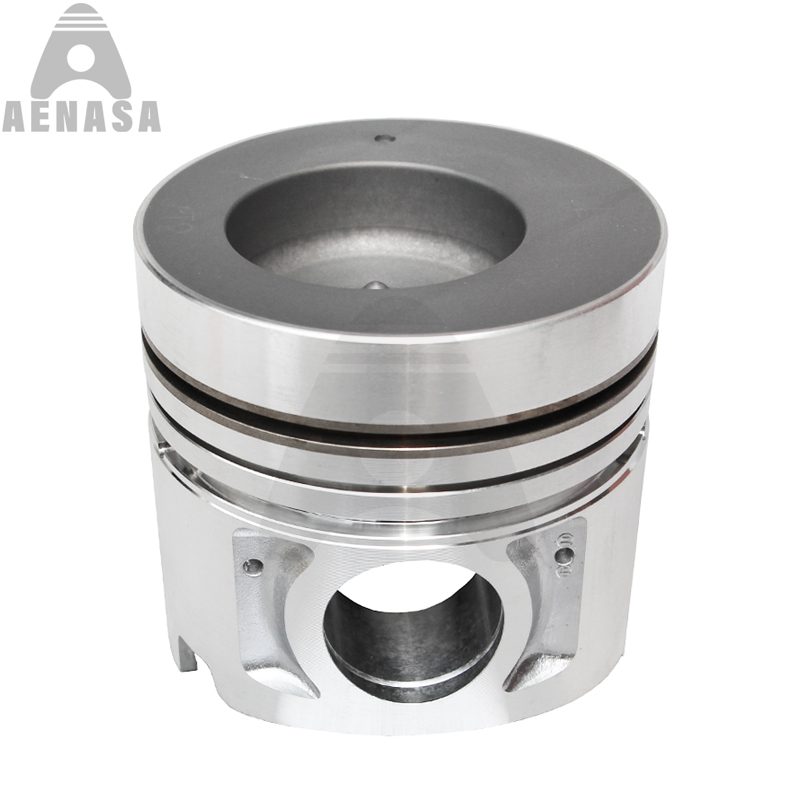

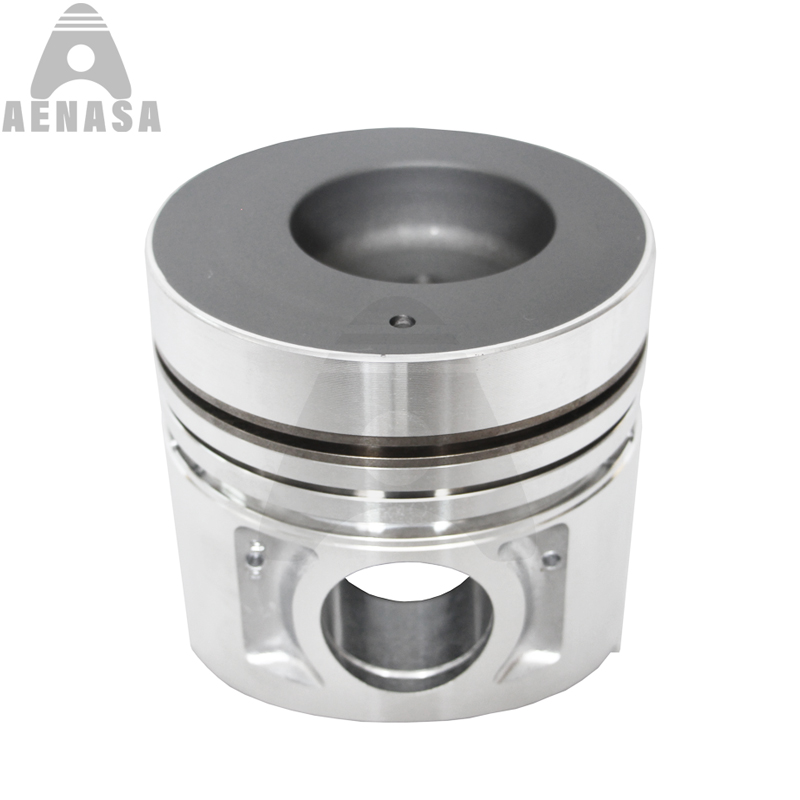

FE6T 180HP Engine Parts Piston 12010-Z5507

Basic Information
Model: FE6 12V 180HP
Diameter:108.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:13-15 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:108.0 mm
No. of   Cyl: L6
Total Length:103.4 mm
Comp Height:65.4 mm
Chamber Dia:56.5 mm
Ring Groove:2.5K+2+4 mm
Pin Size:36*93 mm

Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:12010-Z5507
Oem No.12010-Z5507


Nissan FE6  Diesel Engine Spare Parts Piston Kit Set


Engine   Model:FE6 12V
Engine Type:Diesel Engine
Bore Diamter:108.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

12010-Z5507

Unit Weight(kg): 1.30 kg

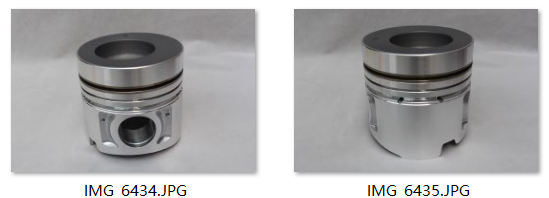

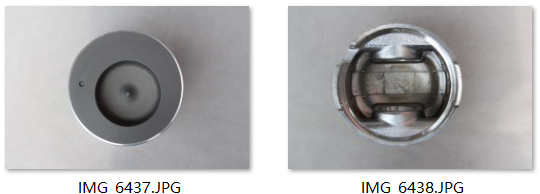

FE6 12V DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS




FE6 12V LINER KIT :


CYLINDER LINER: 11012-Z5518 11012-Z5519(220mm)  11012-Z5604 11012-Z5605(217mm) 11012-Z5616 11012-Z5617 (212 mm)

PISTON KIT:  12010-Z5507

PISTON RING SET:  12040-Z5519 12040-Z5560  12040-Z5561 12040-Z5603

Rod Bushing:  12030-95000

Liner O-RING:


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

FE6 12V DIESEL ENGINE SPARE PARTS LIST


FE6 180HP Cylinder Block

FE6 180HP Cylinder Head

FE6 180HP Cylinder Liner

FE6 180HP Crankshaft  &  Gear

FE6 180HP Camshaft & Gear

FE6 180HP Connecting Rod

FE6 180HP Connecting Rod Bushing

FE6 180HP Crankshaft Metal /Main Bearing

FE6 180HP Con Rod Metal/ Con Rod Bearing

FE6 180HP Piston & Pin & Lock Ring

FE6 180HP Piston Ring Set

FE6 180HP Overhaul Full Complete Gasket Kit Set

FE6 180HP Head / Upper Gasket Kit

FE6 180HP Block / Lower / Bottom Gasket kit

FE6 180HP Cylinder Head gasket

FE6 180HP Rod / Pin Bushing

FE6 180HP Camshaft Bushing / Bearing

FE6 180HP Thrust Wahser / Bearing

FE6 180HP Water Pump

FE6 180HP Oil Pump

FE6 180HP Valve inlet / exhaust

FE6 180HP Valve Seat in / ex

FE6 180HP Valve Guide

FE6 180HP Valve Tapped , Push Rod, Valve Lock

FE6 180HP Valve Spring,  Seat

FE6 180HP Alternator

FE6 180HP Stater

FE6 180HP Turbocharger

FE6 180HP Oil Cooler Core, Cover

FE6 180HP Injector Sleeve

FE6 180HP Piston Cooling Nollze

FE6 180HP Rocker Arm

FE6 180HP Manifold In & Ex

FE6 180HP Flywheel

FE6 180HP Con rod Bolt. Head Bolt


Nissan UD Diesel Engine Piston Kit





The following popular Nissan UD engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7:  RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T


FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
