FE6 24V A7 Engine Parts Piston 12013- Z5572 12011-Z5780 12040-Z5505

Basic Information
Model: FE6 24V
Diameter:108.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:13-15 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:108.0 mm
No. of   Cyl: L6
Total Length:103.5 mm
Comp Height:65.5 mm
Chamber Dia:56.4 mm
Ring Groove:2.5K+2.0+4.0 mm
Pin Size:36*93 mm



Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:12013- Z5572
Oem No.12040-Z5505

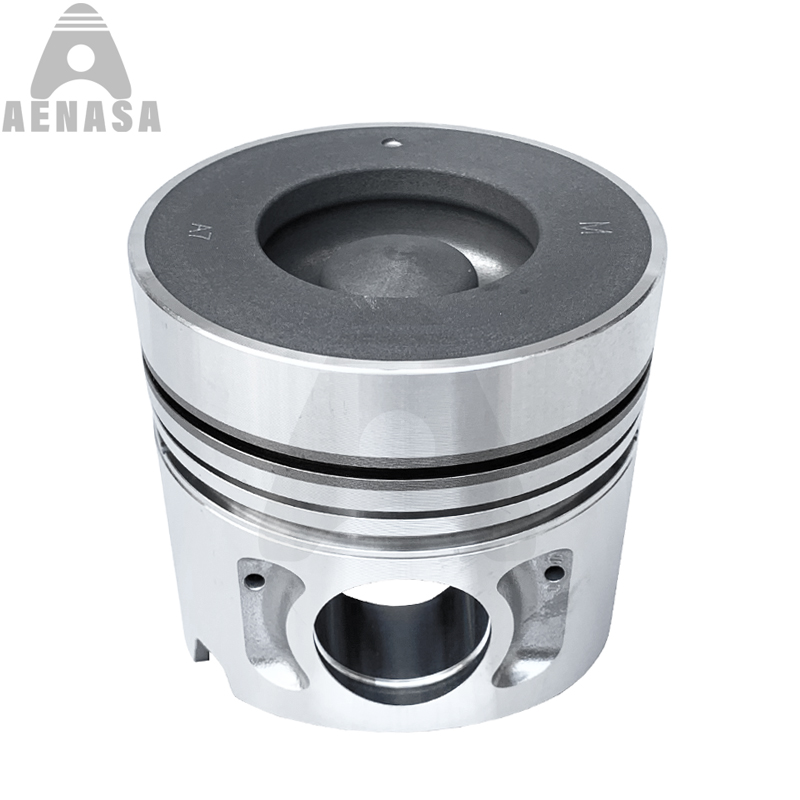

Nissan FE6 24V Diesel Engine Spare Parts Piston Kit Set


Engine   Model:FE6 24V
Engine Type:Diesel Engine
Bore Diamter:108.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes/No
Steel Pieces:Yes
Oem Part Number:

12013- Z5572 12011-Z5780 12040-Z5505

Unit Weight(kg): 1.30 kg

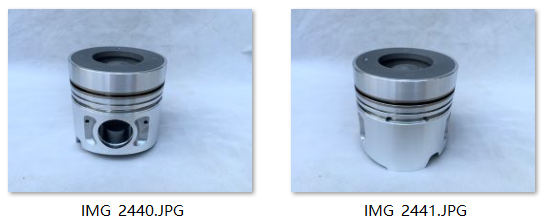

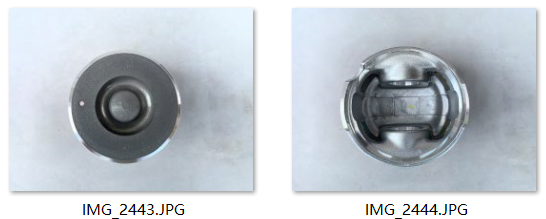

FE6 24V DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS





FE6 24V LINER KIT :


CYLINDER LINER: 11012-Z5518 11012-Z5519(220mm)  11012-Z5604 11012-Z5605(217mm) 11012-Z5616 11012-Z5617 (212 mm)

PISTON KIT:  12013- Z5572 12011-Z5780 12040-Z5505

PISTON RING SET:  12040-Z5519 12040-Z5560  12040-Z5561 12040-Z5603

Rod Bushing:  12030-95000

Liner O-RING:


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

FE6 24V DIESEL ENGINE SPARE PARTS LIST


FE6  24V Cylinder Block

FE6  24V Cylinder Head

FE6  24V Cylinder Liner

FE6  24V Crankshaft  &  Gear

FE6  24V Camshaft & Gear

FE6  24V Connecting Rod

FE6  24V Connecting Rod Bushing

FE6  24V Crankshaft Metal /Main Bearing

FE6  24V Con Rod Metal/ Con Rod Bearing

FE6  24V Piston & Pin & Lock Ring

FE6  24V Piston Ring Set

FE6  24V Overhaul Full Complete Gasket Kit Set

FE6  24V Head / Upper Gasket Kit

FE6  24V Block / Lower / Bottom Gasket kit

FE6  24V Cylinder Head gasket

FE6  24V Rod / Pin Bushing

FE6  24V Camshaft Bushing / Bearing

FE6  24V Thrust Wahser / Bearing

FE6  24V Water Pump

FE6  24V Oil Pump

FE6  24V Valve inlet / exhaust

FE6  24V Valve Seat in / ex

FE6  24V Valve Guide

FE6  24V Valve Tapped , Push Rod, Valve Lock

FE6  24V Valve Spring,  Seat

FE6  24V Alternator

FE6  24V Stater

FE6  24V Turbocharger

FE6  24V Oil Cooler Core, Cover

FE6  24V Injector Sleeve

FE6  24V Piston Cooling Nollze

FE6  24V Rocker Arm

FE6  24V Manifold In & Ex

FE6  24V Flywheel

FE6  24V Con rod Bolt. Head Bolt


Nissan UD Diesel Engine Piston Kit





The following popular Nissan UD engine replacement parts also can be provided too.


1: K9K G9U M9R M9T G9T  TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X

2: LD28 RD28 RD28T  M1D CD20 CD20T LD20 LD20T  YD22 LD23

3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25

4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32

5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R

6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T  PE6 PE6T PF6T

7:  RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T


FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
