Model: | GE13 GE13T |
Diameter: | 136.0 mm |
Brand: | AEENGINEPARTS |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 45-50 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |
Bore Diameter: | 136.0 mm |
No. of Cyl: | L6 |
Total Length: | 115.0 mm |
Comp Height: | 73.5 mm |
Chamber Dia: | 91.0 MM |
Ring Groove: | 2.5HK*2.0*3.0 mm |
Pin Size: | 58*114 mm |
Material: | AL108/AL109 |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 12013-00Z00 |
Oem No. | 12011-00Z72 |

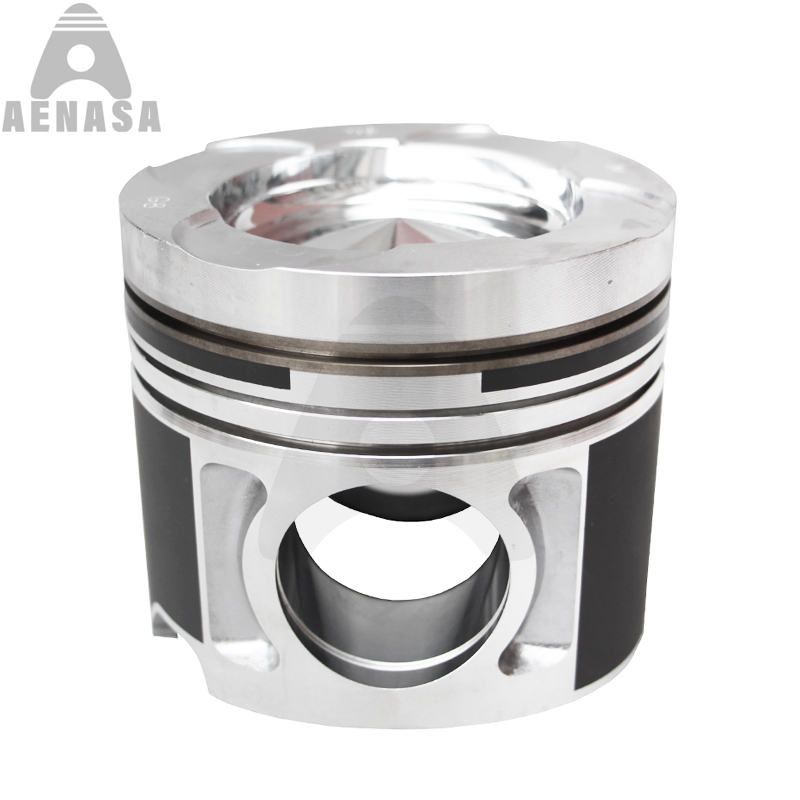

Nissan GE13 GE13T Diesel Engine Spare Parts Piston Kit Set
Engine Model: | GE13 GE13T |
Engine Type: | Diesel Engine |
Bore Diamter: | 136.0 mm |
Material: | AL108/109 |
Surface Treatment: | Sn |
Alfin: | Yes |
Oil Gallery: | Yes/No |
Steel Pieces: | Yes |
Oem Part Number: | 12013-00Z00 12011-00Z72 |
Unit Weight(kg): | 2.10 kg |

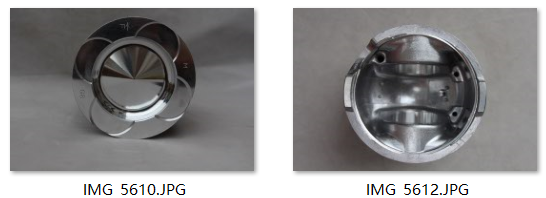

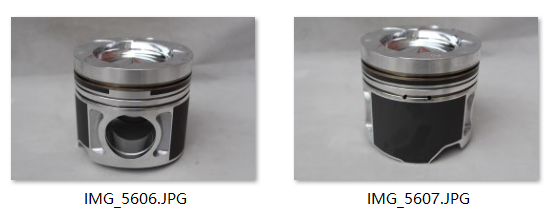

GE13 GE13T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS
GE13 GE13T LINER KIT :
CYLINDER LINER: 11012-00Z11 11012-00Z12 11012-00Z13
PISTON KIT: 12013-00Z00 12011-00Z72
PISTON RING SET: 12040-00Z07
Rod Bushing:
Liner O-RING:
AE PISTON STRUCTURES:
GE13 GE13T DIESEL ENGINE SPARE PARTS LIST
GE13 Cylinder Block
GE13 Cylinder Head
GE13 Cylinder Liner
GE13 Crankshaft & Gear
GE13 Camshaft & Gear
GE13 Connecting Rod
GE13 Connecting Rod Bushing
GE13 Crankshaft Metal /Main Bearing
GE13 Con Rod Metal/ Con Rod Bearing
GE13 Piston & Pin & Lock Ring
GE13 Piston Ring Set
GE13 Overhaul Full Complete Gasket Kit Set
GE13 Head / Upper Gasket Kit
GE13 Block / Lower / Bottom Gasket kit
GE13 Cylinder Head gasket
GE13 Rod / Pin Bushing
GE13 Camshaft Bushing / Bearing
GE13 Thrust Wahser / Bearing
GE13 Water Pump
GE13 Oil Pump
GE13 Valve inlet / exhaust
GE13 Valve Seat in / ex
GE13 Valve Guide
GE13 Valve Tapped , Push Rod, Valve Lock
GE13 Valve Spring, Seat
GE13 Alternator
GE13 Stater
GE13 Turbocharger
GE13 Oil Cooler Core, Cover
GE13 Injector Sleeve
GE13 Piston Cooling Nollze
GE13 Rocker Arm
GE13 Manifold In & Ex
GE13 Flywheel
GE13 Con rod Bolt. Head Bolt
Nissan UD Diesel Engine Piston Kit
The following popular Nissan UD engine replacement parts also can be provided too.
1: K9K G9U M9R M9T G9T TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X
2: LD28 RD28 RD28T M1D CD20 CD20T LD20 LD20T YD22 LD23
3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25
4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32
5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R
6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T PE6 PE6T PF6T
7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
