Model: | PD6 |
Diameter | 125.0 mm |
Brand: | AEENGINEPARTS |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 20-25 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |
Bore Diameter: | 125.0 mm |
No. of Cyl: | L6 |
Total Length: | 132.0 mm |
Comp Height: | 82.0 mm |
Chamber Dia: | 69.0 mm |
Ring Groove: | 5.0+3.5+5.0 mm |
Pin Size: | 46*108 mm |
Material: | AL108/AL109 |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 12011-96000 |
Oem No. | 12011-96007 |

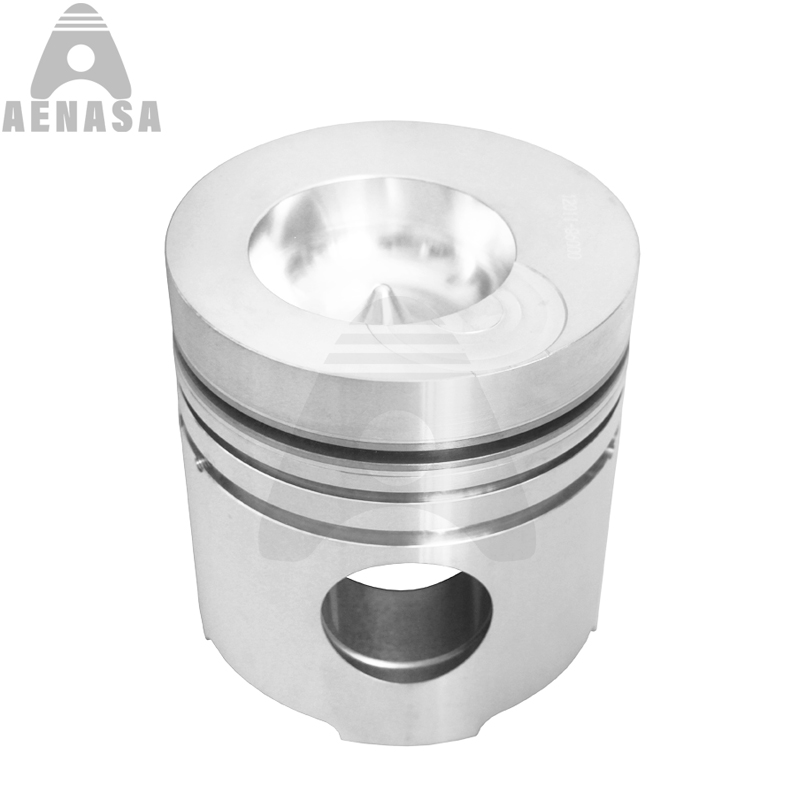

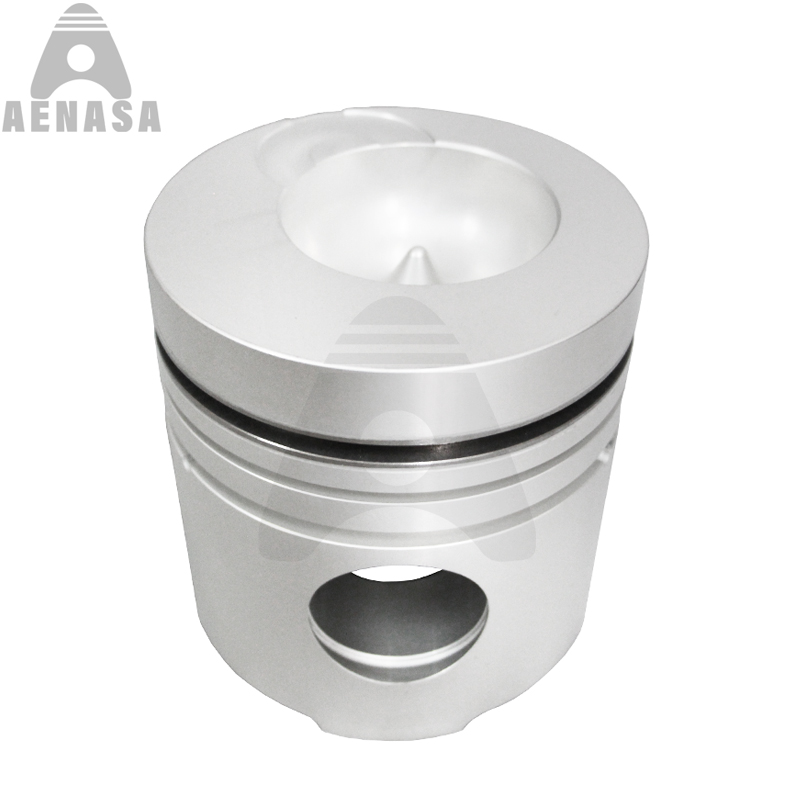

Nissan PD6 PD6T Diesel Engine Spare Parts Piston Kit Set
Engine Model: | PD6 PD6T |
Engine Type: | Diesel Engine |
Bore Diamter: | 125.0 mm |
Material: | AL108/109 |
Surface Treatment: | Sn |
Alfin: | Yes |
Oil Gallery: | Yes/No |
Steel Pieces: | Yes |
Oem Part Number: | 12011-96000 12011-96007 |
Unit Weight(kg): | 2.10 kg |

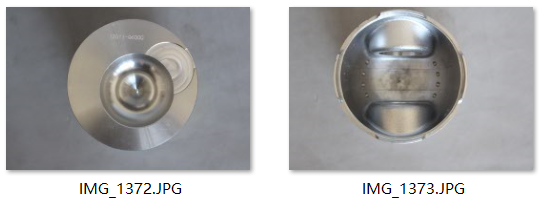

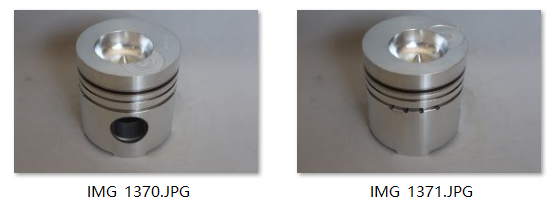

PD6 PD6T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS
PD6 PD6T LINER KIT :
CYLINDER LINER: 11012-96000 11012-96001
PISTON KIT: 12011-96000 12011-96007
PISTON RING SET: 12040-90026 12040-90029 12040-96004 12040-96009 12040-96026 12040-96127 12040-96226
Rod Bushing: 12030-96000 12030-96001
Liner O-RING:
AE PISTON STRUCTURES:
PD6 PD6T DIESEL ENGINE SPARE PARTS LIST
PD6 Cylinder Block
PD6 Cylinder Head
PD6 Cylinder Liner
PD6 Crankshaft & Gear
PD6 Camshaft & Gear
PD6 Connecting Rod
PD6 Connecting Rod Bushing
PD6 Crankshaft Metal /Main Bearing
PD6 Con Rod Metal/ Con Rod Bearing
PD6 Piston & Pin & Lock Ring
PD6 Piston Ring Set
PD6 Overhaul Full Complete Gasket Kit Set
PD6 Head / Upper Gasket Kit
PD6 Block / Lower / Bottom Gasket kit
PD6 Cylinder Head gasket
PD6 Rod / Pin Bushing
PD6 Camshaft Bushing / Bearing
PD6 Thrust Wahser / Bearing
PD6 Water Pump
PD6 Oil Pump
PD6 Valve inlet / exhaust
PD6 Valve Seat in / ex
PD6 Valve Guide
PD6 Valve Tapped , Push Rod, Valve Lock
PD6 Valve Spring, Seat
PD6 Alternator
PD6 Stater
PD6 Turbocharger
PD6 Oil Cooler Core, Cover
PD6 Injector Sleeve
PD6 Piston Cooling Nollze
PD6 Rocker Arm
PD6 Manifold In & Ex
PD6 Flywheel
PD6 Con rod Bolt. Head Bolt
Nissan UD Diesel Engine Piston Kit
The following popular Nissan UD engine replacement parts also can be provided too.
1: K9K G9U M9R M9T G9T TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X
2: LD28 RD28 RD28T M1D CD20 CD20T LD20 LD20T YD22 LD23
3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25
4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32
5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R
6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T PE6 PE6T PF6T
7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
FAQ
Q1: Who are we?
A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,
,Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3. What can you buy from us?
A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.
Q4. Why should you buy from us not from other suppliers?
A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with Chinese OE manufacture
We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...
Q5. What services can we provide?
A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,CNY;RUBLES
Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
