Model: | PE6 PE6T |
Diameter | 133.0 mm |
Brand: | AEENGINEPARTS |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 25-30 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |
Bore Diameter: | 133.0 mm |
No. of Cyl: | L6 |
Total Length: | 132.0 mm |
Comp Height: | 82.0 mm |
Chamber Dia: | 67.0 mm |
Ring Groove: | 4.0K+3.5+6 mm |
Pin Size: | 46*116 mm |
Material: | AL108/AL109 |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | 12011-96509 |
Oem No. | 12011-96776 |

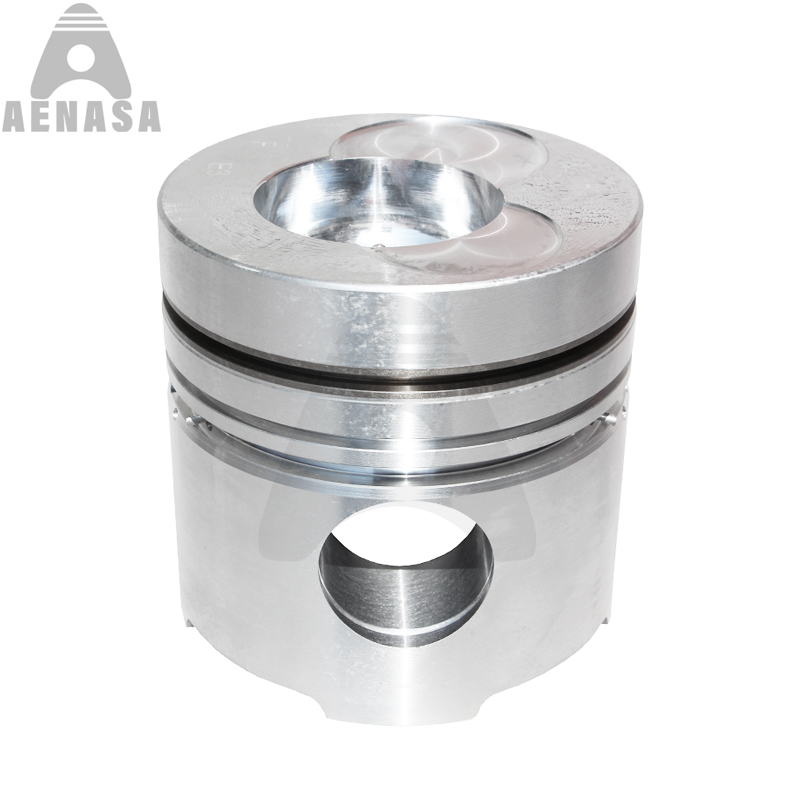

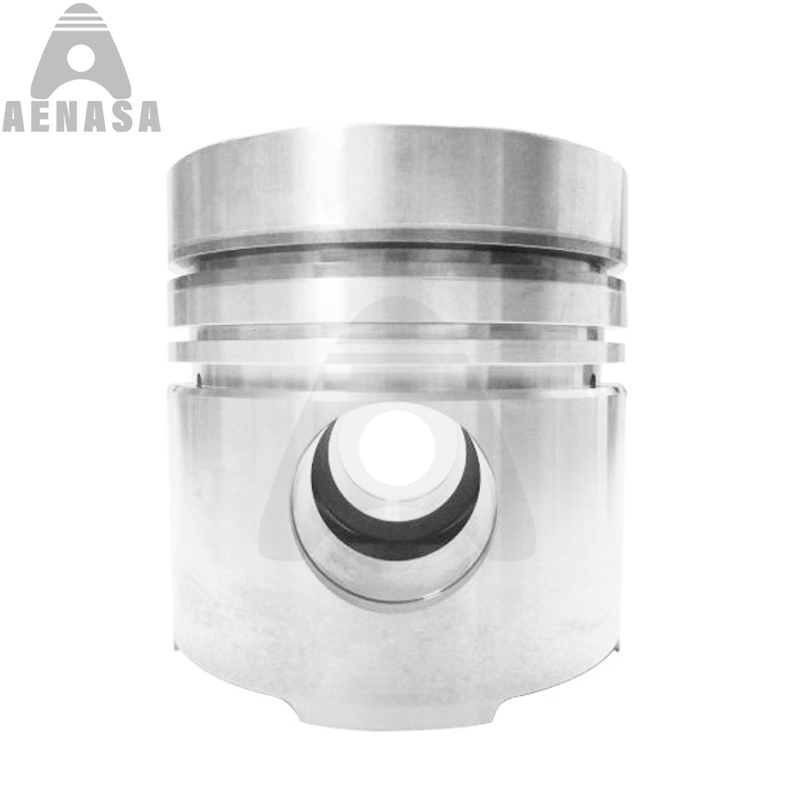

Nissan PE6 PE6T Diesel Engine Spare Parts Piston Kit Set
Engine Model: | PE6 PE6T |
Engine Type: | Diesel Engine |
Bore Diamter: | 133.0 mm |
Material: | AL108/109 |
Surface Treatment: | Sn |
Alfin: | Yes |
Oil Gallery: | Yes/No |
Steel Pieces: | Yes |
Oem Part Number: | 12011-96509 12011-96564 12011-96776 |
Unit Weight(kg): | 2.50 kg |

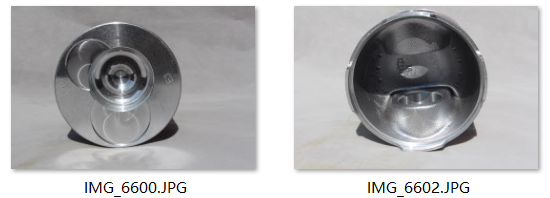

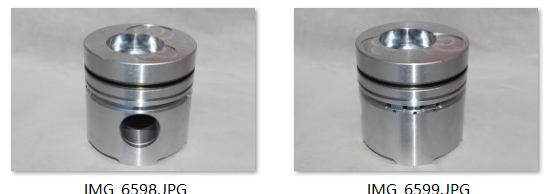

PE6 PE6T DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS
PE6 PE6T LINER KIT :
CYLINDER LINER: 11012-96500 11012-96501 11012-96566
PISTON KIT: 12011-96509 12011-96564 12011-96776
PISTON KIT: 12011-96508 12011-96516
PISTON KIT: 12010-Z5516
PISTON RING SET: 12040-96504 12040-96509 12040-96513 12040-96518
Rod Bushing: 12030-96000 12030-96001
Liner O-RING:
AE PISTON STRUCTURES:
PE6 PE6T DIESEL ENGINE SPARE PARTS LIST
PE6T Cylinder Block
PE6T Cylinder Head
PE6T Cylinder Liner
PE6T Crankshaft & Gear
PE6T Camshaft & Gear
PE6T Connecting Rod
PE6T Connecting Rod Bushing
PE6T Crankshaft Metal /Main Bearing
PE6T Con Rod Metal/ Con Rod Bearing
PE6T Piston & Pin & Lock Ring
PE6T Piston Ring Set
PE6T Overhaul Full Complete Gasket Kit Set
PE6T Head / Upper Gasket Kit
PE6T Block / Lower / Bottom Gasket kit
PE6T Cylinder Head gasket
PE6T Rod / Pin Bushing
PE6T Camshaft Bushing / Bearing
PE6T Thrust Wahser / Bearing
PE6T Water Pump
PE6T Oil Pump
PE6T Valve inlet / exhaust
PE6T Valve Seat in / ex
PE6T Valve Guide
PE6T Valve Tapped , Push Rod, Valve Lock
PE6T Valve Spring, Seat
PE6T Alternator
PE6T Stater
PE6T Turbocharger
PE6T Oil Cooler Core, Cover
PE6T Injector Sleeve
PE6T Piston Cooling Nollze
PE6T Rocker Arm
PE6T Manifold In & Ex
PE6T Flywheel
PE6T Con rod Bolt. Head Bolt
PE6 Cylinder Block
PE6 Cylinder Head
PE6 Cylinder Liner
PE6 Crankshaft & Gear
PE6 Camshaft & Gear
PE6 Connecting Rod
PE6 Connecting Rod Bushing
PE6 Crankshaft Metal /Main Bearing
PE6 Con Rod Metal/ Con Rod Bearing
PE6 Piston & Pin & Lock Ring
PE6 Piston Ring Set
PE6 Overhaul Full Complete Gasket Kit Set
PE6 Head / Upper Gasket Kit
PE6 Block / Lower / Bottom Gasket kit
PE6 Cylinder Head gasket
PE6 Rod / Pin Bushing
PE6 Camshaft Bushing / Bearing
PE6 Thrust Wahser / Bearing
PE6 Water Pump
PE6 Oil Pump
PE6 Valve inlet / exhaust
PE6 Valve Seat in / ex
PE6 Valve Guide
PE6 Valve Tapped , Push Rod, Valve Lock
PE6 Valve Spring, Seat
PE6 Alternator
PE6 Stater
PE6 Turbocharger
PE6 Oil Cooler Core, Cover
PE6 Injector Sleeve
PE6 Piston Cooling Nollze
PE6 Rocker Arm
PE6 Manifold In & Ex
PE6 Flywheel
PE6 Con rod Bolt. Head Bolt
Nissan UD Diesel Engine Piston Kit
The following popular Nissan UD engine replacement parts also can be provided too.
1: K9K G9U M9R M9T G9T TD15 CD17 F8Q F9Q R9M SD22-3R SD22-5R SD33T-5R SD33T-3R V9X
2: LD28 RD28 RD28T M1D CD20 CD20T LD20 LD20T YD22 LD23
3: SD23 SD25 TD23 YD25 TD25 BD25 TD27 TD27T TD27-NEW TD42 TD42T K21 K25
4: BD25 BD30 BD30T ZD30 4ZD1 ZD330DDTI ED30-4R ED30-3R QD32
5: ED33 ED33-N FD33 FD33T ED35 FD35 FD35T FD42 FD46 FD46T ED6 FD6T-4R FD6T-3R FD6-4R FD6-3R
6: FE6 FE6T FE6TA FE6T 24V ND6 NE6 NE6T NF6T PD6 PD6T PE6 PE6T PF6T
7: RD8 RD10 RD8T RD10T RE8 RE10 RF8 L/R RF10 /LR RG8 L/R RG10 L/R RH8 L/R RH10 L/R MD92 GE13T
