DA120 DA220 Engine Parts Piston 1-12111-126-0 9-12111-126-0 9-12111-376-0 9-12111-901-0

Basic Information
ModelDA120  DA220
Diameter100.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:11-15 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:100.0 mm
No. of   Cyl: L4 L6
Total Length:125.0 mm
Comp Height:62.0 mm
Chamber Dia:STD mm
Ring Groove:3*2.5+5.0 mm
Pin Size:34*83.5 mm


Package:4/6/8PCS/CTN
Warranty:3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:1-12111-126-0
Oem No.9-12111-376-0

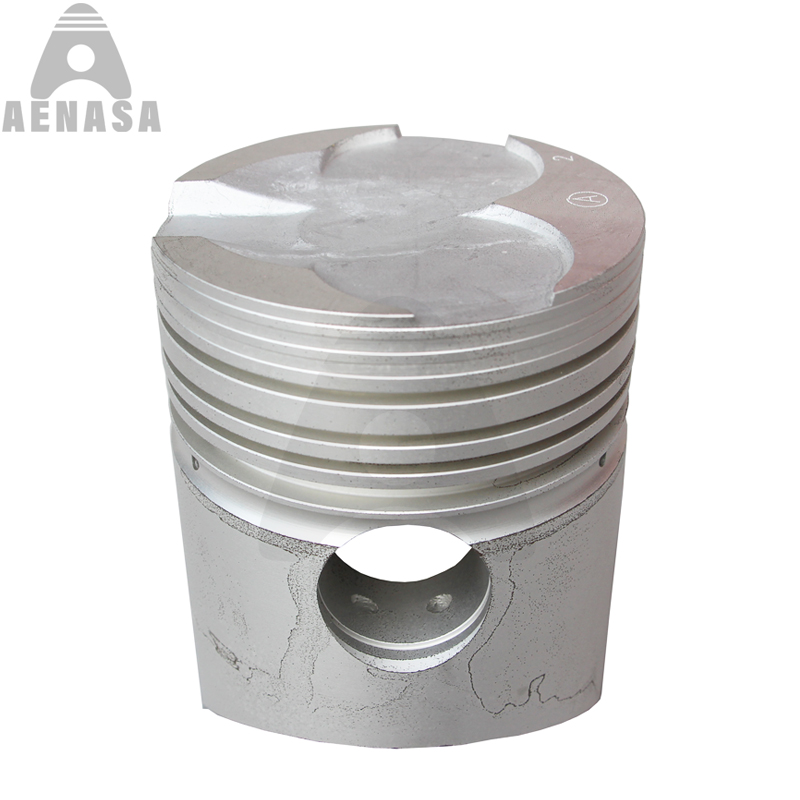

Isuzu DA120  DA220 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:DA120  DA220
Engine Type:Diesel Engine
Bore Diamter:100.0 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number:

9-12111-126-0 9-12111-901-0

Unit Weight(kg): 1.26  kg


DA120  DA220 LINER KITS


Cylinder Liner Sleeve:  9-11261-276-0 9-11261-287-0 9-11261-287-1

Piston Kit:  1-12111-126-0 9-12111-126-0 9-12111-376-0 9-12111-901-0

Piston Ring Set: 81-12121-001-0 1-12181-006-0

Pin Bushing:  9-12251-083-0

O-ring: Non

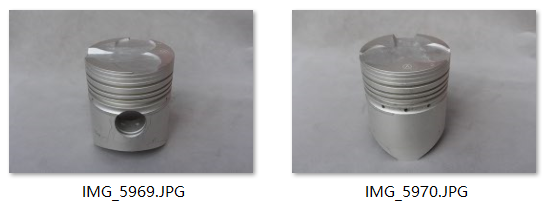

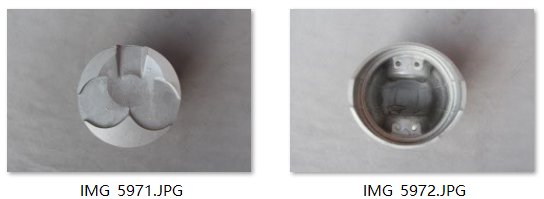

DA120  DA220 PISTON MORE PHOTOS





MORE ISUZU ENGINE PISTON CAN BE PROVIDED:




About the  DA120  DA220 Diesel Engine, the following spare parts also can be provided, if any intersest, please feel free to contact with us.


DA120   Cylinder Block

DA120   Cylinder Head

DA120   Cylinder Liner

DA120   Crankshaft  &  Gear

DA120   Camshaft & Gear

DA120   Connecting Rod

DA120   Connecting Rod Bushing

DA120   Crankshaft Metal /Main Bearing

DA120   Con Rod Metal/ Con Rod Bearing

DA120   Piston & Pin & Lock Ring

DA120   Piston Ring Set

DA120   Overhaul Full Complete Gasket Kit Set

DA120   Head / Upper Gasket Kit

DA120   Block / Lower / Bottom Gasket kit

DA120   Cylinder Head gasket

DA120   Rod / Pin Bushing

DA120   Camshaft Bushing / Bearing

DA120   Thrust Wahser / Bearing

DA120   Water Pump

DA120   Oil Pump

DA120   Valve inlet / exhaust

DA120   Valve Seat in / ex

DA120   Valve Guide

DA120   Valve Tapped , Push Rod, Valve Lock

DA120   Valve Spring,  Seat

DA120   Alternator

DA120   Stater

DA120   Turbocharger

DA120   Oil Cooler Core, Cover

DA120   Injector Sleeve

DA120   Piston Cooling Nollze

DA120   Rocker Arm

DA120   Manifold In & Ex

DA120   Flywheel

DA120   Con rod Bolt. Head Bolt


DA220  Cylinder Block

DA220  Cylinder Head

DA220  Cylinder Liner

DA220  Crankshaft  &  Gear

DA220  Camshaft & Gear

DA220  Connecting Rod

DA220  Connecting Rod Bushing

DA220  Crankshaft Metal /Main Bearing

DA220  Con Rod Metal/ Con Rod Bearing

DA220  Piston & Pin & Lock Ring

DA220  Piston Ring Set

DA220  Overhaul Full Complete Gasket Kit Set

DA220  Head / Upper Gasket Kit

DA220  Block / Lower / Bottom Gasket kit

DA220  Cylinder Head gasket

DA220  Rod / Pin Bushing

DA220  Camshaft Bushing / Bearing

DA220  Thrust Wahser / Bearing

DA220  Water Pump

DA220  Oil Pump

DA220  Valve inlet / exhaust

DA220  Valve Seat in / ex

DA220  Valve Guide

DA220  Valve Tapped , Push Rod, Valve Lock

DA220  Valve Spring,  Seat

DA220  Alternator

DA220  Stater

DA220  Turbocharger

DA220  Oil Cooler Core, Cover

DA220  Injector Sleeve

DA220  Piston Cooling Nollze

DA220  Rocker Arm

DA220  Manifold In & Ex

DA220  Flywheel

DA220  Con rod Bolt. Head Bolt


AE ENGINE PARTS PISTON STRUCTURES


AE PISTON STRUCTURE.jpg

ISUZU ENGINE MODELS:


1: 3KB1 3KC1 3KR1 3KR2 3LB1 3LD1 3LD2 4LB1 4LE1 4LE2-DI 4LE2-EI

2: 4EC1 4EE1 4EE1T 4EE2 4FA1 4FB1 4FC1 4FD1 4FG1

3: C190 C221 C223 C240 C330 DA120 DA220 DA640

4: 4JA1 4JA1T 4JB1 4JB1T 4JC1 4JE1 4JG1 4JG2 4JG2T 4JX1 4JH1-TC 4JJ1-TC 4JK1-TC

5: 4BA1 4BB1 4BC1 4BC2 4BD1 4BD1T 4BD2 4BD2T 4BE1 4BG1 4BG1T

6: 4HE1 4HE1-TC 4HF1 4HG1 4HG1T 4HK1-700P 4HK1-TC 4HJ1 4HL1

7: 6BB1 6BD1 6BD1T 6BG1 6BG1T 6BG1-TC(3R/4R) 6BF1

8: 6HE1 6HE1-TC 6HH1 6HK1T  6HK1-TC 6HL1 6HL1-TC

9: 6SA1 6SA1T 6SD1 6SD1T 6SD1-TC 6UZ1 6QA1

10: 6WA1 6WA1-TC 6WG1 6WG1T-DI 6WG1T-EI 6WF1

11: E120 E120T 6RA1 6RA1T 6RB1 6RB1T

12:  8PA1 10PA1 12PA1 8PB1 10PB1 12PB1 8PC1 8PC1T 10PC1 10PC1T 12PC1 12PC1T 8PD1 10PD1 12PD1 8PE1 10PE1 12PE1
