6D17 Engine Parts Piston ME072576 ME072546

Basic Information
Model:6D17-24V
Diameter118.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:12-15 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:118.0 mm
No. of   Cyl: L6
Total Length:111.1 mm
Comp Height:61.1 mm
Chamber Dia:55.7 / 59.0 mm
Ring Groove:3+2.5+4 mm
Pin Size:38*92.5 mm
Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:ME072546
Oem No.ME072576

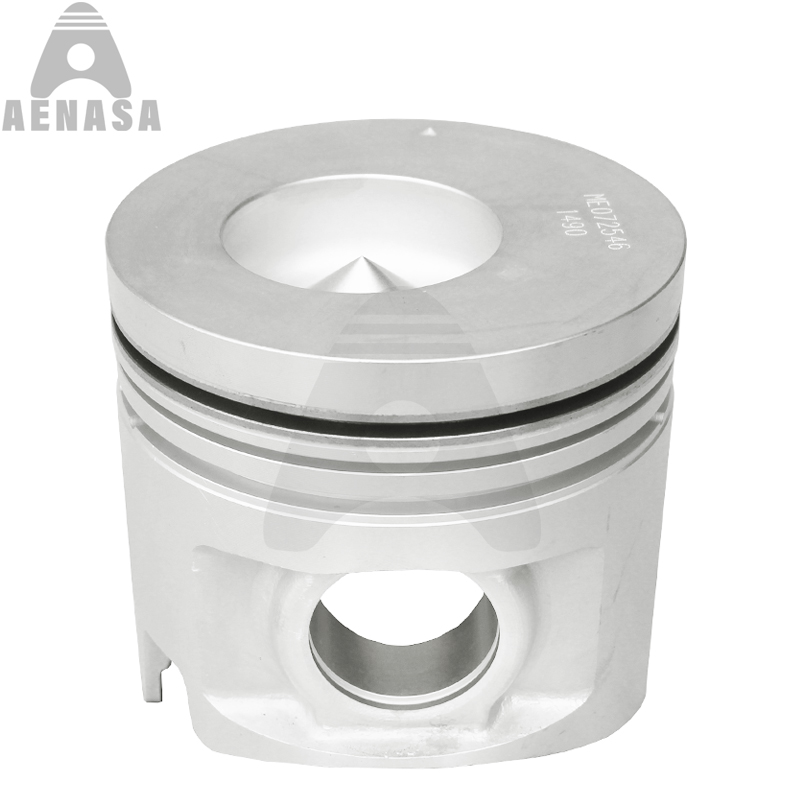

Mitsubishi 6D17 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:6D17-24V
Engine Type:Diesel Engine
Bore Diamter:118.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:Yes
Steel Pieces:Yes
Oem Part Number:

ME072576  ME072546

Unit Weight(kg): 1.46 kg

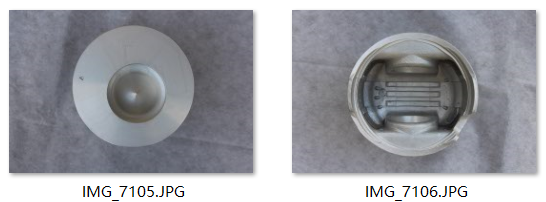

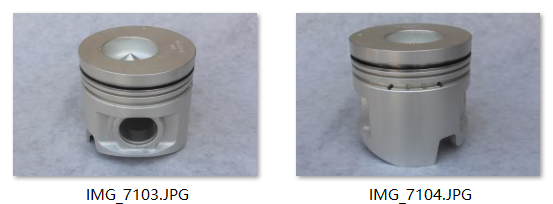

6D17 24V DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS




6D17-24V LINER KIT :


CYLINDER LINER: ME071537 ME071538 ME071539  ME071125 ME071937

PISTON KIT:    ME072576  ME072546

PISTON RING SET: ME999540 ME999955  ME996229 ME996231

Rod Bushing:  ME072128

Liner O-RING: NON


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

6D17-24V DIESEL ENGINE SPARE PARTS LIST


6D17 24V Cylinder Block

6D17 24V Cylinder Head

6D17 24V Cylinder Liner

6D17 24V Crankshaft  &  Gear

6D17 24V Camshaft & Gear

6D17 24V Connecting Rod

6D17 24V Connecting Rod Bushing

6D17 24V Crankshaft Metal /Main Bearing

6D17 24V Con Rod Metal/ Con Rod Bearing

6D17 24V Piston & Pin & Lock Ring

6D17 24V Piston Ring Set

6D17 24V Overhaul Full Complete Gasket Kit Set

6D17 24V Head / Upper Gasket Kit

6D17 24V Block / Lower / Bottom Gasket kit

6D17 24V Cylinder Head gasket

6D17 24V Rod / Pin Bushing

6D17 24V Camshaft Bushing / Bearing

6D17 24V Thrust Wahser / Bearing

6D17 24V Water Pump

6D17 24V Oil Pump

6D17 24V Valve inlet / exhaust

6D17 24V Valve Seat in / ex

6D17 24V Valve Guide

6D17 24V Valve Tapped , Push Rod, Valve Lock

6D17 24V Valve Spring,  Seat

6D17 24V Alternator

6D17 24V Stater

6D17 24V Turbocharger

6D17 24V Oil Cooler Core, Cover

6D17 24V Injector Sleeve

6D17 24V Piston Cooling Nollze

6D17 24V Rocker Arm

6D17 24V Manifold In & Ex

6D17 24V Flywheel

6D17 24V Con rod Bolt. Head Bolt


Mitsubishi Diesel Engine Piston Kit




The following popular Mitsubishi  engine replacement parts also can be provided too.


1:     L2E L3E K3D K4D K3E K4E K3F K4F K3M K4M K4N  K4Q

2:     S2E S3E S4E S4E1 S4E2 S6E S6E2 S3F S4F S4K-O S4K-N S6K S6KT

3:     S3L S3L2 S4L S3Q2 S4Q S4Q2 S4S-O S4S-N S6S S6S-D

4:     4DQ5 4DQ7 4D55 4D56T 4D56U-16V 4D65 4D68 4DR5 4DR51 6DR5 6DR51 4DR7

5:     6DS1 6DS3  6DS5 6DS7-1 6DS7  6DB

6:     4M40 4M40T 4M41 4M41T 4M42 4M50T 4M51 4M51T 6M60T 6M61 8M20 8M21 8M22

7:     4D30 4D31 4D31T 4D32 4D33 4D34 4D34T 4D35 4D35T 4D36 4D37

8:     6D31 6D31T 6D34 6D34T 6D10 6D11 6D14 6D14T 6D14-2AT/3AT 6D15 6D15T 6D15-3AT 6D16 6D16T 6D16-2AT

        6D16-3AT  6D17-12V 6D17T-24V

9:     6D20 6D22 6D22T 6D24 6D24T 6D24T-3V 6D40 6D40T

10:     8DC2 8DC4 8DC6 8DC8 8DC81 8DC82 8DC9 8DC9T 8DC91 8DC91T 8DC10 8DC11

11:     S6A S8A S12A S6A2 S6A3 S12A2 S12A3 S6B S6B2 S6B3 S6N S6R S12R S16R S6R2 S6R2F

12:     NM75 NM90 4N13 4HK 4N14 4P10
