Model: | 4M50 |
Diameter | 114.0 mm |
Brand: | AEENGINEPARTS |
Certification: | ISO9001/TS16949 |
Place of Origin: | GuangDong, China |
MOQ: | 10 Sets |
Price: | 20-25 USD/PCS |
Packaging Details: | Carton/Wooden Box/As Customer Requirements |
Delivery Time: | 3-5 days for stocks, 30-45 days for production |
Payment Terms: | T/T; Western Union, Paypal |
Supply Ability: | 5000PCS/Month |
Warranty: | 10,000 Km for Truck, 1 Year for excavator tractor forklift engine |
Quality Test: | Provided |
Bore Diameter: | 114.0 mm |
No. of Cyl: | L4 |
Total Length: | 99.1 mm |
Comp Height: | 59.1 mm |
Chamber Dia: | 57.9 mm |
Ring Groove: | 3.0DK+2.0+4.0 |
Pin Size: | 42*93 mm |
Material: | AL108/AL109 |
Package: | 6 PCS/CTN |
Warranty: | 1-3 years |
Stock: | Yes |
Shipping | Air/Sea/Land |
Part No: | ME994614 |
Oem No. | 1465M601 |

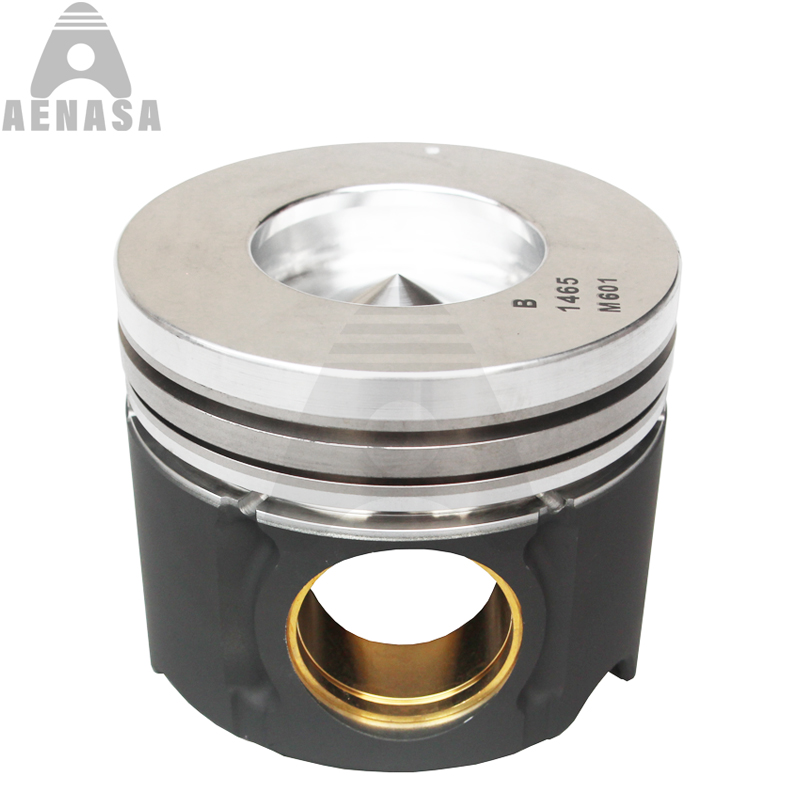

Mitsubishi 4M50 Diesel Engine Spare Parts Piston Kit Set
Engine Model: | 4M50 |
Engine Type: | Diesel Engine |
Bore Diamter: | 114.0 mm |
Material: | AL108/109 |
Surface Treatment: | Sn |
Alfin: | Yes |
Oil Gallery: | Yes |
Steel Pieces: | Yes |
Oem Part Number: | ME994614 |
Unit Weight(kg): | 1.46 kg |

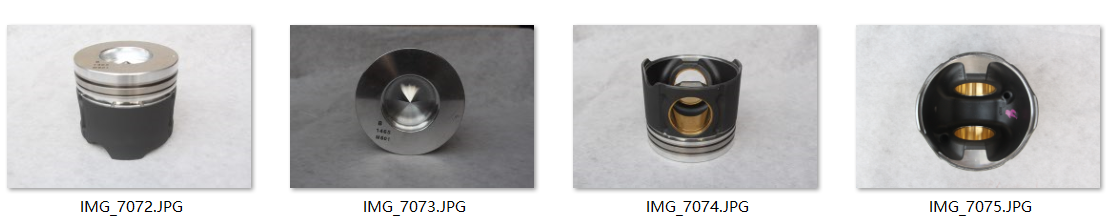

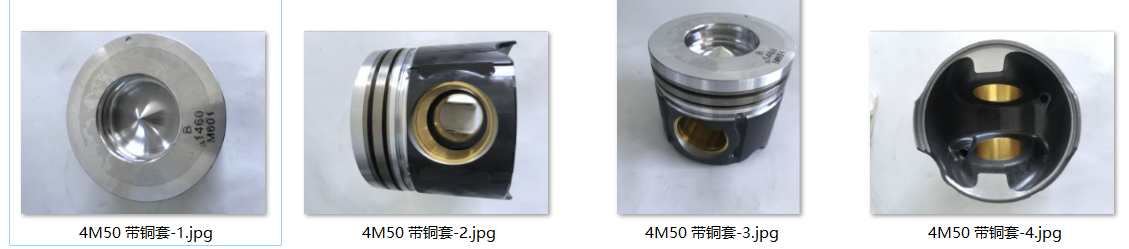

4M50 DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS
Aluminum Piston
Forged Piston
4M50 LINER KIT :
CYLINDER LINER: ME221680 ME221681 ME221682 ME221683 ME221684 ME240319 ME240320 ME240321 ME240322
PISTON KIT: ME994614 1465M601
PISTON RING SET: ME995590 ME993913
Rod Bushing: ME221709
Liner O-RING: non
AE PISTON STRUCTURES:
4M50T DIESEL ENGINE SPARE PARTS LIST
4M50 Cylinder Block
4M50 Cylinder Head
4M50 Cylinder Liner
4M50 Crankshaft & Gear
4M50 Camshaft & Gear
4M50 Connecting Rod
4M50 Connecting Rod Bushing
4M50 Crankshaft Metal /Main Bearing
4M50 Con Rod Metal/ Con Rod Bearing
4M50 Piston & Pin & Lock Ring
4M50 Piston Ring Set
4M50 Overhaul Full Complete Gasket Kit Set
4M50 Head / Upper Gasket Kit
4M50 Block / Lower / Bottom Gasket kit
4M50 Cylinder Head gasket
4M50 Rod / Pin Bushing
4M50 Camshaft Bushing / Bearing
4M50 Thrust Wahser / Bearing
4M50 Water Pump
4M50 Oil Pump
4M50 Valve inlet / exhaust
4M50 Valve Seat in / ex
4M50 Valve Guide
4M50 Valve Tapped , Push Rod, Valve Lock
4M50 Valve Spring, Seat
4M50 Alternator
4M50 Stater
4M50 Turbocharger
4M50 Oil Cooler Core, Cover
4M50 Injector Sleeve
4M50 Piston Cooling Nollze
4M50 Rocker Arm
4M50 Manifold In & Ex
4M50 Flywheel
4M50 Con rod Bolt. Head Bolt
Mitsubishi Diesel Engine Piston Kit
The following popular Mitsubishi engine replacement parts also can be provided too.
1: L2E L3E K3D K4D K3E K4E K3F K4F K3M K4M K4N K4Q
2: S2E S3E S4E S4E1 S4E2 S6E S6E2 S3F S4F S4K-O S4K-N S6K S6KT
3: S3L S3L2 S4L S3Q2 S4Q S4Q2 S4S-O S4S-N S6S S6S-D
4: 4DQ5 4DQ7 4D55 4D56T 4D56U-16V 4D65 4D68 4DR5 4DR51 6DR5 6DR51 4DR7
5: 6DS1 6DS3 6DS5 6DS7-1 6DS7 6DB
6: 4M40 4M40T 4M41 4M41T 4M42 4M50T 4M51 4M51T 6M60T 6M61 8M20 8M21 8M22
7: 4D30 4D31 4D31T 4D32 4D33 4D34 4D34T 4D35 4D35T 4D36 4D37
8: 6D31 6D31T 6D34 6D34T 6D10 6D11 6D14 6D14T 6D14-2AT/3AT 6D15 6D15T 6D15-3AT 6D16 6D16T 6D16-2AT
6D16-3AT 6D17-12V 6D17T-24V
9: 6D20 6D22 6D22T 6D24 6D24T 6D24T-3V 6D40 6D40T
10: 8DC2 8DC4 8DC6 8DC8 8DC81 8DC82 8DC9 8DC9T 8DC91 8DC91T 8DC10 8DC11
11: S6A S8A S12A S6A2 S6A3 S12A2 S12A3 S6B S6B2 S6B3 S6N S6R S12R S16R S6R2 S6R2F
12: NM75 NM90 4N13 4HK 4N14 4P10
