6BT5.9 Piston Body 3906223 Kit 3802060

Basic Information
Model:4BT 6BT
Diameter102.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:9-12 usd/pcs
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:102.0 mm
No. of   Cyl: L4 L6
Total Length:105.4 mm
Comp Height:71.6 mm
Chamber Dia:std mm
Ring Groove:3.0DK+2.4+4.0mm
Pin Size:40*76 mm


Material:AL108/AL109
Package:6/CTN
Warranty:3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:3802060
Oem No.3906223


Cummins 4BT 6BT Diesel Engine Spare Parts Piston Kit Set


Engine   Model:4BT3.9 6BT5.9
Engine Type:Diesel Engine
Bore Diamter:102.0 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 3906223 Kit 3802060
Unit Weight(kg): 1.05 kg

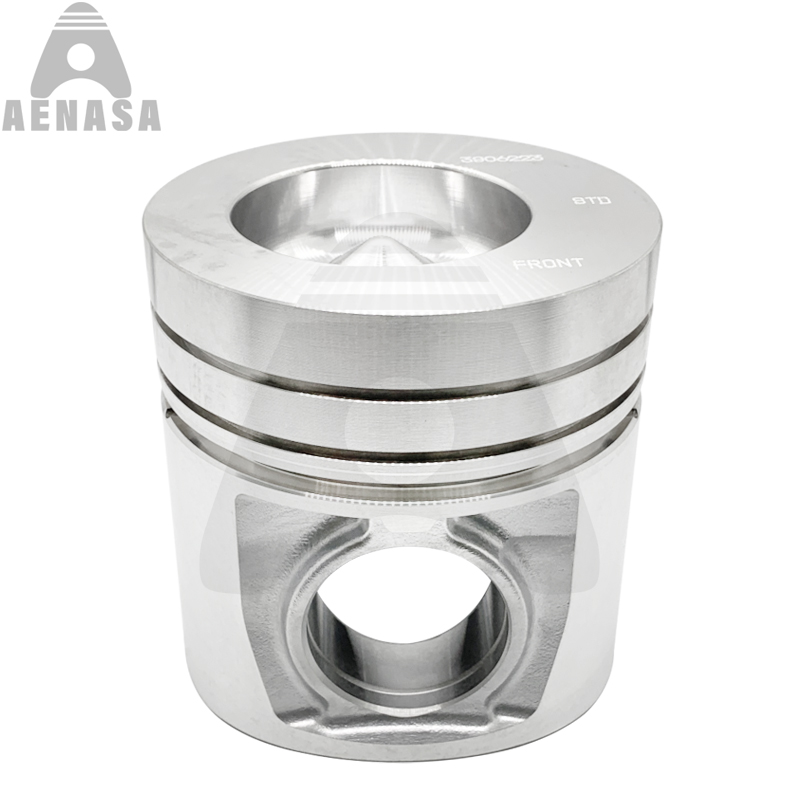

4BT 6BT  PISTON PHOTOS


AE ENGINE PARTS PISTON STRUCTURES


AE PISTON STRUCTURE.jpg




















4BT 6BT we also have the following engine parts


6BT  Cylinder Block

6BT  Cylinder Head

6BT  Cylinder Liner

6BT  Crankshaft  &  Gear

6BT  Camshaft & Gear

6BT  Connecting Rod

6BT  Connecting Rod Bushing

6BT  Crankshaft Metal /Main Bearing

6BT  Con Rod Metal/ Con Rod Bearing

6BT  Piston & Pin & Lock Ring

6BT  Piston Ring Set

6BT  Overhaul Full Complete Gasket Kit Set

6BT  Head / Upper Gasket Kit

6BT  Block / Lower / Bottom Gasket kit

6BT  Cylinder Head gasket

6BT  Rod / Pin Bushing

6BT  Camshaft Bushing / Bearing

6BT  Thrust Wahser / Bearing

6BT  Water Pump

6BT  Oil Pump

6BT  Valve inlet / exhaust

6BT  Valve Seat in / ex

6BT  Valve Guide

6BT  Valve Tapped , Push Rod, Valve Lock

6BT  Valve Spring,  Seat

6BT  Alternator

6BT  Stater

6BT  Turbocharger

6BT  Oil Cooler Core, Cover

6BT  Injector Sleeve

6BT  Piston Cooling Nollze

6BT  Rocker Arm

6BT  Manifold In & Ex

6BT  Flywheel

6BT  Con rod Bolt. Head Bolt


4BT 6BT LINER KITS


Piston Kit Std ( Ratio 17.3:1) 3802060

Piston Body 3906223

Piston Pin 3934048

Retainer, Piston Pin 3901706

Piston Ring Set 3802040

Piston Kit 0.50mm Oversize 3802062

Piston Body 3906209

Piston Pin 3934048

Retainer, Piston Pin 3901706

Piston Ring Set 3806241

Piston Kit 1.00mm Oversize 3802064

Piston Body 3906208

Piston Pin 3934048

Retainer, Piston Pin 3901706

Piston Ring Set 3802044


Cummins Engine Parts Models We can provide:


1:    A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:    B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:    4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:    ISBE 4ISBe 6ISBe QSC ISC8.3

5:    L375 T375 L375 ISL QSL ISLe

6:    L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14  QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QST30


Cummins Engine Piston
