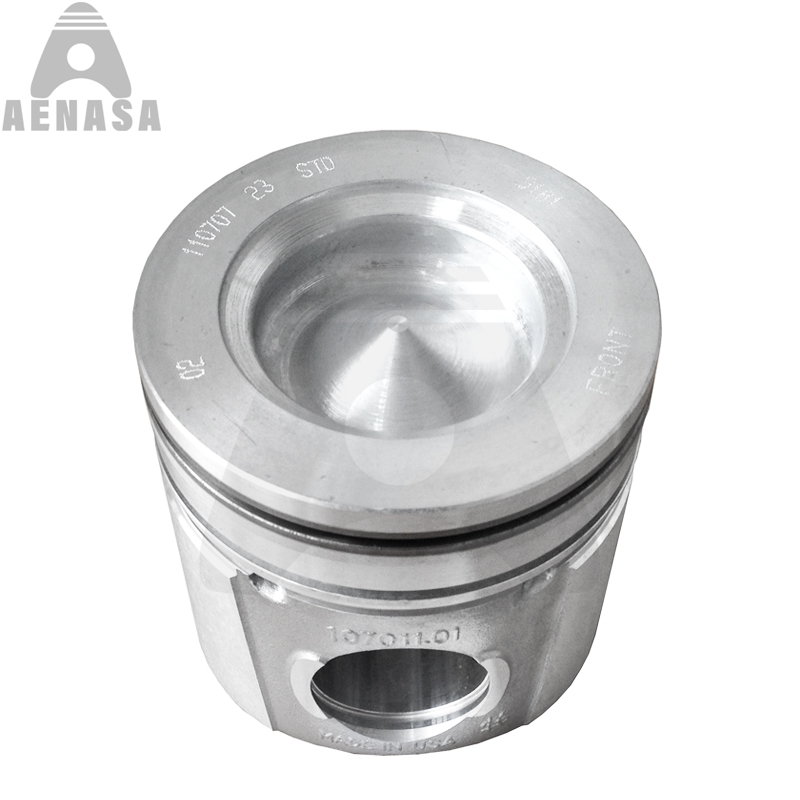

QSB6.7 Engine Piston 4939181

Basic Information
Model:QSB6.7
Diameter107.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:14-20 usd/pcs
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:107.0 mm
No. of   Cyl: L6
Total Length:103.2 mm
Comp Height:69.4 mm
Chamber Dia:59-71 mm
Ring Groove:3.0DK+2.5+3.5 mm
Pin Size:40*90 mm


Material:AL108/AL109
Package:6/CTN
Warranty:3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:4939181
Oem No.4939181


Cummins QSB6.7  Diesel Engine Spare Parts Piston Kit Set


Engine   Model:QSB6.7
Engine Type:Diesel Engine
Bore Diamter:107.0 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 4939181
Unit Weight(kg): 1.65 kg

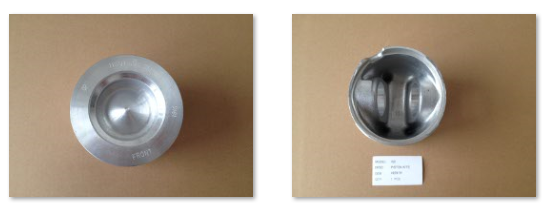

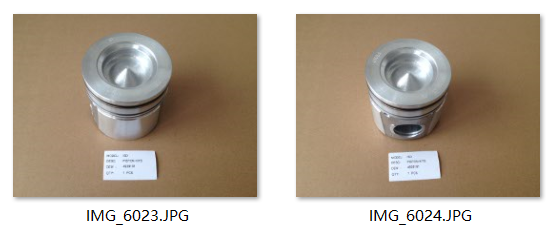

QSB6.7  PISTON PHOTOS





AE ENGINE PARTS PISTON STRUCTURES


AE PISTON STRUCTURE.jpg




















QSB6.7  we also have the following engine parts


QSB6.7    Cylinder Block

QSB6.7    Cylinder Head

QSB6.7    Cylinder Liner

QSB6.7    Crankshaft  &  Gear

QSB6.7    Camshaft & Gear

QSB6.7    Connecting Rod

QSB6.7    Connecting Rod Bushing

QSB6.7    Crankshaft Metal /Main Bearing

QSB6.7    Con Rod Metal/ Con Rod Bearing

QSB6.7    Piston & Pin & Lock Ring

QSB6.7    Piston Ring Set

QSB6.7    Overhaul Full Complete Gasket Kit Set

QSB6.7    Head / Upper Gasket Kit

QSB6.7    Block / Lower / Bottom Gasket kit

QSB6.7    Cylinder Head gasket

QSB6.7    Rod / Pin Bushing

QSB6.7    Camshaft Bushing / Bearing

QSB6.7    Thrust Wahser / Bearing

QSB6.7    Water Pump

QSB6.7    Oil Pump

QSB6.7    Valve inlet / exhaust

QSB6.7    Valve Seat in / ex

QSB6.7    Valve Guide

QSB6.7    Valve Tapped , Push Rod, Valve Lock

QSB6.7    Valve Spring,  Seat

QSB6.7    Alternator

QSB6.7    Stater

QSB6.7    Turbocharger

QSB6.7    Oil Cooler Core, Cover

QSB6.7    Injector Sleeve

QSB6.7    Piston Cooling Nollze

QSB6.7    Rocker Arm

QSB6.7    Manifold In & Ex

QSB6.7    Flywheel

QSB6.7    Con rod Bolt. Head Bolt


QSB6.7  LINER KITS


Piston Kit (Std) Grade A 3800838 6

Piston Body 3946050 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 3804990 6



Piston Kit (Std) Grade B 3800839 6

Piston Body 3946051 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 3804990 6



Piston Kit (Std) Grade C 3800840 6

Piston Body 3946052 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 3804990 6



Piston Kit (0.50mm) 3800841 6

Piston Body 3946053 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 3806201 6



Piston Kit (1.00mm) 3800842 6

Piston Body 3946054 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 3806203 6


Piston Kit (Std) 4025072 6

Piston Body 3972880 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089258 6



Piston Kit (0.50mm) 4089422 6

Piston Body 3972881 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089181 6



Piston Kit (1.00mm) 4089423 6

Piston Body 3972882 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089182 6


Piston Kit (Std) 4089950 6

Piston Body 3965497 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089948 6



Piston Kit (0.50mm) 4089183 6

Piston Body 3966675 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089181 6



Piston Kit (1.00mm) 4089184 6

Piston Body 3966676 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089182 6

Piston Kit (Std) 4089260 6

Piston Body 3958675 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089260 6



Piston Kit (0.50mm) 4089185 6

Piston Body 3949843 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089181 6



Piston Kit (1.00mm) 4089186 6

Piston Body 3949844 6

Retainer, Piston Pin 3920691 12

Piston Pin 3934047 6

Piston Ring Set 4089182 6



Cummins Engine Parts Models We can provide:


1:    A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:    B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:    4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:    ISBE 4ISBe 6ISBe QSC ISC8.3

5:    L375 T375 L375 ISL QSL ISLe

6:    L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14  QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QST30


Cummins Engine Piston
