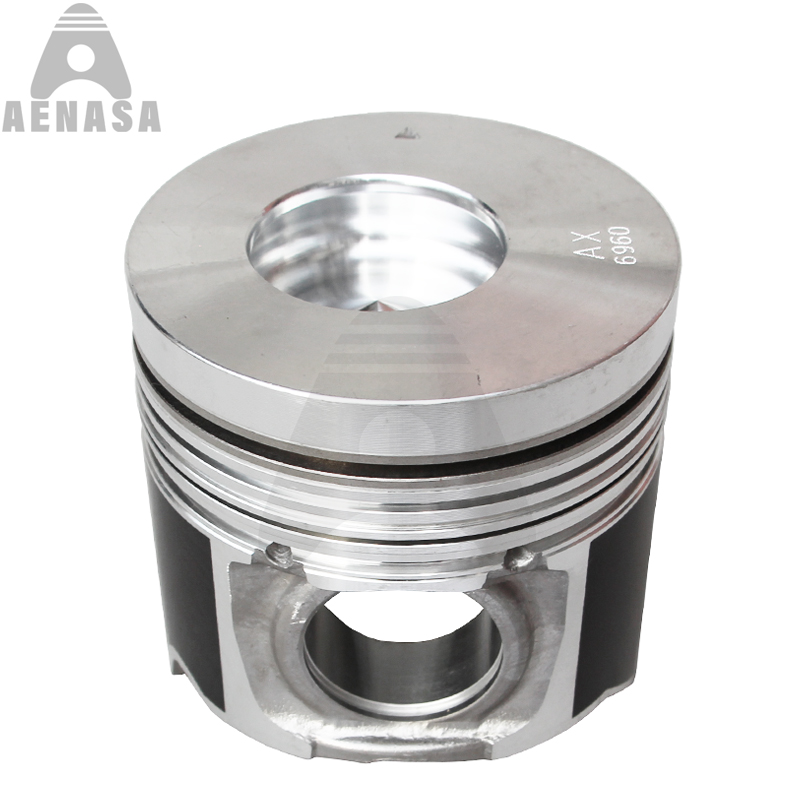

4HE1-TC Engine Parts Piston 8-97251-696-0 8-94391-696-0 8-97251-696-1

Basic Information
Model:4HE1-TC
Diameter110.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:18-22 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:110.0 mm
No. of   Cyl: L4 L6
Total Length:110.0 mm
Comp Height:66.2 mm
Chamber Dia:49.5 mm
Ring Groove:3K+2+1.2+3 mm
Pin Size:40*87 mm


Package:4/6/8PCS/CTN
Warranty:3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:8-97251-696-0  8-97251-696-1
Oem No.8-94391-696-0


Isuzu 4HE1-TC Diesel Engine Spare Parts Piston Kit Set


Engine   Model:4HE1-TC
Engine Type:Diesel Engine
Bore Diamter:110.0 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number:

 8972516960 8943916960 8972516961

Unit Weight(kg): 1.68 kg


4HE1-TC LINER KITS


Cylinder Liner Sleeve:  8-97176-723-0 8-97176-723-1

Piston Kit:    8-97251696-0 8-94391696-0 8-97251696-1

Piston Ring Set:  8-97166-992-0

Pin Bushing:  8-94394-613-0

O-ring: Non

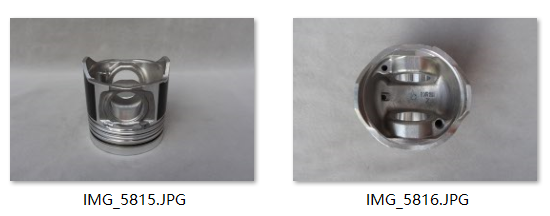

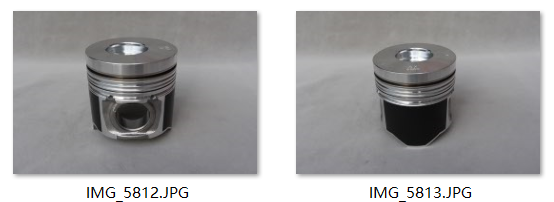

4HE1-TC PISTON MORE PHOTOS





MORE ISUZU ENGINE PISTON CAN BE PROVIDED:




About the  4HE1-TC Diesel Engine, the following spare parts also can be provided, if any intersest, please feel free to contact with us.


4HE1-TC    Cylinder Block

4HE1-TC    Cylinder Head

4HE1-TC    Cylinder Liner

4HE1-TC    Crankshaft  &  Gear

4HE1-TC    Camshaft & Gear

4HE1-TC    Connecting Rod

4HE1-TC    Connecting Rod Bushing

4HE1-TC    Crankshaft Metal /Main Bearing

4HE1-TC    Con Rod Metal/ Con Rod Bearing

4HE1-TC    Piston & Pin & Lock Ring

4HE1-TC    Piston Ring Set

4HE1-TC    Overhaul Full Complete Gasket Kit Set

4HE1-TC    Head / Upper Gasket Kit

4HE1-TC    Block / Lower / Bottom Gasket kit

4HE1-TC    Cylinder Head gasket

4HE1-TC    Rod / Pin Bushing

4HE1-TC    Camshaft Bushing / Bearing

4HE1-TC    Thrust Wahser / Bearing

4HE1-TC    Water Pump

4HE1-TC    Oil Pump

4HE1-TC    Valve inlet / exhaust

4HE1-TC    Valve Seat in / ex

4HE1-TC    Valve Guide

4HE1-TC    Valve Tapped , Push Rod, Valve Lock

4HE1-TC    Valve Spring,  Seat

4HE1-TC    Alternator

4HE1-TC    Stater

4HE1-TC    Turbocharger

4HE1-TC    Oil Cooler Core, Cover

4HE1-TC    Injector Sleeve

4HE1-TC    Piston Cooling Nollze

4HE1-TC    Rocker Arm

4HE1-TC    Manifold In & Ex

4HE1-TC    Flywheel

4HE1-TC    Con rod Bolt. Head Bolt


AE ENGINE PARTS PISTON STRUCTURES


AE PISTON STRUCTURE.jpg

ISUZU ENGINE MODELS:



1: 3KB1 3KC1 3KR1 3KR2 3LB1 3LD1 3LD2 4LB1 4LE1 4LE2-DI 4LE2-EI

2: 4EC1 4EE1 4EE1T 4EE2 4FA1 4FB1 4FC1 4FD1 4FG1

3: C190 C221 C223 C240 C330 DA120 DA220 DA640

4: 4JA1 4JA1T 4JB1 4JB1T 4JC1 4JE1 4JG1 4JG2 4JG2T 4JX1 4JH1-TC 4JJ1-TC 4JK1-TC

5: 4BA1 4BB1 4BC1 4BC2 4BD1 4BD1T 4BD2 4BD2T 4BE1 4BG1 4BG1T

6: 4HE1 4HE1-TC 4HF1 4HG1 4HG1T 4HK1-700P 4HK1-TC 4HJ1 4HL1

7: 6BB1 6BD1 6BD1T 6BG1 6BG1T 6BG1-TC(3R/4R) 6BF1

8: 6HE1 6HE1-TC 6HH1 6HK1T  6HK1-TC 6HL1 6HL1-TC

9: 6SA1 6SA1T 6SD1 6SD1T 6SD1-TC 6UZ1 6QA1

10: 6WA1 6WA1-TC 6WG1 6WG1T-DI 6WG1T-EI 6WF1

11: E120 E120T 6RA1 6RA1T 6RB1 6RB1T

12:  8PA1 10PA1 12PA1 8PB1 10PB1 12PB1 8PC1 8PC1T 10PC1 10PC1T 12PC1 12PC1T 8PD1 10PD1 12PD1 8PE1 10PE1 12PE1
