6CT Engine Spare Parts Piston 3919565 240HP

Basic Information
Model:6CT8.3  240HP
Diameter114.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:18-22 usd/pcs
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:114.0 mm
No. of   Cyl: L6
Total Length:120.3 mm
Comp Height:78.8 mm
Chamber Dia:66.7 mm
Ring Groove:3.5DK+3DK+4.0
Pin Size:45*91 mm



Material:AL108/AL109
Package:6/CTN
Warranty:3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:3919565
Oem No.3919565


Cummins 6CT 6CT8.3 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:6CT 6CT8.3
Engine Type:Diesel Engine
Bore Diamter:114.0 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 3919565
Unit Weight(kg): 1.85 kg

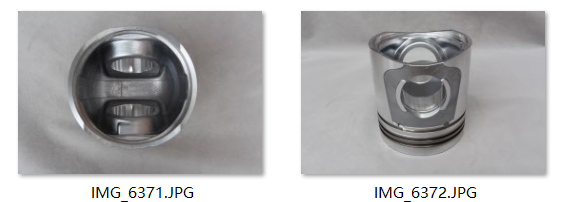

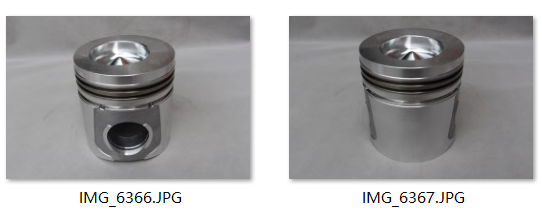

6CT 6CT8.3 PISTON PHOTOS





AE ENGINE PARTS PISTON STRUCTURES


AE PISTON STRUCTURE.jpg


6CT 6CT8.3 we also have the following engine parts


6CT8.3  Cylinder Block

6CT8.3  Cylinder Head

6CT8.3  Cylinder Liner

6CT8.3  Crankshaft  &  Gear

6CT8.3  Camshaft & Gear

6CT8.3  Connecting Rod

6CT8.3  Connecting Rod Bushing

6CT8.3  Crankshaft Metal /Main Bearing

6CT8.3  Con Rod Metal/ Con Rod Bearing

6CT8.3  Piston & Pin & Lock Ring

6CT8.3  Piston Ring Set

6CT8.3  Overhaul Full Complete Gasket Kit Set

6CT8.3  Head / Upper Gasket Kit

6CT8.3  Block / Lower / Bottom Gasket kit

6CT8.3  Cylinder Head gasket

6CT8.3  Rod / Pin Bushing

6CT8.3  Camshaft Bushing / Bearing

6CT8.3  Thrust Wahser / Bearing

6CT8.3  Water Pump

6CT8.3  Oil Pump

6CT8.3  Valve inlet / exhaust

6CT8.3  Valve Seat in / ex

6CT8.3  Valve Guide

6CT8.3  Valve Tapped , Push Rod, Valve Lock

6CT8.3  Valve Spring,  Seat

6CT8.3  Alternator

6CT8.3  Stater

6CT8.3  Turbocharger

6CT8.3  Oil Cooler Core, Cover

6CT8.3  Injector Sleeve

6CT8.3  Piston Cooling Nollze

6CT8.3  Rocker Arm

6CT8.3  Manifold In & Ex

6CT8.3  Flywheel

6CT8.3  Con rod Bolt. Head Bolt



6CT LINER KITS


Piston Kit 3802396

Piston Body 3923165

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Early) 3802374

Cylinder kit (Late) 3802402

PISTON (Group 2)

Piston Kit Std 3802397

Piston Body 3923163

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Early) 3802400

Cylinder kit (Late) 3802403

PISTON (Group 3)

Piston Kit Std 3802398

Piston Body 3923164

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Early) 3802401

Cylinder kit (Late) 3802404

PISTON (Group 4)

Piston Kit Std 4020059

Piston Body 4019886

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Early) 4020060

Cylinder kit (Late) 4020061

PISTON (Group 5)

Piston Kit Std 3802263

Piston Body 3917707

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Early) 3802388

Cylinder kit (Late) 3802406

Piston Kit Std 3802601

Piston Body 3925878

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Late) 3802609

PISTON (Group 7)

Piston Kit Std 3802657

Piston Body 3929161

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Late) 3802811

PISTON

Piston Kit Std 3802280

Piston Body 3919566

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit (Early) 3802405

Cylinder kit (Late) 3934580

PISTON

Piston Kit Std 3802344

Piston Body 3919247

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

PISTON

Piston Kit Std 4025366

Piston Body 4019886

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802538

Cylinder kit (Late) 4020062

Piston Kit Std 4089348

Piston Body 3992117

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 4025290

Cylinder kit (Late) 4025293

PISTON

Piston Kit Std 3802602

Piston Body 3925879

Piston Pin 3934046

Retainer, Piston Pin 3920692

Piston Ring Set 3802429

Cylinder kit 3802610

Liner, Cylinder Kit 3802370

Liner, Cylinder (133mm Flange) 3907792

Seal, Liner 3907177

Liner, Cylinder Kit 3802407

Liner, Cylinder (131mm Flange) 3919937

Seal, Liner 3907177

Liner, Cylinder Kit 3800328

Liner, Cylinder (131mm Flange) 3944344

Seal, Liner 3907177


Cummins Engine Parts Models We can provide:


1:    A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:    B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:    4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:    ISBE 4ISBe 6ISBe QSC ISC8.3

5:    L375 T375 L375 ISL QSL ISLe

6:    L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14  QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QST30


Cummins Engine Piston
