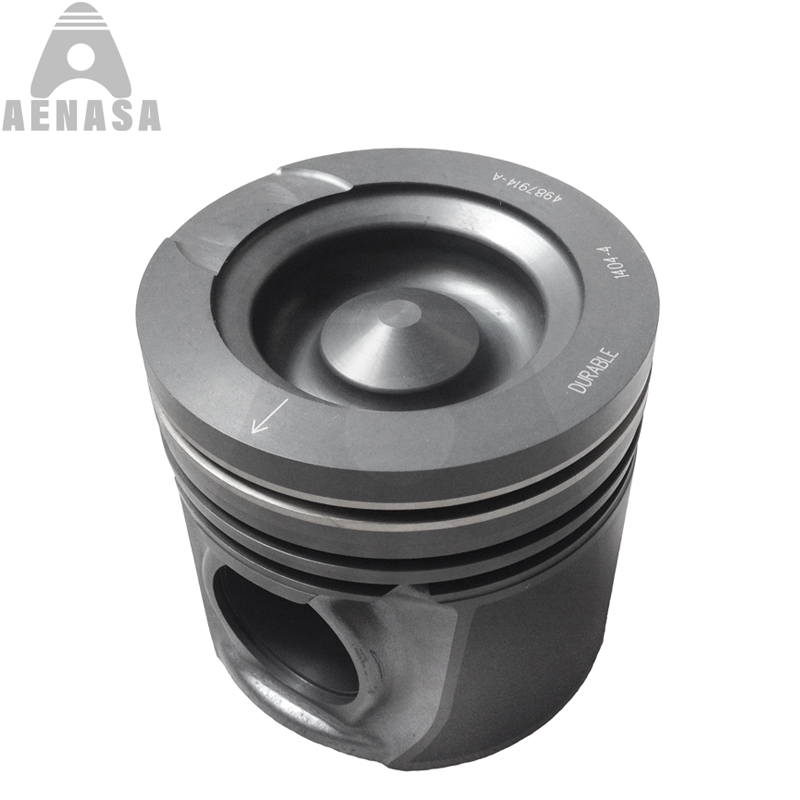

L375 6L ISLE Piston 4987914 5267632

Basic Information
Model:L375 T375
Diameter114.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:40-50 usd/pcs
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:114.0 mm
No. of   Cyl: L6
Total Length:110.0 mm
Comp Height:74.5 mm
Chamber Dia:65-80mm
Ring Groove:3.5DK+3+4 mm
Pin Size:45*91 mm


Material:AL108/AL109
Package:6/CTN
Warranty:3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:4936496 4987914
Oem No.5267632 5255218


Cummins L375 T375 Diesel Engine Spare Parts Piston Kit Set


Engine   Model:L375 T375
Engine Type:Diesel Engine
Bore Diamter:114.0 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 4936496 4987914 5267632 5255218
Unit Weight(kg): 1.85 kg

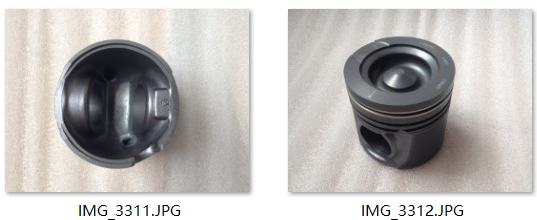

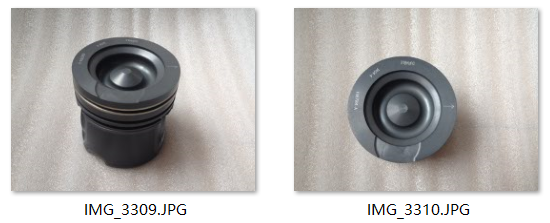

L375 PISTON PHOTOS







AE ENGINE PARTS PISTON STRUCTURES


AE PISTON STRUCTURE.jpg


ISLe QSL we also have the following engine parts


L375     Cylinder Block

L375     Cylinder Head

L375     Cylinder Liner

L375     Crankshaft  &  Gear

L375     Camshaft & Gear

L375     Connecting Rod

L375     Connecting Rod Bushing

L375     Crankshaft Metal /Main Bearing

L375     Con Rod Metal/ Con Rod Bearing

L375     Piston & Pin & Lock Ring

L375     Piston Ring Set

L375     Overhaul Full Complete Gasket Kit Set

L375     Head / Upper Gasket Kit

L375     Block / Lower / Bottom Gasket kit

L375     Cylinder Head gasket

L375     Rod / Pin Bushing

L375     Camshaft Bushing / Bearing

L375     Thrust Wahser / Bearing

L375     Water Pump

L375     Oil Pump

L375     Valve inlet / exhaust

L375     Valve Seat in / ex

L375     Valve Guide

L375     Valve Tapped , Push Rod, Valve Lock

L375     Valve Spring,  Seat

L375     Alternator

L375     Stater

L375     Turbocharger

L375     Oil Cooler Core, Cover

L375     Injector Sleeve

L375     Piston Cooling Nollze

L375     Rocker Arm

L375     Manifold In & Ex

L375     Flywheel

L375     Con rod Bolt. Head Bolt


ISL QSL LINER KITS


Cylinder kit KM9646

Piston Kit 4089646

Crown, Piston 3966722

Skirt, Piston 3966721

Retainer, Piston Pin 3920692

Piston Pin 3950549

Piston Ring Set 4089644

Liner & Seal Kit 3800328

Liner, Cylinder Kit 3800328

Liner, Cylinder (131mm Flange) 3944344

Seal, Liner 3907177


Cummins Engine Parts Models We can provide:


1:    A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:    B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:    4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:    ISBE 4ISBe 6ISBe QSC ISC8.3

5:    L375 T375 L375 ISL QSL ISLe

6:    L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14  QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QST30
