NH220 Piston AR7510 199821 151850 200710 184800 3019287 200680

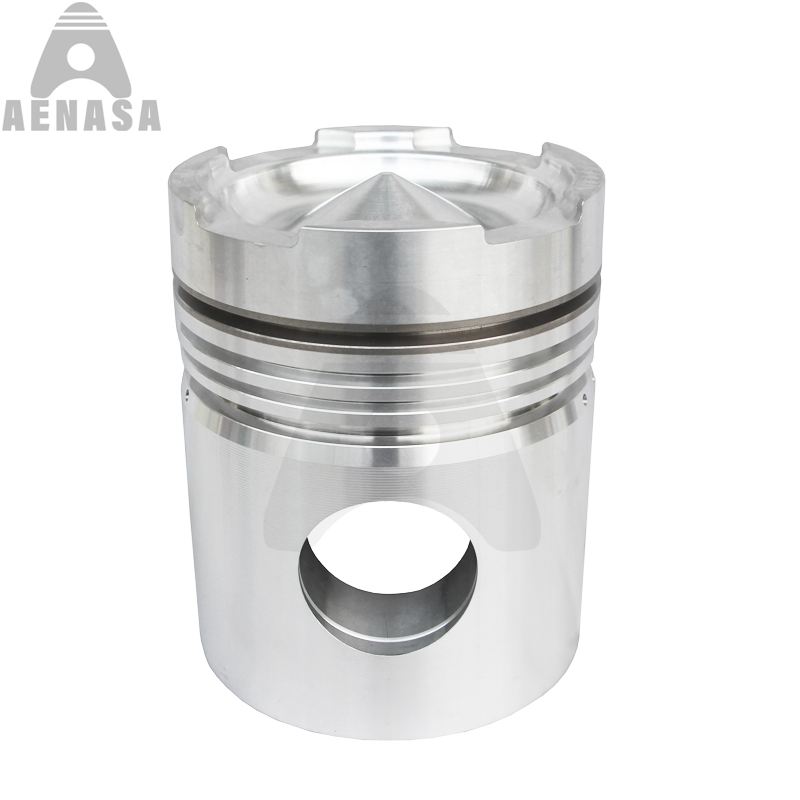

CUMMINS NH220 Diesel Engine Spare Parts Piston Kit Set

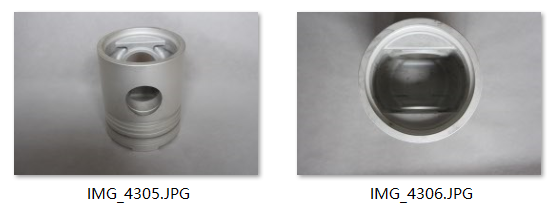

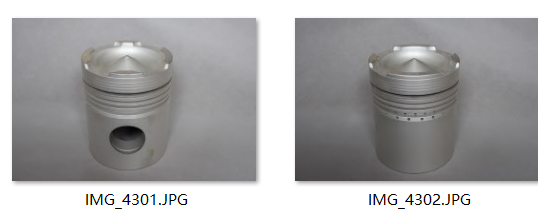

CUMMINS NH220 PISTON MORE PHOTOS

Cummins Engine Parts Piston

About the NH220 Diesel Engine, the following spare parts also can be provided, if any intersest, please feel free to contact with us.

NH220  Cylinder Block

NH220  Cylinder Head

NH220  Cylinder Liner

NH220  Crankshaft  &  Gear

NH220  Camshaft & Gear

NH220  Connecting Rod

NH220  Connecting Rod Bushing

NH220  Crankshaft Metal /Main Bearing

NH220  Con Rod Metal/ Con Rod Bearing

NH220  Piston & Pin & Lock Ring

NH220  Piston Ring Set

NH220  Overhaul Full Complete Gasket Kit Set

NH220  Head / Upper Gasket Kit

NH220  Block / Lower / Bottom Gasket kit

NH220  Cylinder Head gasket

NH220  Rod / Pin Bushing

NH220  Camshaft Bushing / Bearing

NH220  Thrust Wahser / Bearing

NH220  Water Pump

NH220  Oil Pump

NH220  Valve inlet / exhaust

NH220  Valve Seat in / ex

NH220  Valve Guide

NH220  Valve Tapped , Push Rod, Valve Lock

NH220  Valve Spring,  Seat

NH220  Alternator

NH220  Stater

NH220  Turbocharger

NH220  Oil Cooler Core, Cover

NH220  Injector Sleeve

NH220  Piston Cooling Nollze

NH220  Rocker Arm

NH220  Manifold In & Ex

NH220  Flywheel

NH220  Con rod Bolt. Head Bolt

CUMMINS  NH220 ENGINE PISTON ROD PARTS WE CAN SUPPLY:

Cylinder Kit AR7399

Piston Body (Tapered Pin Boss) 200710

Piston Pin 203070

Retainer, Piston Pin 175755

Piston Ring Set AR12098

Cylinder Liner 184400

Seal, Crevice 215983

Seal, O Ring 216879

Seal, O Ring 181449

Piston Kit AR7440

Piston Body (Tapered Pin Boss) 200710

Piston Pin 203070

Retainer, Piston Pin 175755

Liner Kit BM98224

Cylinder Liner 184400

Seal, Crevice 215983

Seal, O Ring 216879

Seal, O Ring 181449

15:1 Compression Ratio (4 Valve Applications) (NH220/NT743)

Cylinder Kit AR7383

Piston Body (Straight Pin Boss) 199821

Piston Pin 203070

Retainer, Piston Pin 175755

Piston Ring Set AR12098

Cylinder Liner 184400

Seal, Crevice 215983

Seal, O Ring 216879

Seal, O Ring 181449

Piston Kit AR7510

Piston Body (Straight Pin Boss) 199821

Piston Pin 203070

Retainer, Piston Pin 175755

Liner Kit BM98224

Cylinder Liner 184400

Seal, Crevice 215983

Seal, O Ring 216879

Seal, O Ring 181449

AE ENGINE PARTS PISTON STRUCTURES

CUMMINS ENGINE MODELS:

1:    A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:    B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:    4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:    ISBE 4ISBe 6ISBe QSC ISC8.3

5:    L375 T375 L375 ISL QSL ISLe

6:    L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14  QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QST30
