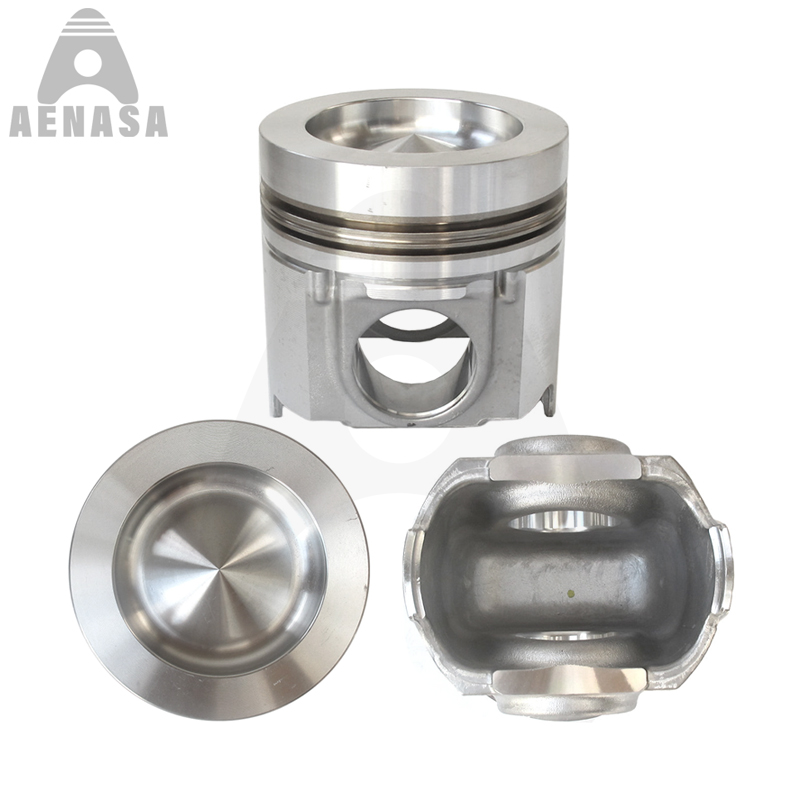

3408 Engine Parts Piston 9Y4004

Basic Information
Model:3406 3408 3412
Diameter137.16 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:26-30 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:137.16 mm
No. of   Cyl: 6 8 12
Total Length:137.16 mm
Comp Height:88.32 mm
Chamber Dia:94.0 mm
Ring Groove:3.97*3.17*3.17
Pin Size:50.8*111.5 mm
Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:9Y4004
Oem No.9Y4004


Caterpillar 3406  3408 3412  Diesel Engine Spare Parts Piston Kit Set


Essential details


Engine   Model:3406 3408 3412
Engine Type:Diesel Engine
Bore Diamter:137.16 mm
Material:AL109 Skirt
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 9Y4004
Unit Weight(kg): 2.48 kg


More Photos Of  3406  Piston




3406  3408 3412 137.16 MM Engine piston rod parts


Piston, Pin, Clips & Rings 1W9373

Piston, Pin, Clips & Rings 2W9053

Piston, Pin, Clips & Rings 8N0839

Piston, Pin, Clips & Rings 8N0843

Piston Body C/W Clips 101-0016

Piston Body C/W Clips 116-8154

Piston Body C/W Clips 160-1131

Piston Body C/W Clips 290-0017

Piston Body C/W Clips 378-0509

Piston Body C/W Clips 6N4126

Piston Body C/W Clips 7E0292

Piston Body C/W Clips 7E8656

Piston Body C/W Clips 7E8700

Piston Body C/W Clips 7E8885

Piston Body C/W Clips 7N3509

Piston Body C/W Clips 7N3633

Piston Body C/W Clips 9Y7212

Piston Body C/W Clips 9Y9889

Crown Piston 125-8869

Crown Piston 168-4540

Skirt Piston 130-0241

Pin Piston 168-7246

Pin Piston 7N9806

Pin Piston 7N9807

Pin Piston 8N1608

Retainer Piston Pin 7E1177

Retainer Piston Pin 8N7295

Ring Piston (Top) 134-3761

Ring Piston (Top) 144-5902

Ring Piston (Top) 346-3340

Ring Piston (Intermediate) 164-4187

Ring Piston (Intermediate) 176-5749

Ring Piston (Intermediate) 2P2817

Ring Piston (Oil) 172-3284

Ring Piston (Oil) 189-9771

Ring Piston (Oil) 7N7078

Ring Set Piston 168-4540

Ring Set Piston 1W8922

Ring Set Piston 8N0822

Liner 197-9322

Liner Seal 110-2220

Liner Seal 142-6217

Liner Seal Kit 160-9874

Liner & Seal Kit 197-9322


AENASA PISTON STRUCTURE:

AE PISTON STRUCTURE.jpg

We also can provide the other engine repair overhaul  parts for 3306 3408 3412 Diesel Engine:


3406  Cylinder Block

3406  Cylinder Head

3406  Cylinder Liner

3406  Crankshaft  &  Gear

3406  Camshaft & Gear

3406  Connecting Rod

3406  Connecting Rod Bushing

3406  Crankshaft Metal /Main Bearing

3406  Con Rod Metal/ Con Rod Bearing

3406  Piston & Pin & Lock Ring

3406  Piston Ring Set

3406  Overhaul Full Complete Gasket Kit Set

3406  Head / Upper Gasket Kit

3406  Block / Lower / Bottom Gasket kit

3406  Cylinder Head gasket

3406  Rod / Pin Bushing

3406  Camshaft Bushing / Bearing

3406  Thrust Wahser / Bearing

3406  Water Pump

3406  Oil Pump

3406  Valve inlet / exhaust

3406  Valve Seat in / ex

3406  Valve Guide

3406  Valve Tapped , Push Rod, Valve Lock

3406  Valve Spring,  Seat

3406  Alternator

3406  Stater

3406  Turbocharger

3406  Oil Cooler Core, Cover

3406  Injector Sleeve

3406  Piston Cooling Nollze

3406  Rocker Arm

3406  Manifold In & Ex

3406  Flywheel

3406  Con rod Bolt. Head Bolt


The following popular Caterpillar  engine replacement parts also can be provided too.


D-Series:               D330  D333 D342 D343 D353

30-Series:              3013C  3014 3024 3024C 3044C 3044T 3046 3054 3054B 3054C 3054E 3056 3056B 3056E 3064 3066

31/32/33-Series:   3114 3116 3126 3176 3196  3204 3208 3304-DI 3304-PC 3306-DI 3306-PC

34/35-Series:        3406-O 3406E  3408 3408E  3412 3412E 3508 3512 3516

C-Series:               C1.1 C1.5  C2.2 C2.4 C2.6 C3.3 C3.4 C3.4B C4.2 C4.4-EI C4.4-DI C6.4

                             C6.6-EI C6.6-DI C7.1-DI C7.1-EI C7.2  C9.3 C9.3B

C-Series:               C7 C9 C-9 C10 C11 C12 C13 C15 C16  C18 C27 C32
