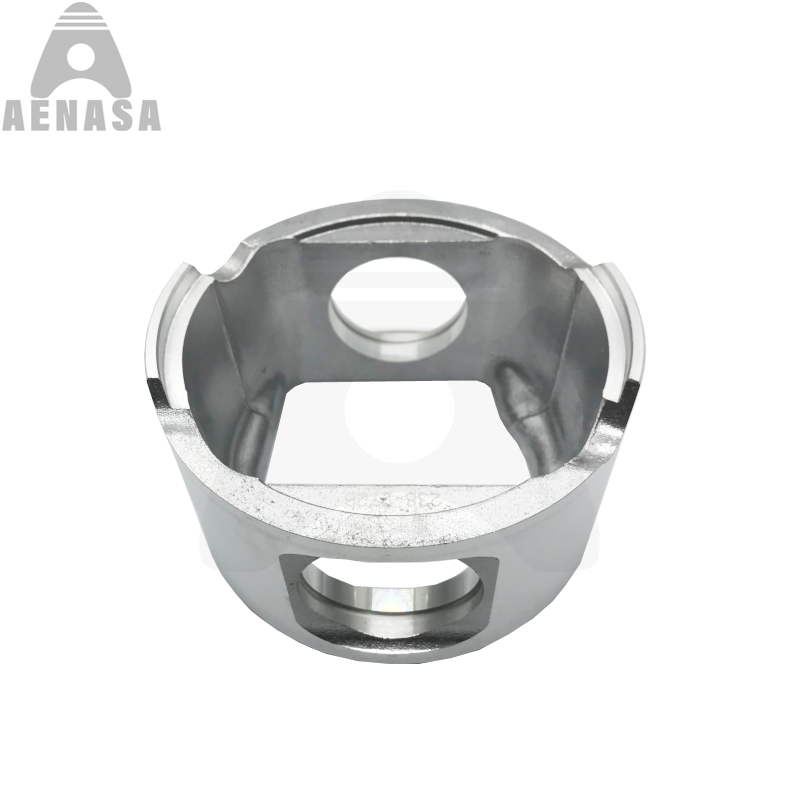

3126 Piston Skirt 238-2726 2382726

Basic Information
Model:3126
Diameter110.0mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:55-65 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:110.0 mm
No. of   Cyl: L6
Total Length:93.4mm
Comp Height:59.0mm
Chamber Dia:75.0mm
Ring Groove:3.5+3.0+4.0
Pin Size:40*90 mm

Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:238-2726
Oem No.2382726


Caterpillar 3126 Diesel Engine Spare Parts Piston Kit Set


Essential details


Engine   Model:3126
Engine Type:Diesel Engine
Bore Diamter:110.0 mm
Material:AL109 Skirt  Steel Head
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 238-2726 2382726
Unit Weight(kg): 0.6 kg

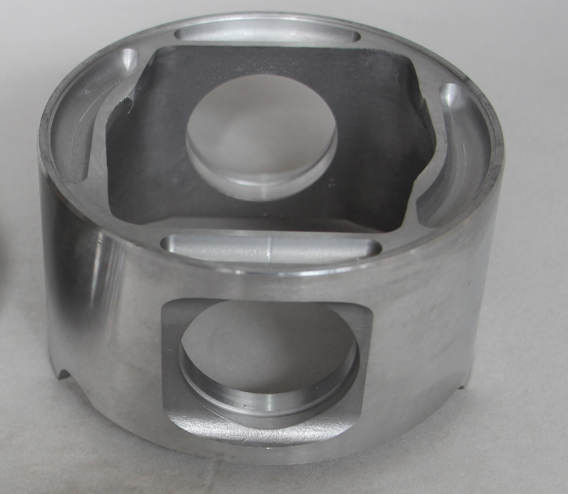

More Photos Of  3126  Piston






3126 110.0MM Engine piston rod parts


Piston Body C/W Clips 238-2729

Crown Piston 113-6119

Crown Piston 133-4983

Crown Piston 133-5043

Crown Piston 133-5044

Crown Piston 144-3444

Crown Piston 150-4621

Crown Piston 164-6556

Crown Piston 172-3282

Crown Piston 175-3671

Skirt Piston 238-2726

Pin Piston 168-7224

Pin Piston 168-7226

Retainer Piston Pin 7C0111

Ring Piston (Top) 197-9386

Ring Piston (Intermediate) 115-4102

Ring Piston (Intermediate) 197-9277

Ring Piston (Oil) 197-9354

Ring Set Piston 164-6556

Liner 107-7604


AENASA PISTON STRUCTURE:

AE PISTON STRUCTURE.jpg

We also can provide the other engine repair overhaul  parts for 3126  Diesel Engine:


3126   Cylinder Block

3126   Cylinder Head

3126   Cylinder Liner

3126   Crankshaft  &  Gear

3126   Camshaft & Gear

3126   Connecting Rod

3126   Connecting Rod Bushing

3126   Crankshaft Metal /Main Bearing

3126   Con Rod Metal/ Con Rod Bearing

3126   Piston & Pin & Lock Ring

3126   Piston Ring Set

3126   Overhaul Full Complete Gasket Kit Set

3126   Head / Upper Gasket Kit

3126   Block / Lower / Bottom Gasket kit

3126   Cylinder Head gasket

3126   Rod / Pin Bushing

3126   Camshaft Bushing / Bearing

3126   Thrust Wahser / Bearing

3126   Water Pump

3126   Oil Pump

3126   Valve inlet / exhaust

3126   Valve Seat in / ex

3126   Valve Guide

3126   Valve Tapped , Push Rod, Valve Lock

3126   Valve Spring,  Seat

3126   Alternator

3126   Stater

3126   Turbocharger

3126   Oil Cooler Core, Cover

3126   Injector Sleeve

3126   Piston Cooling Nollze

3126   Rocker Arm

3126   Manifold In & Ex

3126   Flywheel

3126   Con rod Bolt. Head Bolt


The following popular Caterpillar  engine replacement parts also can be provided too.


D-Series:               D330  D333 D342 D343 D353

30-Series:              3013C  3014 3024 3024C 3044C 3044T 3046 3054 3054B 3054C 3054E 3056 3056B 3056E 3064 3066

31/32/33-Series:   3114 3116 3126 3176 3196  3204 3208 3304-DI 3304-PC 3306-DI 3306-PC

34/35-Series:        3406-O 3406E  3408 3408E  3412 3412E 3508 3512 3516

C-Series:               C1.1 C1.5  C2.2 C2.4 C2.6 C3.3 C3.4 C3.4B C4.2 C4.4-EI C4.4-DI C6.4

                             C6.6-EI C6.6-DI C7.1-DI C7.1-EI C7.2  C9.3 C9.3B

C-Series:               C7 C9 C-9 C10 C11 C12 C13 C15 C16  C18 C27 C32
