3046 Engine Piston 107-0984 1070984

Basic Information
Model:3046
Diameter94.0mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:11-15 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:94.0 mm
No. of   Cyl: L 6
Total Length:90.3 mm
Comp Height:55.3 mm
Chamber Dia:55.0 mm
Ring Groove:2.5K+2.0+4.5 mm
Pin Size:30*77 mm

Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:107-0984
Oem No.1070984

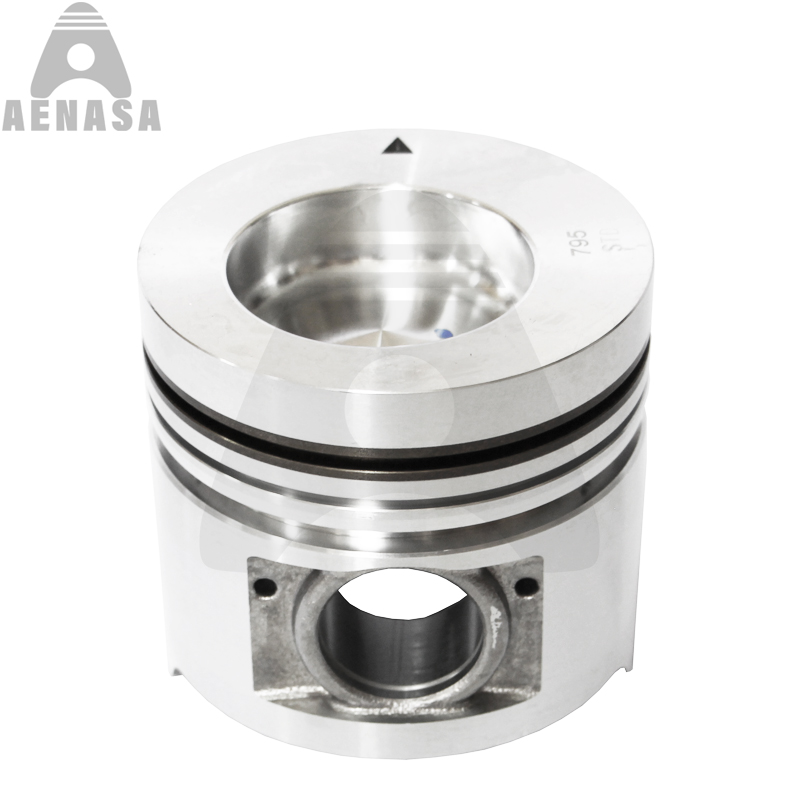

Caterpillar 3046 Diesel Engine Spare Parts Piston Kit Set


Essential details


Engine   Model:3046
Engine Type:Diesel Engine
Bore Diamter:94.0 mm
Material:AL109
Surface Treatment:Sn/MoS2/Phosphate/Nitride
Alfin:Yes/No
Oil Gallery:Yes/No
Steel Pieces:Yes/No
Oem Part Number: 107-0984 1070984
Unit Weight(kg): 0.8 kg

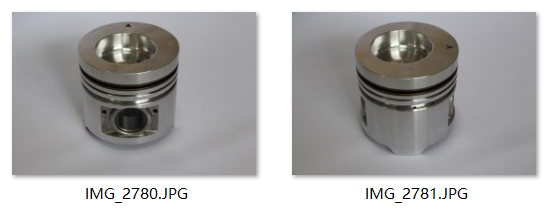

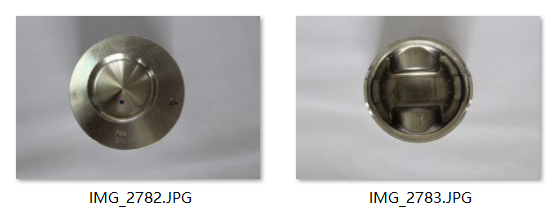

More Photos Of 3046 Piston





3046 94.0MM Engine piston rod parts


103-2857 SET-PISTON RING

103-2858 SET-PISTON RING (0.25-MM OS)

103-2859 SET-PISTON RING (0.5-MM OS)

103-9679 PIN-PISTON

103-9680 ROD AS-CONNECTING

128-2955 BOLT-CONNECTING ROD

128-2956 NUT

128-2958 BUSHING

103-9683 BEARING-CONNECTING ROD (STANDARD)

103-9684 BEARING-CONNECTING ROD (0.25-MM US)

103-9685 BEARING-CONNECTING ROD (0.5-MM US)

103-9686 BEARING-CONNECTING ROD (0.75-MM US)

104-1236 RING-SNAP

107-0984 PISTON

107-8255 PISTON (0.25-MM OS)

107-8256 PISTON (0.5-MM OS)

122-7311 SLEEVE-PISTON


AENASA PISTON STRUCTURE:

AE PISTON STRUCTURE.jpg

We also can provide the other engine repair overhaul  parts for 3046 Diesel Engine:


3046  Cylinder Block

3046  Cylinder Head

3046  Cylinder Liner

3046  Crankshaft  &  Gear

3046  Camshaft & Gear

3046  Connecting Rod

3046  Connecting Rod Bushing

3046  Crankshaft Metal /Main Bearing

3046  Con Rod Metal/ Con Rod Bearing

3046  Piston & Pin & Lock Ring

3046  Piston Ring Set

3046  Overhaul Full Complete Gasket Kit Set

3046  Head / Upper Gasket Kit

3046  Block / Lower / Bottom Gasket kit

3046  Cylinder Head gasket

3046  Rod / Pin Bushing

3046  Camshaft Bushing / Bearing

3046  Thrust Wahser / Bearing

3046  Water Pump

3046  Oil Pump

3046  Valve inlet / exhaust

3046  Valve Seat in / ex

3046  Valve Guide

3046  Valve Tapped , Push Rod, Valve Lock

3046  Valve Spring,  Seat

3046  Alternator

3046  Stater

3046  Turbocharger

3046  Oil Cooler Core, Cover

3046  Injector Sleeve

3046  Piston Cooling Nollze

3046  Rocker Arm

3046  Manifold In & Ex

3046  Flywheel

3046  Con rod Bolt. Head Bolt


The following popular Caterpillar  engine replacement parts also can be provided too.


D-Series:               D330  D333 D342 D343 D353

30-Series:              3013C  3014 3024 3024C 3044C 3044T 3046 3054 3054B 3054C 3054E 3056 3056B 3056E 3064 3066

31/32/33-Series:   3114 3116 3126 3176 3196  3204 3208 3304-DI 3304-PC 3306-DI 3306-PC

34/35-Series:        3406-O 3406E  3408 3408E  3412 3412E 3508 3512 3516

C-Series:               C1.1 C1.5  C2.2 C2.4 C2.6 C3.3 C3.4 C3.4B C4.2 C4.4-EI C4.4-DI C6.4

                             C6.6-EI C6.6-DI C7.1-DI C7.1-EI C7.2  C9.3 C9.3B

C-Series:               C7 C9 C-9 C10 C11 C12 C13 C15 C16  C18 C27 C32


CATERPILLAR PISTON -4.jpg
