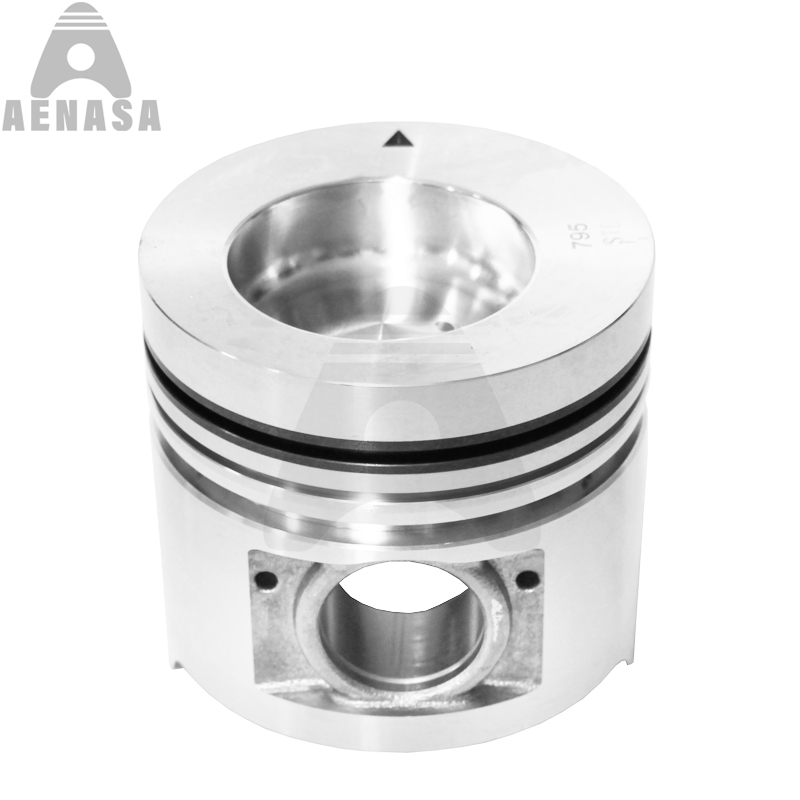

S6SD Engine Piston 32A17-05102

Basic Information
Model:S6S D
Diameter94.0 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:10-12 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Bore   Diameter:94.0 mm
No. of   Cyl: L 6
Total Length:90.3
Comp Height:55.3
Chamber Dia:55.0 mm
Ring Groove:2.5K+2.0+4.5
Pin Size:30*77


Material:AL108/AL109
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:32A17-05102
Oem No.32A17-05102


S6S-D Diesel Engine Spare Parts Piston Kit Set


Engine   Model:S6S
Engine Type:Diesel Engine
Bore Diamter:94.0 mm
Material:AL108/109
Surface Treatment:Sn
Alfin:Yes
Oil Gallery:No
Steel Pieces:Yes
Oem Part Number: 32A17-03100
Unit Weight(kg): 0.845 kg

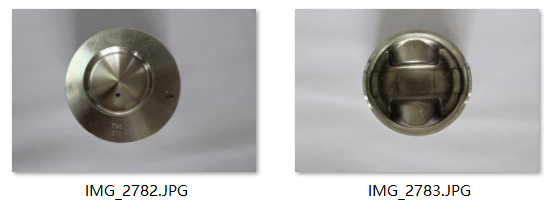

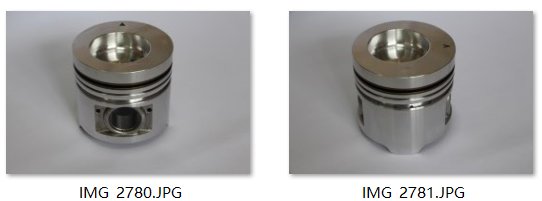

S6S DIESEL ENGINE SPARE PARTS PISTON KIT MORE PHOTOS




S6S PISTON CON ROD PARTS :


1.32A17-03100[6]  PISTON-STD     STD

2.32A17-03200[6]  PISTON-0.S 0.25     0.25MM O/S

3.32A17-03300[6]  PISTON-0.S 0.50     0.50MM O/S

4.32A17-02010[6]  RING SET-PISTON     STD

5.34417-02020[6]  RING SET-PISTON     0.25MM O/S

6.34417-02030[6]  RING SET-PISTON     0.50MM O/S

7.32A17-08300[6]  PIN-PISTON

8.F3202-03000[12]  RING-SNAP

9.32A19-00012[6]  ROD ASSY-CONNECTING

901.30619-10501[12]  NUT-CONNECTING ROD

904.32A19-00400[12]  BOLT-CONNECTING ROD

905.32A19-00501[6]  BUSHING-CON ROD

10.32B19-09011[1]  BEARING SET-C/ROD     STD

11.32B19-09021[1]  BEARING SET-C/ROD     0.25MM U/S

12.32B19-09031[1]  BEARING SET-C/ROD     0.50MM U/S

13.32B19-09041[1]  BEARING SET-C/ROD     0.75MM U/S


AE PISTON STRUCTURES:

AE PISTON STRUCTURE.jpg

S6S-DT DIESEL ENGINE SPARE PARTS LIST


S6S  Cylinder Block

S6S  Cylinder Head

S6S  Cylinder Liner

S6S  Crankshaft  &  Gear

S6S  Camshaft & Gear

S6S  Connecting Rod

S6S  Connecting Rod Bushing

S6S  Crankshaft Metal /Main Bearing

S6S  Con Rod Metal/ Con Rod Bearing

S6S  Piston & Pin & Lock Ring

S6S  Piston Ring Set

S6S  Overhaul Full Complete Gasket Kit Set

S6S  Head / Upper Gasket Kit

S6S  Block / Lower / Bottom Gasket kit

S6S  Cylinder Head gasket

S6S  Rod / Pin Bushing

S6S  Camshaft Bushing / Bearing

S6S  Thrust Wahser / Bearing

S6S  Water Pump

S6S  Oil Pump

S6S  Valve inlet / exhaust

S6S  Valve Seat in / ex

S6S  Valve Guide

S6S  Valve Tapped , Push Rod, Valve Lock

S6S  Valve Spring,  Seat

S6S  Alternator

S6S  Stater

S6S  Turbocharger

S6S  Oil Cooler Core, Cover

S6S  Injector Sleeve

S6S  Piston Cooling Nollze

S6S  Rocker Arm

S6S  Manifold In & Ex

S6S  Flywheel

S6S  Con rod Bolt. Head Bolt


Mitsubishi Diesel Engine Piston Kit




The following popular Mitsubishi  engine replacement parts also can be provided too.


1:     L2E L3E K3D K4D K3E K4E K3F K4F K3M K4M K4N  K4Q

2:     S2E S3E S4E S4E1 S4E2 S6E S6E2 S3F S4F S4K-O S4K-N S6K S6KT

3:     S3L S3L2 S4L S3Q2 S4Q S4Q2 S4S-O S4S-N S6S S6S-D

4:     4DQ5 4DQ7 4D55 4D56T 4D56U-16V 4D65 4D68 4DR5 4DR51 6DR5 6DR51 4DR7

5:     6DS1 6DS3  6DS5 6DS7-1 6DS7  6DB

6:     4M40 4M40T 4M41 4M41T 4M42 4M50T 4M51 4M51T 6M60T 6M61 8M20 8M21 8M22

7:     4D30 4D31 4D31T 4D32 4D33 4D34 4D34T 4D35 4D35T 4D36 4D37

8:     6D31 6D31T 6D34 6D34T 6D10 6D11 6D14 6D14T 6D14-2AT/3AT 6D15 6D15T 6D15-3AT 6D16 6D16T 6D16-2AT

        6D16-3AT  6D17-12V 6D17T-24V

9:     6D20 6D22 6D22T 6D24 6D24T 6D24T-3V 6D40 6D40T

10:     8DC2 8DC4 8DC6 8DC8 8DC81 8DC82 8DC9 8DC9T 8DC91 8DC91T 8DC10 8DC11

11:     S6A S8A S12A S6A2 S6A3 S12A2 S12A3 S6B S6B2 S6B3 S6N S6R S12R S16R S6R2 S6R2F

12:     NM75 NM90 4N13 4HK 4N14 4P10
