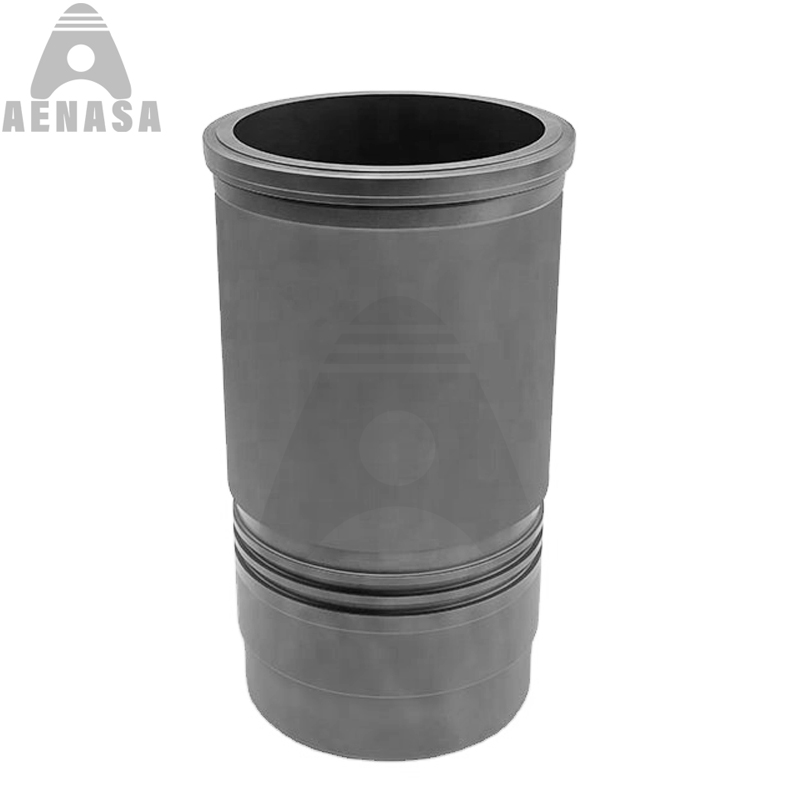

QSK45 QSK60 Cylinder Liner Seelve 4085917 4089143

Basic Information
Model:QSK45  QSK60
Diameter158.75 mm
Brand:AEENGINEPARTS
Certification:ISO9001/TS16949
Place of   Origin:GuangDong, China
MOQ:10 Sets
Price:50 USD/PCS
Packaging   Details:Carton/Wooden Box/As   Customer Requirements
Delivery Time:3-5 days for stocks,   30-45 days for production
Payment Terms:T/T; Western Union,   Paypal
Supply   Ability:5000PCS/Month
Warranty:10,000   Km for Truck, 1 Year for excavator tractor forklift engine
Quality Test:Provided


Cummins QSK45  QSK60 Engine Parts Cylinder Liner Sleeve O-Ring


Inside   Bore:158.75 mm
Bottom   Outside:177.2 mm
Total Length:307.0 mm
Top Outside:189.74 mm
Flange Depth:13.35+1.08 mm
Surface Treatment:Nitrided
FF/SF:FF
Material:Boron alloyed  cast iron
Package:6 PCS/CTN
Warranty:1-3 years
Stock:Yes
ShippingAir/Sea/Land
Part No:4085917
Oem No.4089143


Cummins QSK45  QSK60 Diesel Engine Spare Parts Cylinder Liner Sleeve


Engine  Model:QSK45  QSK60
Bore Diamter:158.75 mm
Oem Part Number: 4085917 4089143
Unit Weight(kg): 10.6 Kg
Engine Type:Diesel Engine
Liner TypeWet / Dry / Steel / Cast Iron
Material:Boron alloyed cast iron / Steel
Finished:F/F; S/F
Surface Treatment:Chrome/Phosphated/Nitrided/Induction   Hardening/ High Frequency Quenching / isothermal quenching/oxidation/ plasma   BSI composite CVD /thermal spraying
Anilox Technology:With platform honing anilox,   (spiral) sliding honing anilox, laser honing anilox, brush honing, honing

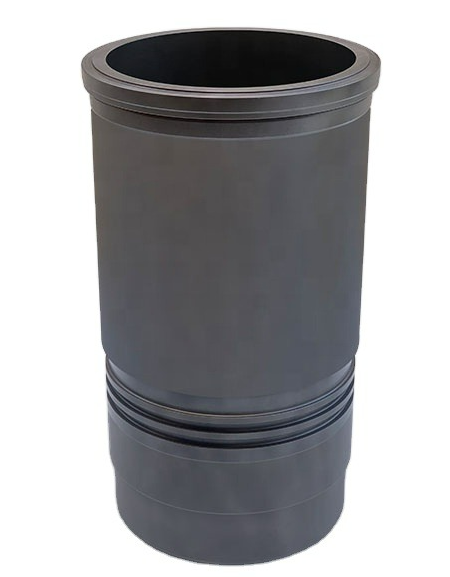

More Photos Of QSK45  QSK60 Cylinder Liner Sleeve Kit




We also can provide the other engine repair overhaul  parts for QSK45 QSK60 Diesel Engine:


QSK45    Cylinder Block

QSK45    Cylinder Head

QSK45    Cylinder Liner

QSK45    Crankshaft  &  Gear

QSK45    Camshaft & Gear

QSK45    Connecting Rod

QSK45    Connecting Rod Bushing

QSK45    Crankshaft Metal /Main Bearing

QSK45    Con Rod Metal/ Con Rod Bearing

QSK45    Piston & Pin & Lock Ring

QSK45    Piston Ring Set

QSK45    Overhaul Full Complete Gasket Kit Set

QSK45    Head / Upper Gasket Kit

QSK45    Block / Lower / Bottom Gasket kit

QSK45    Cylinder Head gasket

QSK45    Rod / Pin Bushing

QSK45    Camshaft Bushing / Bearing

QSK45    Thrust Wahser / Bearing

QSK45    Water Pump

QSK45    Oil Pump

QSK45    Valve inlet / exhaust

QSK45    Valve Seat in / ex

QSK45    Valve Guide

QSK45    Valve Tapped , Push Rod, Valve Lock

QSK45    Valve Spring,  Seat

QSK45    Alternator

QSK45    Stater

QSK45    Turbocharger

QSK45    Oil Cooler Core, Cover

QSK45    Injector Sleeve

QSK45    Piston Cooling Nollze

QSK45    Rocker Arm

QSK45    Manifold In & Ex

QSK45    Flywheel

QSK45    Con rod Bolt. Head Bolt


QSK60    Cylinder Block

QSK60    Cylinder Head

QSK60    Cylinder Liner

QSK60    Crankshaft  &  Gear

QSK60    Camshaft & Gear

QSK60    Connecting Rod

QSK60    Connecting Rod Bushing

QSK60    Crankshaft Metal /Main Bearing

QSK60    Con Rod Metal/ Con Rod Bearing

QSK60    Piston & Pin & Lock Ring

QSK60    Piston Ring Set

QSK60    Overhaul Full Complete Gasket Kit Set

QSK60    Head / Upper Gasket Kit

QSK60    Block / Lower / Bottom Gasket kit

QSK60    Cylinder Head gasket

QSK60    Rod / Pin Bushing

QSK60    Camshaft Bushing / Bearing

QSK60    Thrust Wahser / Bearing

QSK60    Water Pump

QSK60    Oil Pump

QSK60    Valve inlet / exhaust

QSK60    Valve Seat in / ex

QSK60    Valve Guide

QSK60    Valve Tapped , Push Rod, Valve Lock

QSK60    Valve Spring,  Seat

QSK60    Alternator

QSK60    Stater

QSK60    Turbocharger

QSK60    Oil Cooler Core, Cover

QSK60    Injector Sleeve

QSK60    Piston Cooling Nollze

QSK60    Rocker Arm

QSK60    Manifold In & Ex

QSK60    Flywheel

QSK60    Con rod Bolt. Head Bolt


The following popular Cummins engine replacement parts also can be provided too.


1:   A1400 A1700 A2000 A2300 ISF2.8 ISF3.8

2:   B3.3 QSB3.3 QSB4.5 QSB5.9 QSB6.7

3:   4BT 4BT3.9 6BT 6BT5.9 6CT 6CT8.3

4:   ISBE 4ISBe 6ISBe QSC ISC8.3

5:   L375 T375 L375 ISL QSL ISLe 6LTAA9.3 QSL9.3 ISL9.5

6:   L10 LT10 M11 ISM11 QSM11

7:   NH220 NH250 NT855 NTA855 N14 QSX15 ISX15

8:   K19 KT19 KTA19 KT38 KTA38  KT50 KTA50 VT28

9:   QSK19 QSK23 QSK45 QSK60 QSK78 QSK95 QST30





FAQ


Q1: Who are we?

A1: We are based in Guangdong, China, start from 2002, Export to Europe(28%), North America(20%),South America(20.00%),,

       Africa(12%), Asia(10.00%), Mid East(10%). There are total about 20-50 people in our Guangzhou office.


Q2: How can we guarantee quality?

A2: Always a pre-production sample before mass production; Always final Inspection before shipment.


Q3. What can you buy from us?

A3: Piston Kit, Piston Ring Set, Cylinder Liner/Sleeve, Main & Rod Bearing, Full Gasket kit, Engine Block, Head, Con Rod Etc.


Q4. Why should you buy from us not from other suppliers?

A4: AEENGINEPARTS LIMITED was specialized in diesel engine parts more than 20 year. we have a good cooperation with              Chinese OE manufacture

      We have many worldwide customers, such as, Costex, KMP, IPD, RFENGINE,MAXIFORCE,ITR...


Q5. What services can we provide?

A5: Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery;

      Accepted Payment Currency:USD,CNY;RUBLES

      Accepted Payment Ty: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;

     Language Spoken:English,Chinese,Spanish,Portuguese,Russian
